 MMS6110Directionforuse

 Configuration  Page8



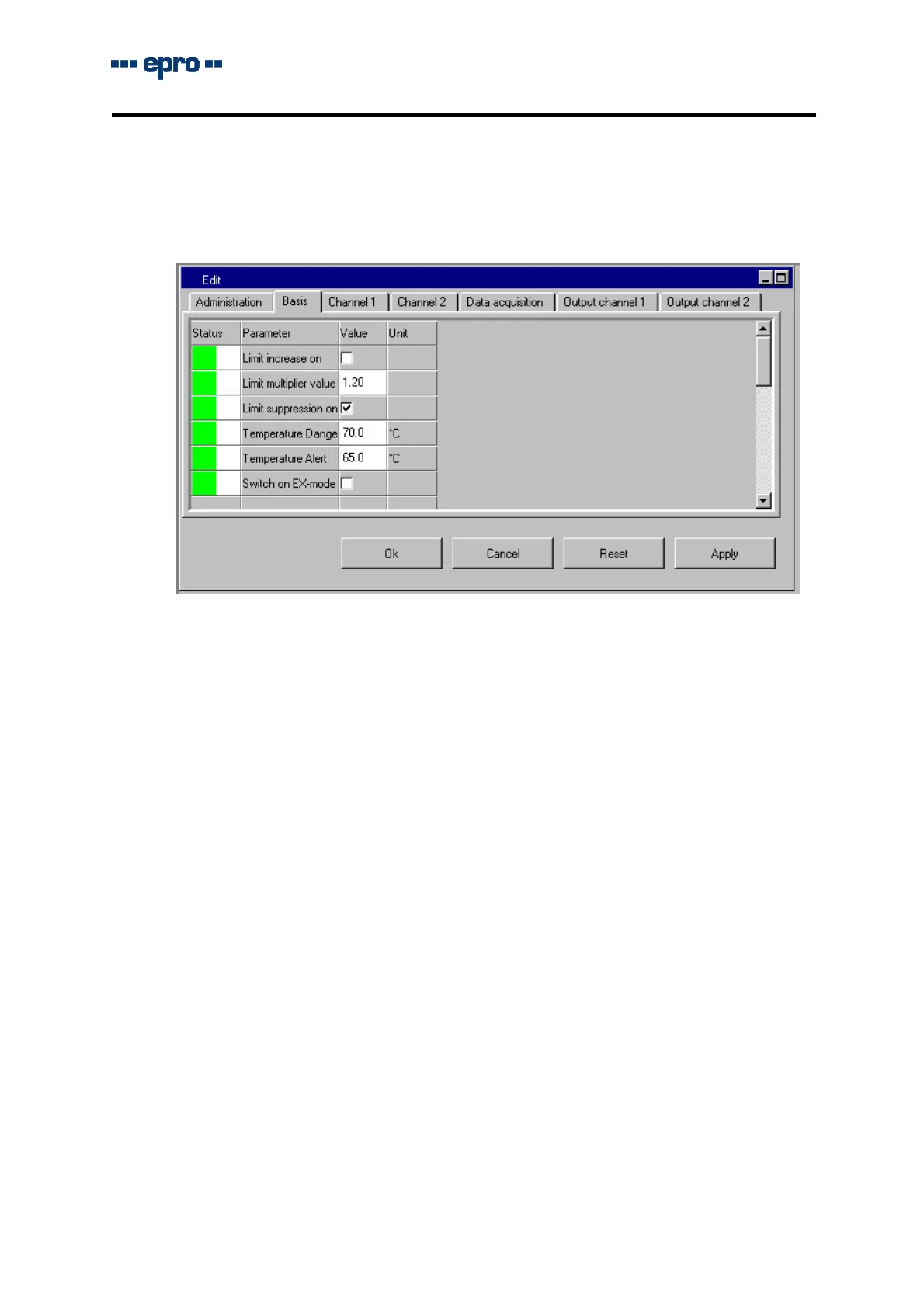

2.3.2 PropertypageBasis

SelectionofpropertypageBasisopensthemenuconcerningthedeviceparameters.Ac-

cessauthorizationSERVICEpermitsactivationofallfunctions.AuthorizationOPERATION

onlypermitsaccesstofunctionslimitincreaseandlimitsuppression.



ParameterswitchLimitincreaseon

Toactivatefunctionlimitmultiplier,theparameterswitchmustbeactivatedbyclick-

ingtheparameterswitchwiththemouseandthenbyenteringamultiplicationfactorintothe

fieldbelow..

Thisfunctionisusefulforincreasingthealarmlimitse.g.forrun-uporrun-downofthetur-

bine.

EntryfieldLimitmultipliervalue

Thelimitvaluemultiplierincreasesthevaluesofthealarmlimitsbyafreelyselectablefactor

provided,binaryinput"FactorX"(d18)isactivated(i.e.settoLOW).

Inthisfieldamultiplicationfactormustbeentered(adecimalpointmustbeusedinsteadofa

comma)withintherangeof1.00to5.00.

ParameterswitchLimitsuppressionon

Onactivationofthisfunctionthewatchingoflimitvaluesisdisabledaslongasstatus"Chan-

nelClear"isnotOK.Thiscouldhappen,iftheinputsignalofachannelexceedstheupper

limitofthedefinedoperatingrangeplus0.5V(refertosection2.3.3propertypage"channel")

orfallsbelowthelowerlimitminus0.5V.Allotherconditions(monitornotOK,delaytimeetc.)

whichcouldleadtothedeactivationofalarmsremainuntouchedofthisbutton.(refertosec-

tion4.5Functiondescription–conditionmonitoring).

"Limitvaluessuppressed“meansthatthealarmoutputsaresettotheirinitialstate(i.e.no

alarm).

Forsinglechannelmeasurementandcalculationofcharacteristicalvalues,theactivationof

thealarmsuppressiondependsonthestatusoftherelevantchannel.Ifthecharacteristical
