 MMS6110Directionforuse
 Visualization  Page29





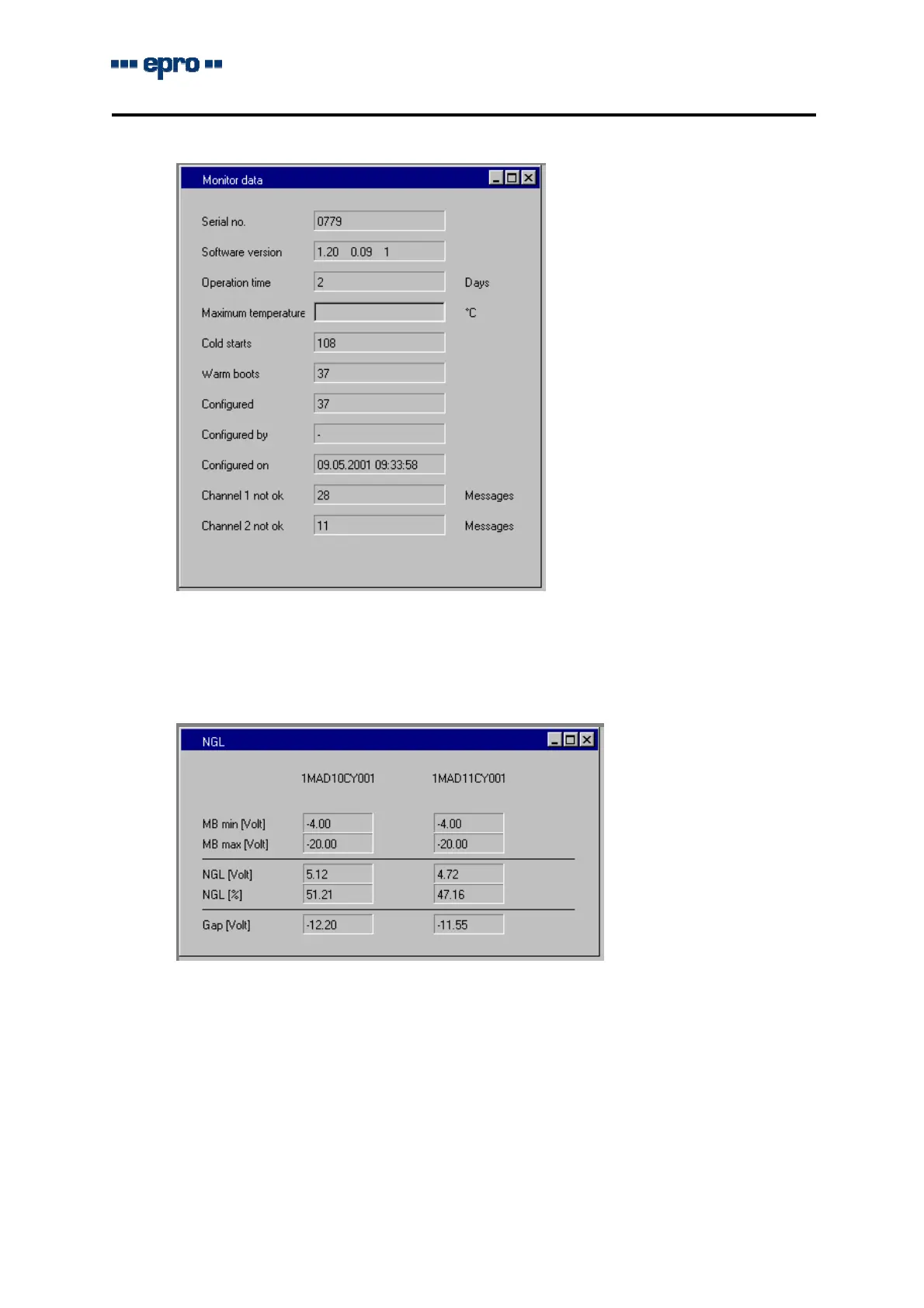

3.9 DisplayNGL
Dialog"NGL"isopenedviamenupoint"DisplayNGL".Itshowsthestaticpartsofthe
inputsignals.

FieldsMBmin[Volt]
Indicatesthelowerlimitofthemeasuringchain'soperatingrange.
FieldsMBmax[Volt]
Indicatestheupperlimitofthemeasuringchain'soperatingrange(sensorwithconverter).
Theoperatingrangelimitshavebeendefinedinpropertypage„Channel“.
