 MMS6110Directionforuse
 Visualization  Page22



3. VISUALIZATION,MENUDISPLAY
Displaypanelsonlycanbeopened,ifthecommunicationwithamodulehasbeenestab-
lished(statusonline).Itisrecommendedfirsttodownloadtheconfiguration,i.e.toexecute
menupointFile>receive.Assoonasdisplaypanelsareopened,themeasuringdata
arecontinuouslyrequestedfromthemoduleandrefreshedinthedisplay.

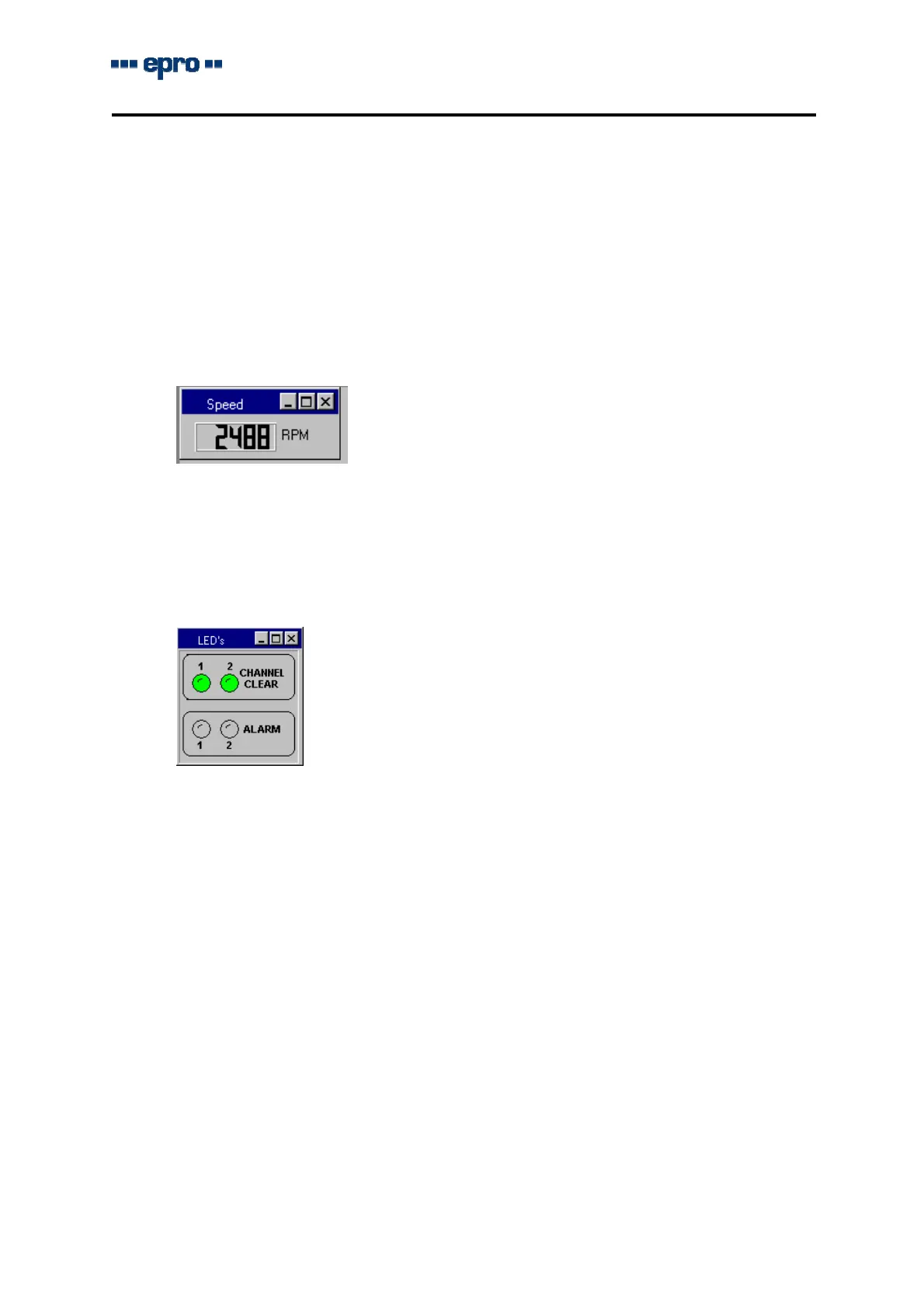

3.1 Speed
DialogSpeedisopenedviamenupointDisplay.

FieldRPMshowstheshaftspeedifkeypulsesareavailableatinputd22andifthecontrol
functioninpropertypagedataacquisitionwassettoSpeed.
3.2 MonitorLEDs
ThisdialogcanbeactivatedviamenuDisplaymonitor.>LEDs.

Twocircles(LEDs)intheupperfieldshowthechannelstatesChannelClear.Greencir-
clesindicatethatthechannelconditionsareo.k.,theLEDsaresteadilyswitchedon.Thecir-
clecolorwillchangetograyifthechannelconditionisnotgood,i.etheChannelClearLED
onthemonitorfrontisofforflashes.
Thetwolowercircles(LEDs)infieldalarmshowthealarmstates.
graycolor – noalarm
yellowcolor – Pre-alarm(Alert)
redcolor – Mainalarm(Danger)
3.3 Characteristicalvariables
TherelevantdialogisopenedviamenupointDisplay>characteristicalvari-
ablesdependingonthechosenoperatingmode.
