 MMS6110Directionforuse
 Visualization  Page23



 

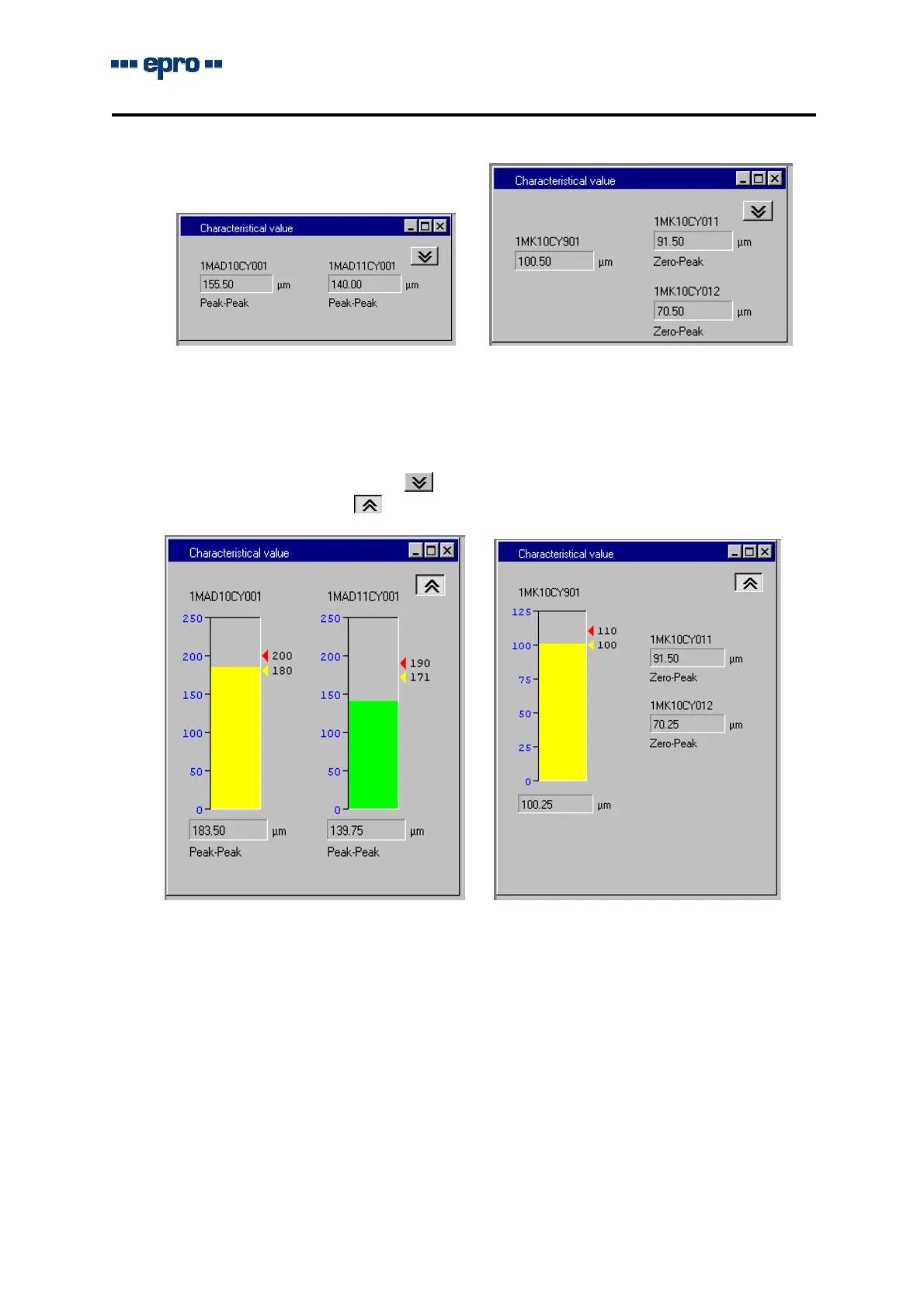

InthedualchannelmodedisplaypanelCharacteristicalvariablesshowsthesin-
gleschannelresults(pictureleft).AtthemodesS
max
andS
ppmax
withcombinedmeasuring
results(rightillustration),thecalculatedcharacteristicalvariableisshownleftandtheactual
valuesofthevibrationamplitudes(inµm)oftheindividualchannelsontherightsideofthe
panel.TheaccordingKKSdescriptionisassignedtothechannels.
Withamouseclickonthebutton
theindicationwillbeenlarged–anothermouseclick
onthebuttonnowvisible
reducesthepanelsizeagain.
 
DisplaypanelCharacteristicalvaluesshowsadditionallytheactualresultsofthe
singlecharacteristicalvaluesresp.thevalueoftheoutputchannelinformofabardiagram.
BesidethebartherelevantactuallimitvaluesareshownwithayellowmarkforALERTand
witharedmarkforDANGER.
IffunctionLimitincreasehasbeenactivated(inputd18=low,parameterswitchLimit
increaseononpropertypageBasishasbeenactivatedandamultiplicationfactoren-
tered,refertosection2.3.2.),thelimitvaluesincreasedbythisfactorwillbeindicated.
Characteristicalvariableswillbeshownincoloredinthebardiagram.Agreenbarmeans,
measurementokandnolimitexceeding,ayellowbarmeansALERTalarmandaredbar
meansDANGERalarm.Ifthebarisshowninbluecolor,the"ChannelClear"statusisnot
givenforthismodule(channelerror,overloadordelaytimestillactive).
