 MMS6110Directionforuse
 Configuration  Page15



twoanglesdiffersbymorethan5°fromthenominalvalue90°,theentryfieldsforthe
mountingangleswillbeshownredaswarningindication.
ListEvaluation
Thisfieldisonlyavailableatthedualchannelmode.
Thisfieldshowstheactualevaluationofthecharacteristicalvalueresp.thedesiredevalua-
tionofthelistmaybechosenandenteredintothisfield.Twomethodsarepossible:
Peak-to-peak: Characteristicalvariableproportionaltothepeak-peakvalue
(S
pp
=S
peak-peak
)ofthemeasuringquantity(vibrationamplitude)
Zero-peak:  Characteristicalvariableproportionaltozero–peakvalue
(S
op
=S
0-peak
)ofthemeasuringquantity(vibrationamplitude)

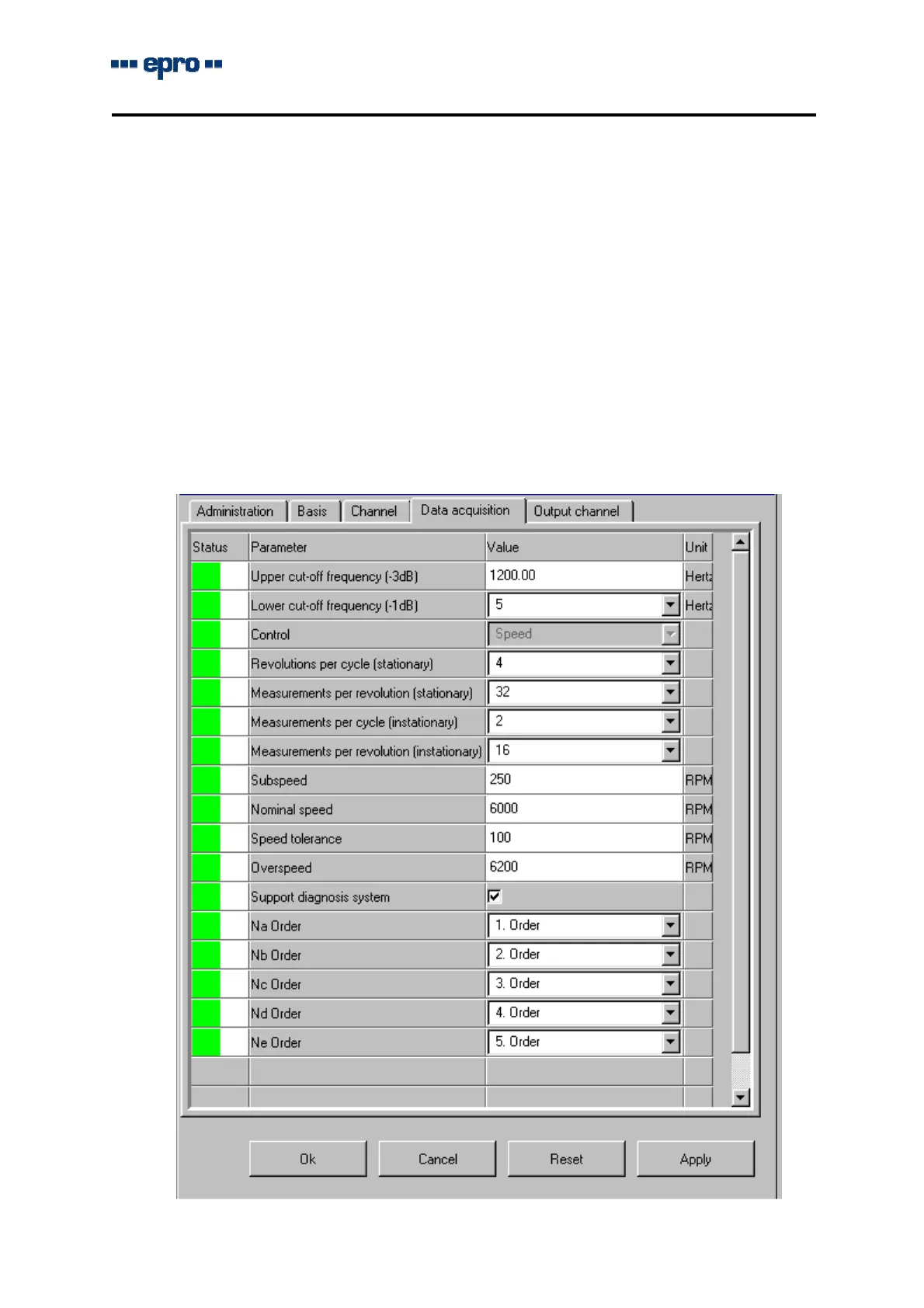

2.3.4 PropertypageDataAcquisition

