epro MMS 6000 - Monitor type PreDefined; Edit monitor configuration; Property page Administration

 MMS6110Directionforuse
 Configuration  Page6



S
PP
max CalculationandoutputofthegreatervibrationamplitudeS
pp
maxaccord-
ingtoDIN45670,characteristicalvalueBormax(x,y)accordingtoAPI
670.Thecharacteristicalvalue,outputandcheckedonlimitexceedings,
isformedbythegreatestofthetwomeasuringvaluesofchannels1or2
inXandY-measuringdirection.
HavingconfirmedthechoicebyclickingtheOK-button,theprogramreturnstothemain
menu.Thenewlydefinedmonitormustthenbeconfiguredinmenu"File>Edit".
2.2 MonitortypePreDefined

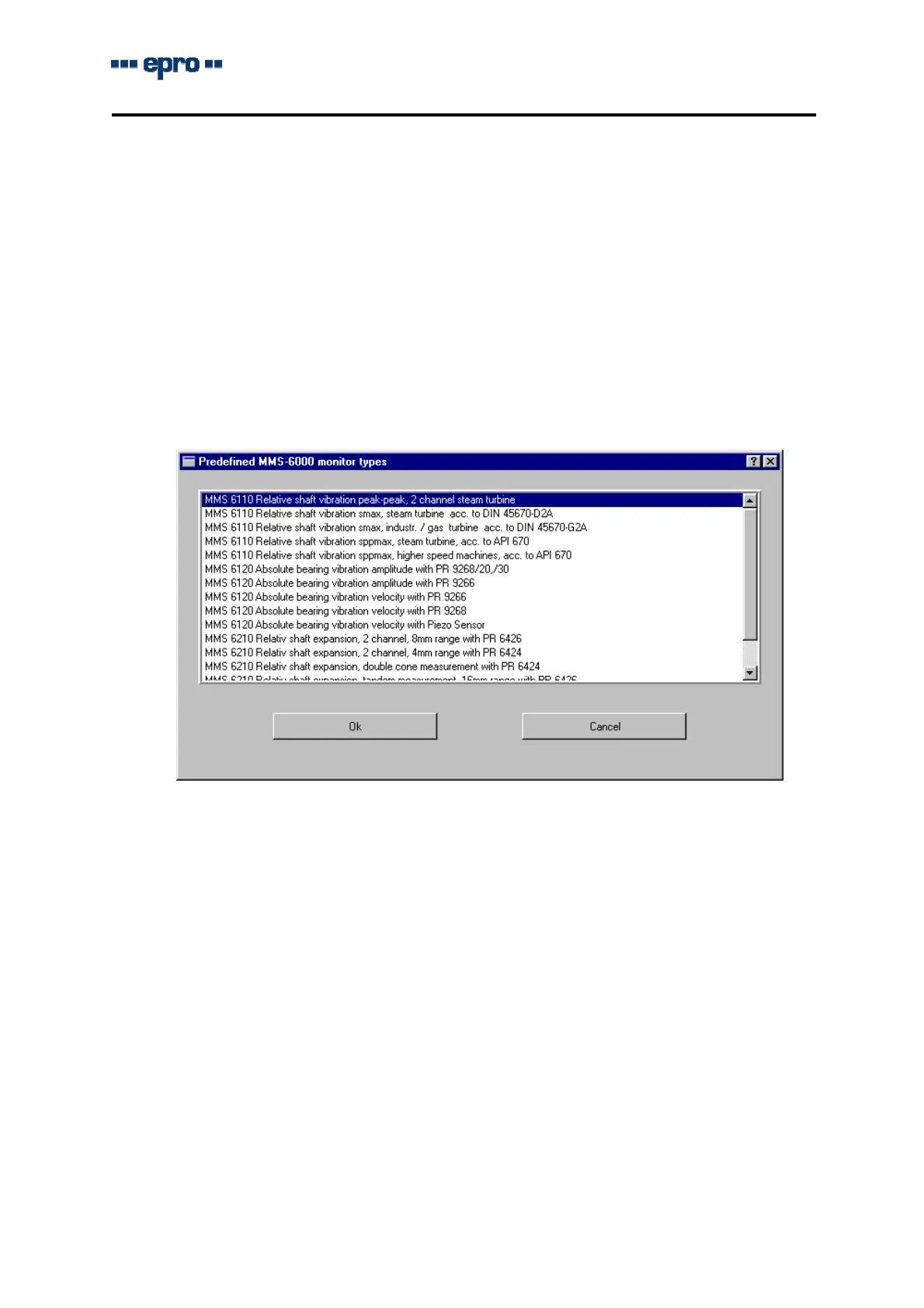

MenupointFile>PreDefinedopensdialogwindowPreDefinedMMS6000Moni-
torTypes.

Thiswindowshowspredefinedconfigurationsfordifferentmonitortypesandtheiroperating
modesforvariousapplications.Afterselectionofthemonitortypeandconfirmationbyclick-
ingtheOKbutton,theconfigurationisstoredinthememory.
Inanycasethedeviceparametersmustbeadaptedtotheactualapplicationinmenu
File>Editandthechanneldesignationsentered.
2.3 Editmonitorconfiguration
MenupointEditopensadialogwindowwithseveralpropertypagesforsettingdevicepa-
rameters.
2.3.1 Propertypage Administration
InpropertypageAdministrationthegeneraldata,validfortheactualmonitortypeare
shown.
