 MMS6110Directionforuse
 Visualization  Page26





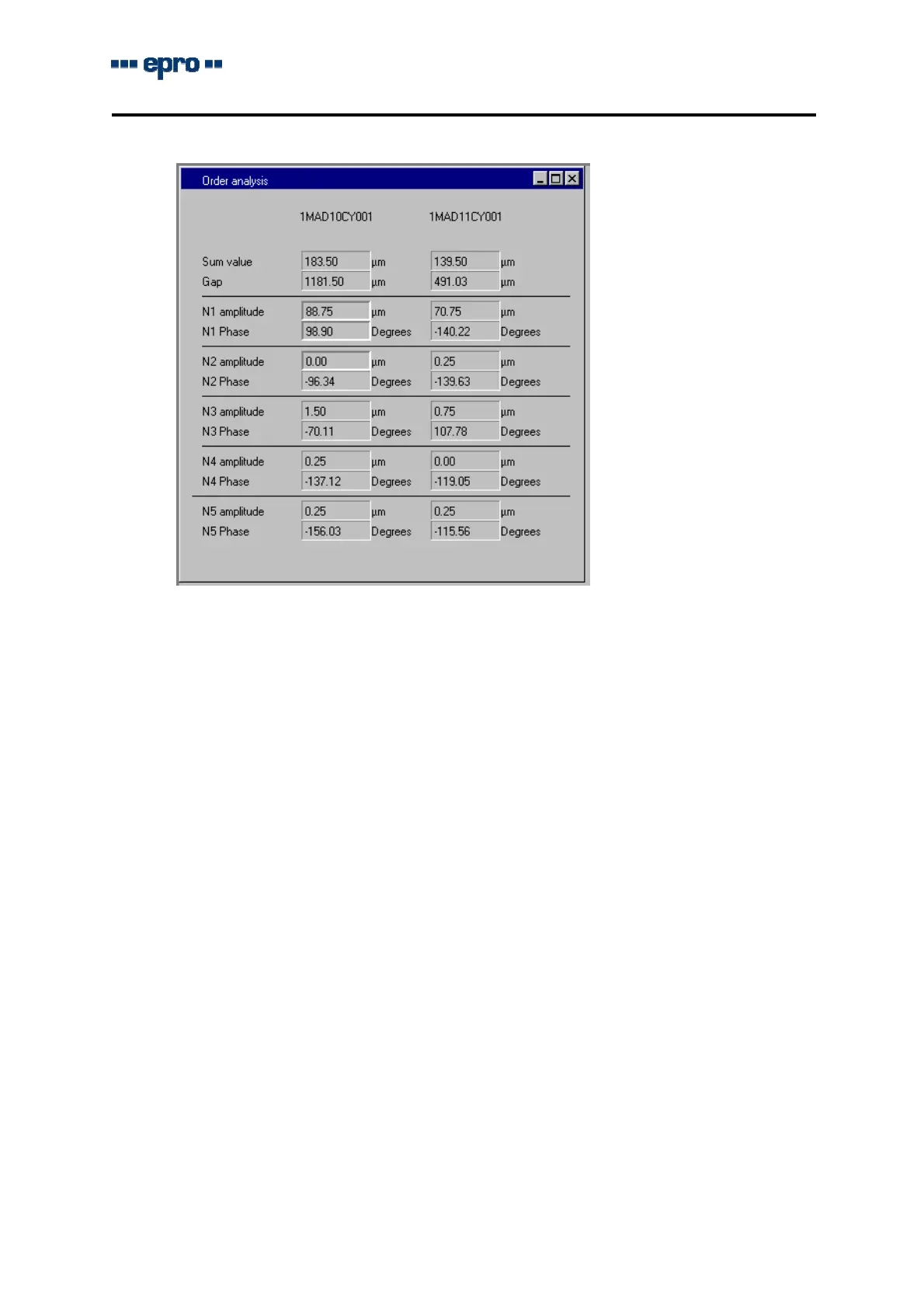

Fivegroupswithmeasuringresultsforfiveordernumbersindicateamplitudes(NnAmpli-
tude)andrelativephases(NnPhase)foreachofbothchannels.Selectionoftheorder
numbersismadeonpropertypageDataacquisition.

Thevaluesoftherelativephasearesuitableforlongtermmonitoringorobservationon
changesbutwithoutfurtheractiontheyarenotsuitableforevaluatinge.g.theactual
phaseforbalancingactivities.

3.6 Run-up/Run-down
Thisdisplaypanelcanonlybeloadedwhenarun-up/run-downdatasetisstored.Arun-up
willbestoredifthelowerspeedlimit,asdefinedinpropertypageDataacquisition,has
beenexceededand(withouttimelimit)thetolerancelimitofthenominalspeed,too.Fora
run-downthelimitsmustbeunderruninthereverseorder.Onlythelastrun-up/run-downcan
bedisplayed.
