pageisavailable,sincetheoutputsrefertojustonecharacteristicalvalue.Forthedualchan-
nelmodeitisnecessarytoconfiguretheparametersfortwoseparateoutputchannels.

AccessauthorizationOPERATIONpermitsactivationordeactivationofthelimitvaluesuper-
visionandmodificationofalarmlimitsALERTandDANGER.AccessauthorizationSERVICE
permitsmodificationofallparameters.

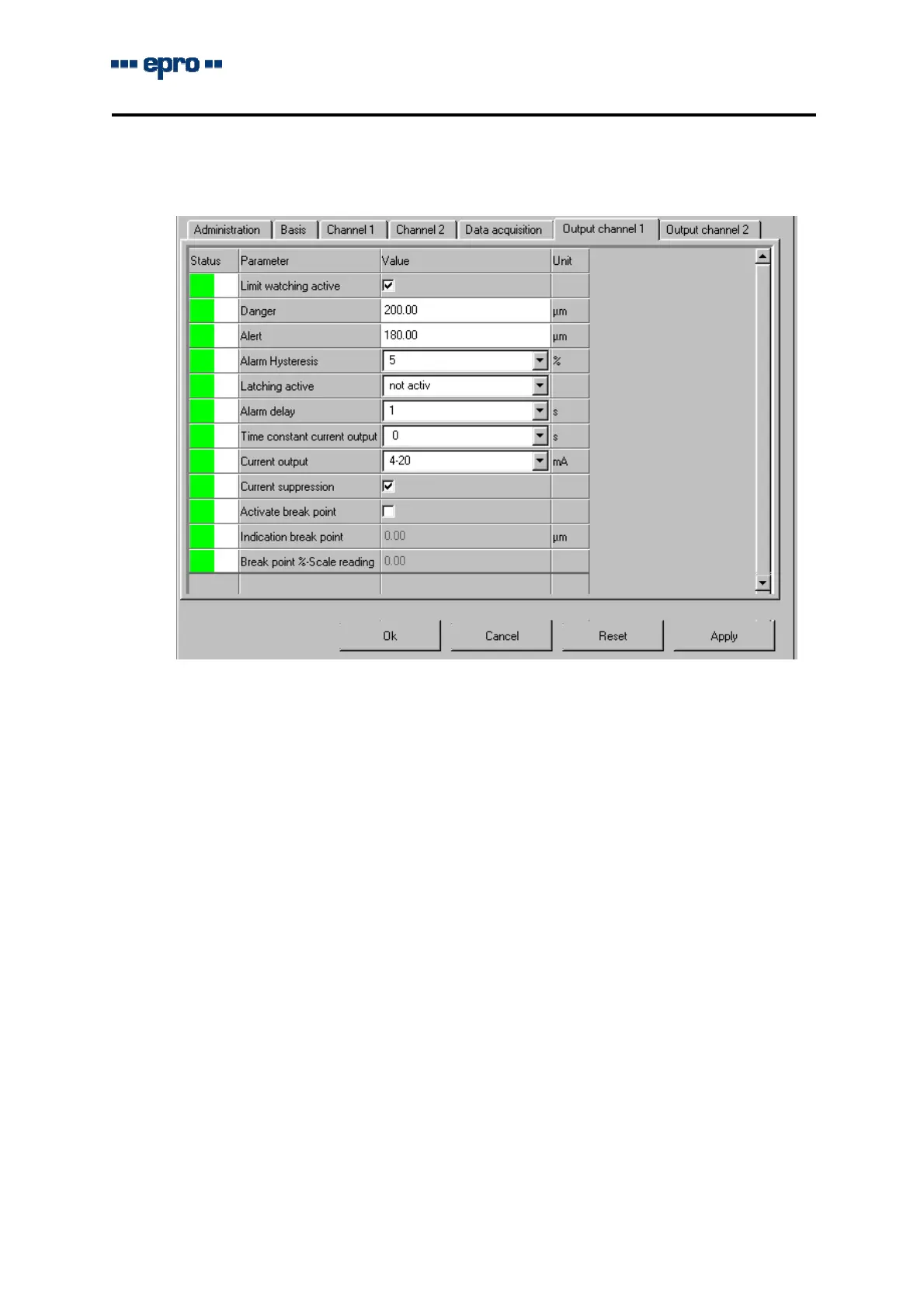

ParameterswitchLimitwatchingactive
Withthisswitchthesupervisionofalarmlimitsisactivated,therelevantlimitvaluescanbe
definedinentryfieldsAlertandDanger.However,incaseofdeactivatingthealarms,the
alarmoutputsaresettotheirdefaultstatesbatthealarmlimitsarestillindicatedinmenu
Displaycharacteristicalvalues.
EntryfieldsDangerandAlert
Thesefieldsservetheinputofalarmlimitsforthepre-alarmAlertandmainalarmDanger.
Thedirectionofactionofthealarmsisincreasing,i.e.thealarmwillbetriggeredifanalarm
limitisexceeded.Thepermissiblerangeforthealarmlimitsis5...100%ofthemeasuring
range,inanycasethevaluefortheAlertalarmlimitmustbesmallerthanthatfortheDan-
geralarmlimit.
ListfieldAlarmHysteresis
Thehysteresisvaluemaybesettoanyvalueof1%....20%ofthemeasuringrange.Thehys-
teresisdefineshowfarthecharacteristicalvaluemustfallbelowthelimitvalueagaintoreset
thealarm.
