ePropulsion NAVY Evo - Page 20

18

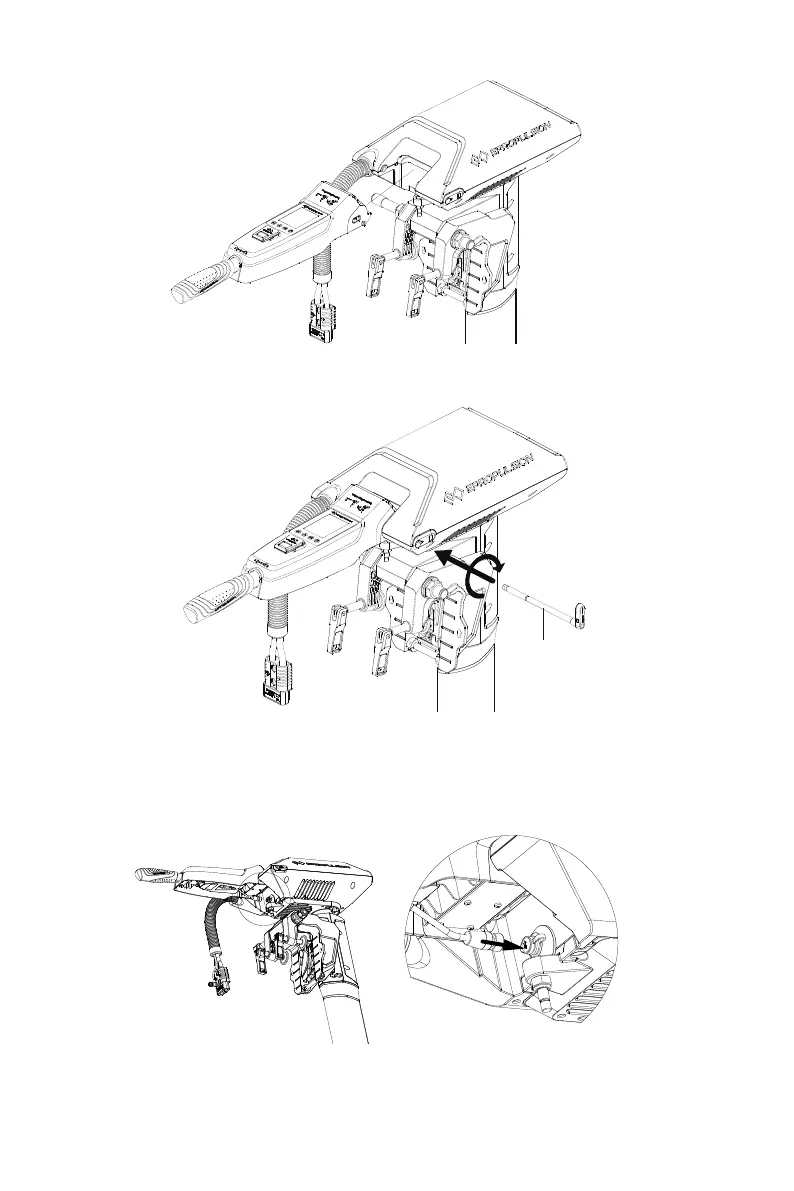

2. Install the tiller to the machine.
Figure 3-5
3. Insert the handle shaft into the hole to the end and lock it clockwise.
Figure 3-6
4. Connect the communication cable of Evo Tiller to the communication port of the
NAVY Evo.
Figure 3-7
Handle Shaft
