Only use the same batteries (same model, same capacity, same age and same
manufacturer) in series or in parallel configuration. Variations in the batteries
will cause damage to them.
2.2 Selecting and Mounting the Propeller
For NAVY 3.0 Evo, the propeller of NAVY 3.0 Evo is attached on the motor before de-
livery. If necessary to replace a propeller, please follow the steps below to replace and
mount the propeller.

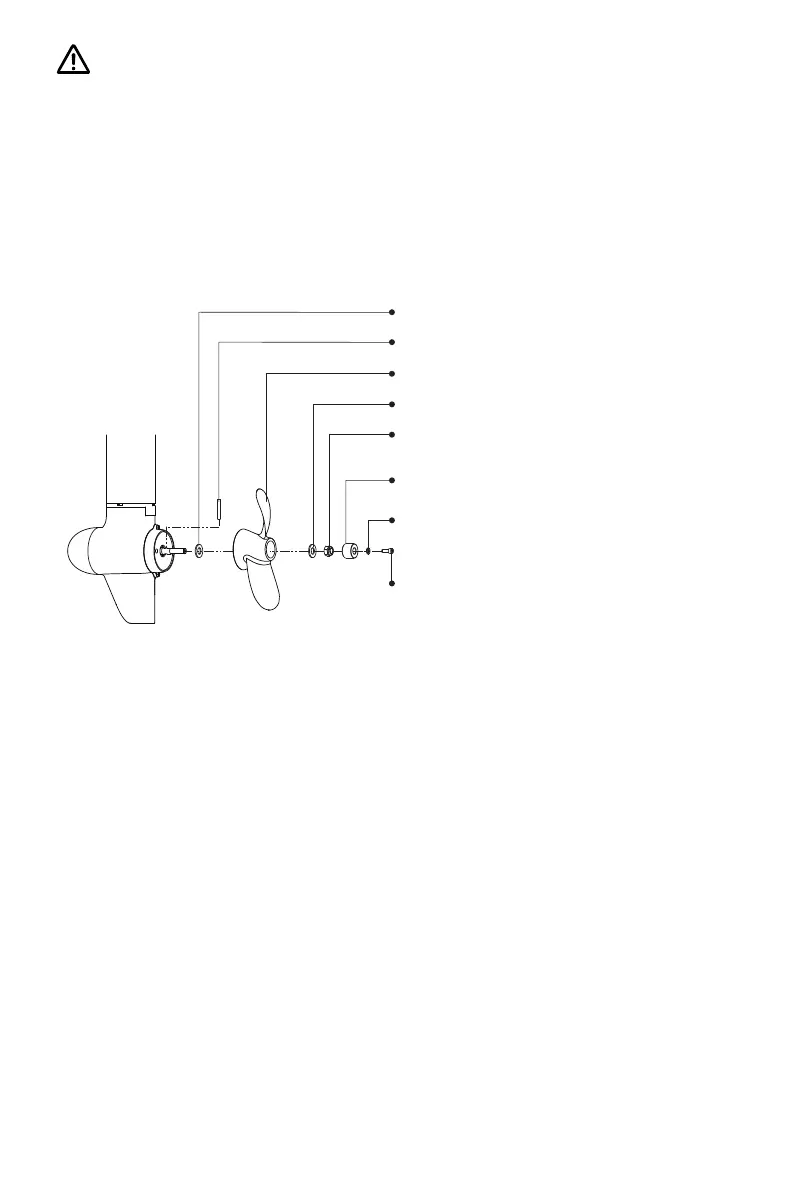

Figure 2-1
For NAVY 6.0 Evo, there are two types of propellers are available. Users can select a
proper propeller based on different conditions. For a heavily loaded boat with large
thrust, a low pitch propeller is more appropriate. Inversely, for a lightly loaded boat
with a fast running speed, a high pitch one is preferable.
In the delivery package, there are two sets of propellers, including a low-pitch propel-
ler and a high-pitch propeller. The low-pitch propeller with a larger diameter generates
larger thrust at low speed, while the high-pitch propeller generates proper thrust to
propel boats at high speed. It is recommended to use the high-pitch propeller if the
boat speed can reach 15km/h or above, as the propeller can’t work at full perfor-
mance at low speed. Figure 2-1 displays how to mount a propeller correctly.
Step3: Attach the propeller.
Step4: Attach the Φ12 washer.
Step5: Tighten the nut with 19mm (3/4 inch)
socket wrench.
Step6: Attach the Anode.
Step1: Attach the Φ12 washer.
Step8: Screw and tighten the nut
with M6 hexagon wrench.
Step2: Fix the pin to the hole of shaft.
Step7: Attach the Φ6 washer.
