The main switch and power cable are connected by the xing screws that may
loosen after long-time use. Loosen screws will lead to poor contact, which may
result in overcurrent or other errors. If this problem is discovered, open the back
cover of the switch, and tighten the screws inside.
4.2 Connecting E Series Batteries
When using E Series Batteries, make sure the main switch is off before connection.
1. First connect two batteries in parallel by a communication cable and two battery
bridging cables.
2. Connect the main switch cable to the E Series Battery.
3. Connect the main switch cable with the power cable from the outboard.
4. Connect NAVY Evo outboard motor to the E Series Battery with a communication
cable.
It's recommended to connect the communication cable to obtain accurate bat-
tery information.

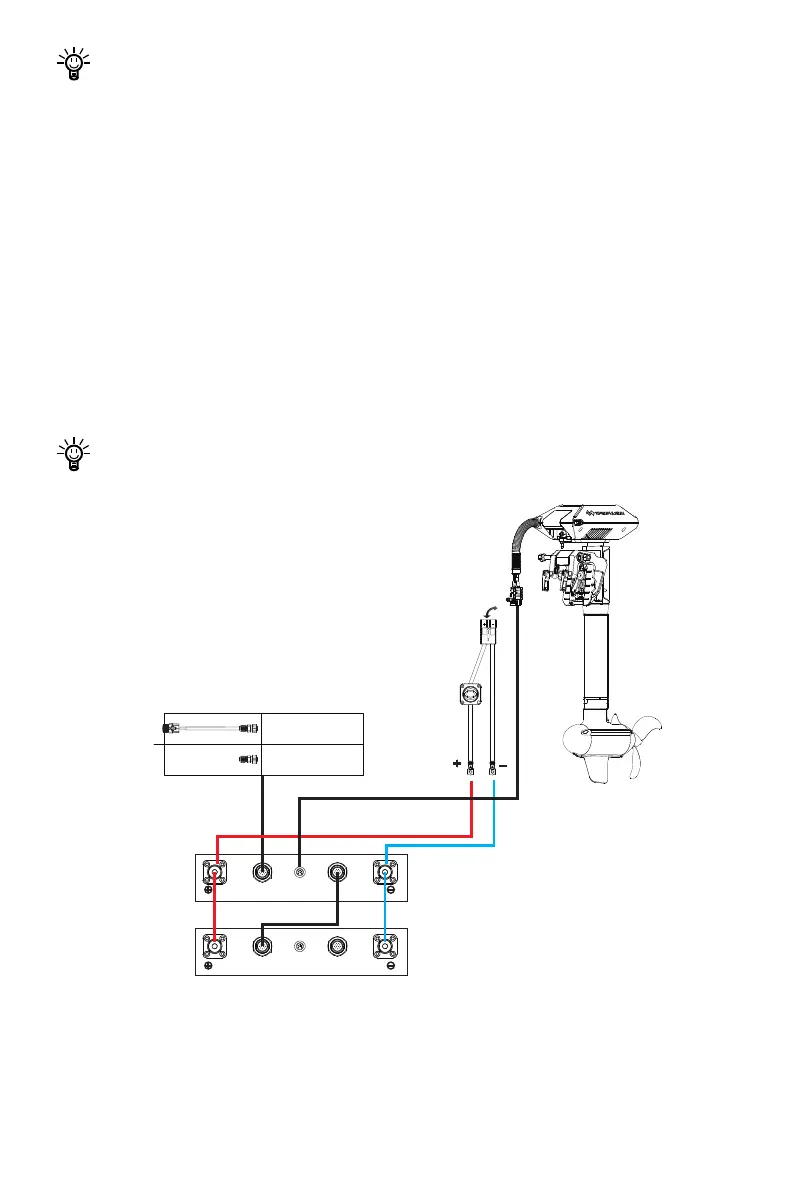

Figure 4-2
CAN-IN CAN-OUTMOTOR
CAN-IN CAN-OUTMOTOR
Remote Switch
Communication
Terminator
E Battery
E Battery
E Battery
communication cable
