EPSON Stylus COLOR 680/777/777i Revision B
Disassembly and Assembly Disassembly 74
.

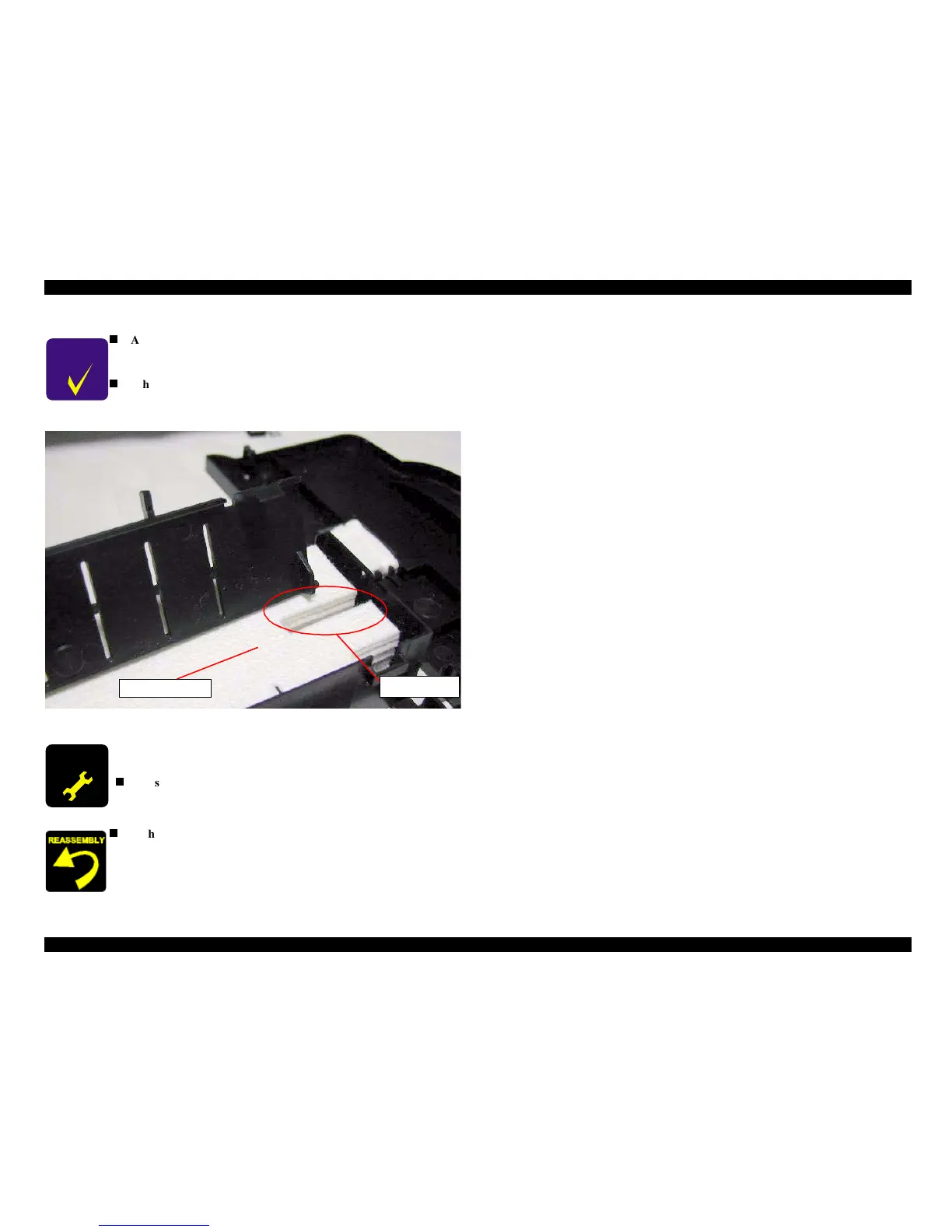

Figure 4-14. Drain ink tube setting position
C H E C K
P O I N T
n
After assembling the Waste drain ink pad unit, be sure to set the
some cables in the cable hook in the Waste drain ink pad unit.
Refer to the Figure 4-13.
n
When assembling the Waste drain ink pad unit, be sure to set the
tip of the waste ink tube in the suitable position of the Waste
drain ink pad. Refer to the Figure 4-14.
A D J U S T M E N T
R E Q U I R E D
WhentheWastedraininkpadisreplacedwithanewone,
following service item is required.
n
Waste drain ink counter reset operation.
n
Tightening torque for screw
• C.B.P-TITE 3x8 screw for Waste drain ink pad unit : 9+/1 kgf.cm
Waste drain ink pad
Ink tube
