EPSON Stylus COLOR 680/777/777i Revision B
Disassembly and Assembly Disassembly 89
4.2.11 PF motor removal
1. Remove the Housing from the printer. (Refer to Section 4.2.1.)
2. Remove the Waste drain ink pad unit from the printer. (Refer to Section 4.2.6.)
3. Remove the Front frame and Paper eject roller. (Refer to Section 4.2.10.)
4. Remove the Plain washer and then remove the Combination gear 11.6, 36.8
carefully. Refer to Figure 4-38.

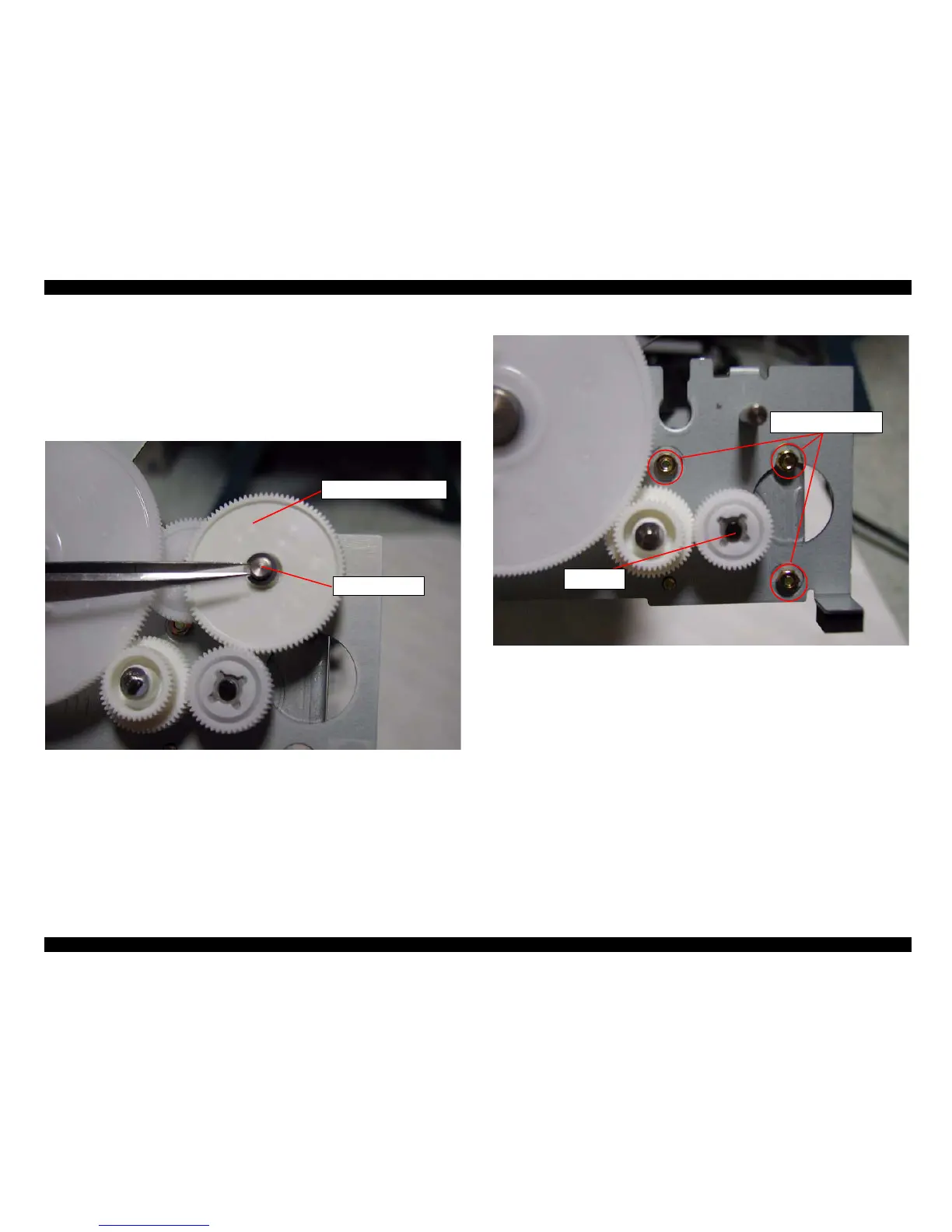

Figure 4-40. Removing the Plain washer and Combination gear 11.6, 36.8
5. Remove three nuts (Hexagon Nut M3) securing the PF motor to the left frame.
Figure 4-41. Removing two screws securing the PF motor
6. Disconnect the connector cable for PF motor from CN7 on the Main board.
7. Remove the PF motor from the left frame.
Plain washer
Combination gear 11.6, 36.8
Hexagon Nut M3
PF motor
