EPSON Stylus COLOR 680/777/777i Revision B
Disassembly and Assembly Disassembly 97
4.2.14 Disassembling ASF frame unit
1. Remove the Housing from the printer. (Refer to Section 4.2.1.)
2. Remove the LD roller shaft holder unit (Refer to Section 4.2.7.)
3. Remove two screws (C.B.S.-TITE (P4) 3x8, F/Zn screw, C.B.S-TITE (P4) 3x6 F/
Zn) securing the ASF frame unit and remove the ASF frame unit from the printer
mechanism.

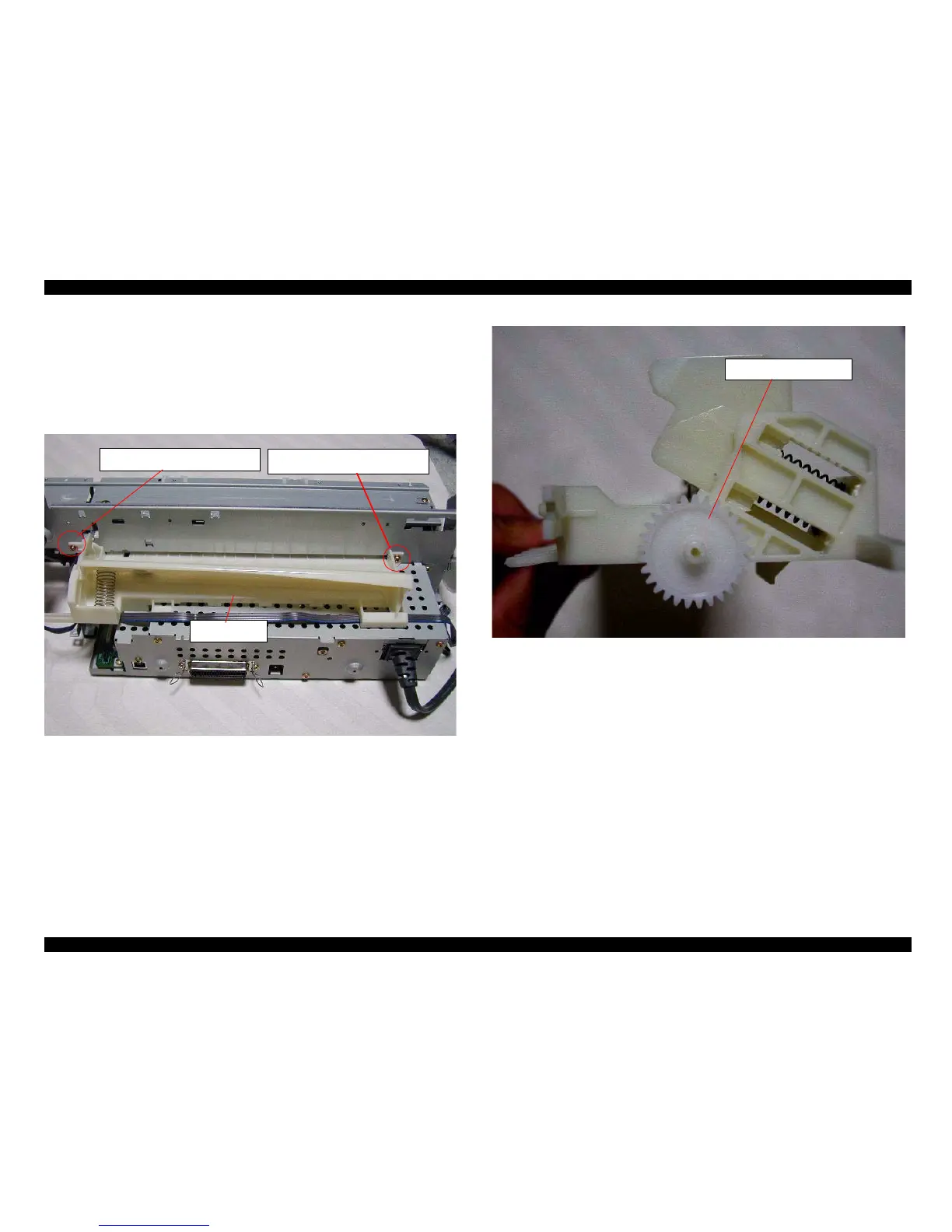

Figure 4-55. Removing the screws securing the ASF frame
4. Remove the Spur gear 23.2 from the ASF frame.
Figure 4-56. Removing the Gears from ASF frame unit
C.B.S-TITE(P4) 3x8 F/Zn screw
ASF Frame unit
C.B.S-TITE 3x6 F/Zn
Spur gear 23.2
