EPSON Stylus COLOR 680/777/777i Revision B
Disassembly and Assembly Disassembly 90
C H E C K
P O I N T

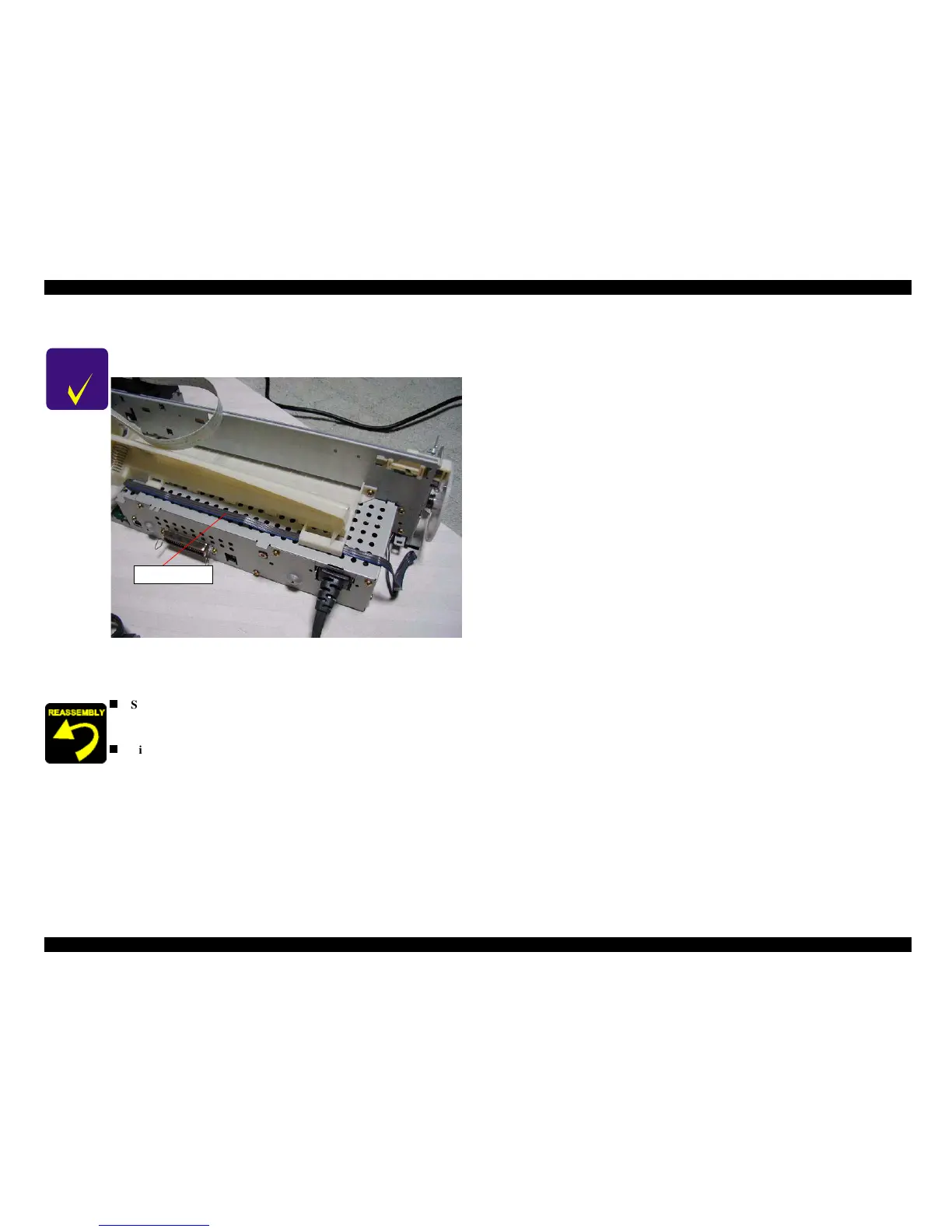

Be sure that the PF motor cable is placed to the backward. Refer to
theFigure4-42.
Figure 4-42. PF motor cable
n
Since the CN 7 is not located near the rear edge of the Main
board, it is easier to use the tweezers or pincers to connect the
cable to the CN7.
n
Tightening torque for screw
• Hexagon Nut M3 for PF motor : 9+/1 kgf.cm
PF motor cable
