EPSON AcuLaser C1900/AcuLaser C900 Revision B
Troubleshooting Check Points and Remedy for Paper Jam 162
TRANSPORT COMPONENT OF DUPLEX UNIT / INVERSION AND SIDING
COMPONENT OF DUPLEX UNIT
 Detection Timing
 Solution
 Electric parts which can cause the jam:
• Duplex Unit Transport Sensor (PC17)
• Duplex Unit Control Board (PWB-A)

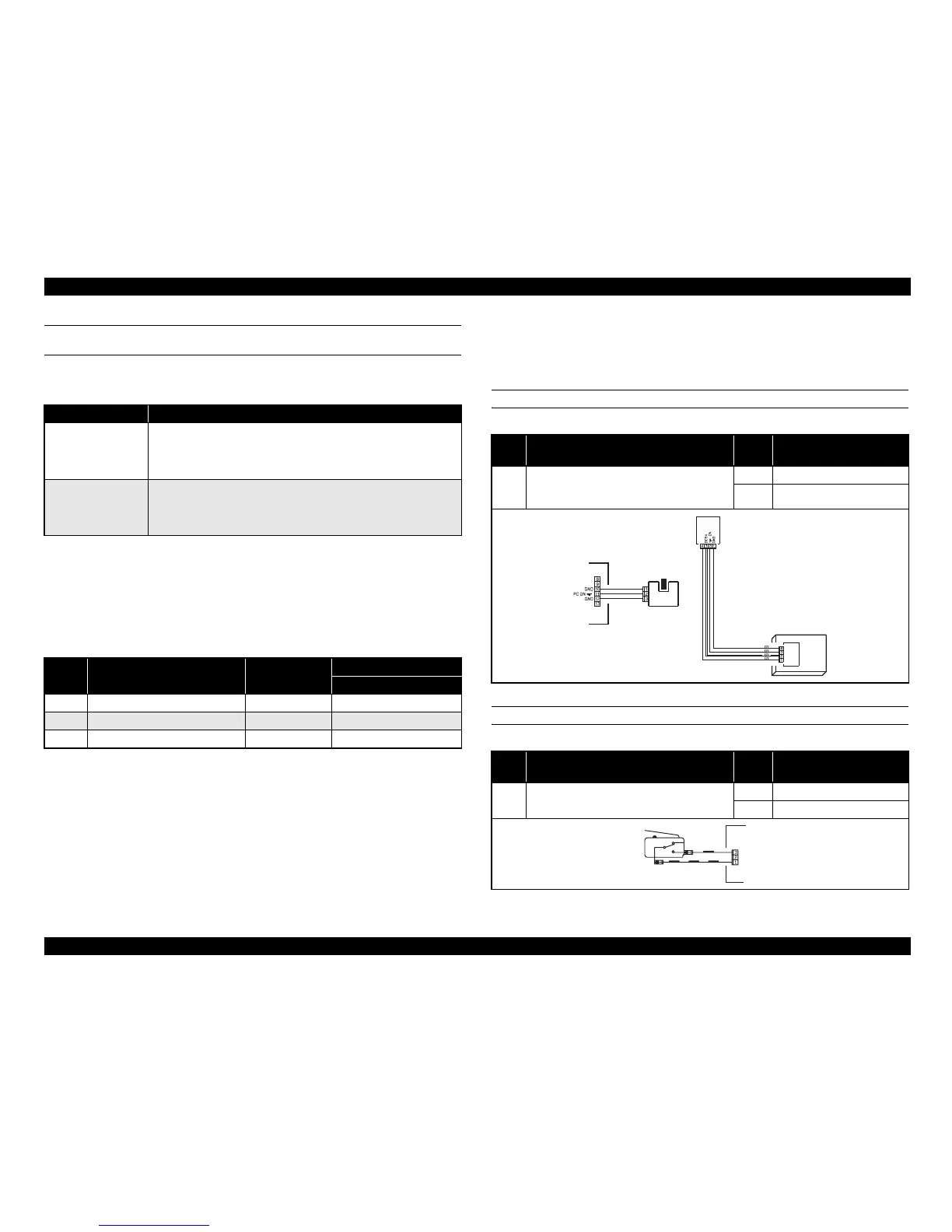

3.4.4 Checking Method for Electric Parts
At occurrence of a paper jam or any other trouble, you can check the relevant electric
parts for their normality by the method as described below:
SENSOR
SWITCH
Table 3-10. Detection Timing
Category Explanation
Inversion and siding
component /
transport
component jam
Even on the lapse of a predetermined time, the paper does not
intercept the light to the duplex unit transport sensor (PC17).
Retaining paper
detection in
transport
component
The light to the duplex unit transport sensor (PC17) is intercepted
when the main switch is turned on, the door and cover are opened
and closed or a jam or trouble is cleared.
Table 3-11.
Step Action Refer to
WARNING DIAGRAM
Control Signal
1 Initial checking p.159 -
2 Check the operation of PC17. p.162 PC17_ON
3 Replace the PWB-A. - -
Table 3-12. Checking Method (Sensor)
Step Check Item
Yes/
No
Solution
1
Does the input signal to Control Board
change when light to the sensor is
intercepted? (H → L, L → H)
NO Replace the sensor
YES Replace the Control Board
Table 3-13. Checking Method (Switch)
Step Check Item
Yes/
No
Solution
1
Does the input signal (NO) to Control Board
turn L → H when the switch is turned on?
NO Replace the sensor
YES Replace the Control Board
Not Us
e
COM
NO
