Epson AcuLaser C2900N - Installing the Fuser Unit

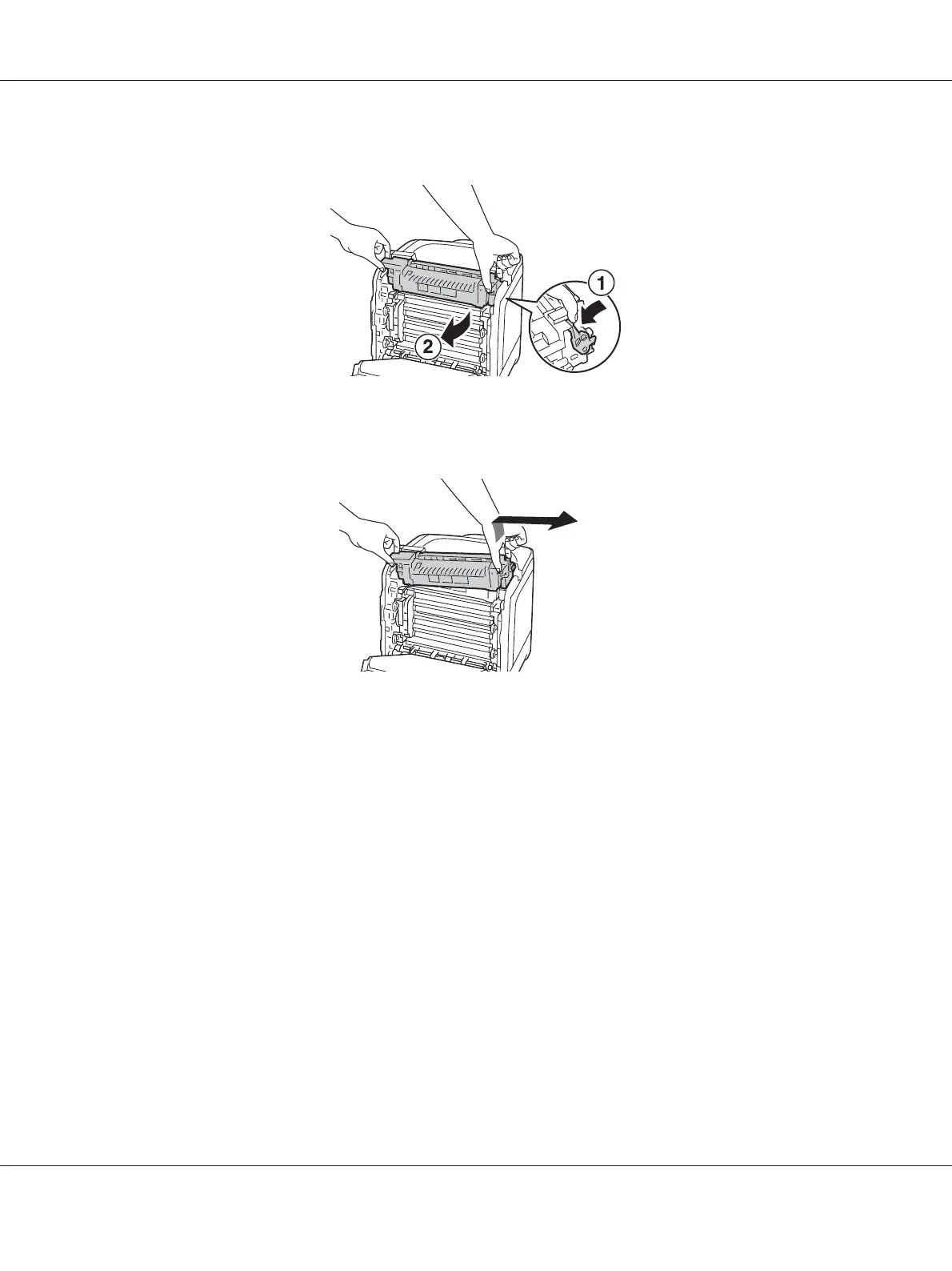

5. Pinch the gray lever on the right side of the fuser unit and lower the lever toward you.
6. Hold both sides of the fuser unit. Next, slightly raise the right side while holding down the left side,
and slide out the fuser unit.
Installing the Fuser Unit
1. Insert the protrusions of the new fuser unit into the two slots of the printer.
Note:
❏ Hold both sides of the fuser unit with your hands.
Epson AcuLaser C2900 Series User’s Guide
Maintenance 217
