Epson DFX-9000 Field Repair Guide 3/29/07
Component Replacement Printer Component, Software Item, LCD Display, Printer Button Page 7.
Component Replacement

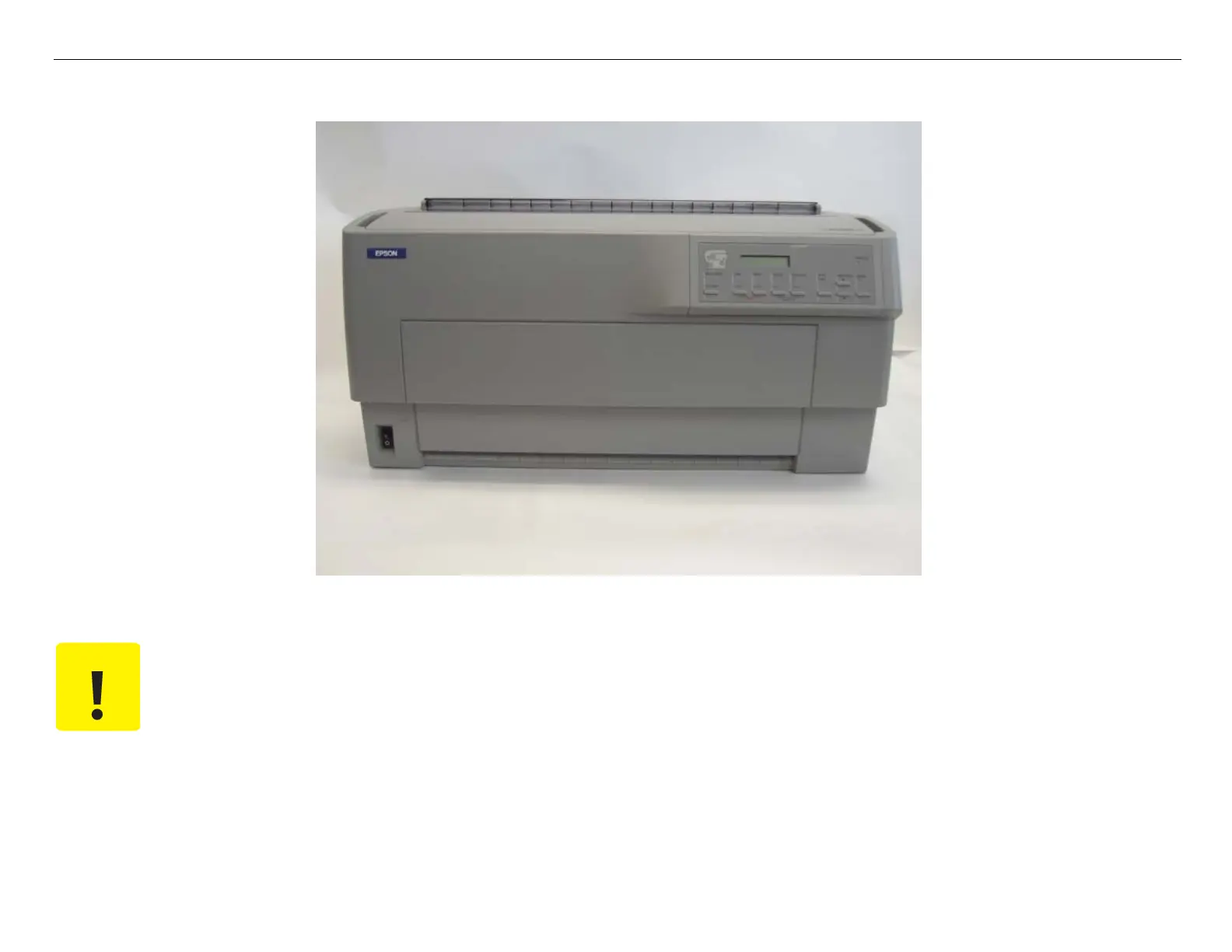

All directional references (left, right, top, bottom, front, and back/rear) are referenced with the printer positioned as
shown above.
Before removing any component from the DFX-9000, ensure that the AC Power source has been
removed.
C A U T I O N
