Epson DFX-9000 Repair Guide

Epson DFX-9000 Field Repair Guide 3/29/07
Component Replacement Printer Component, Software Item, LCD Display, Printer Button Page 21.

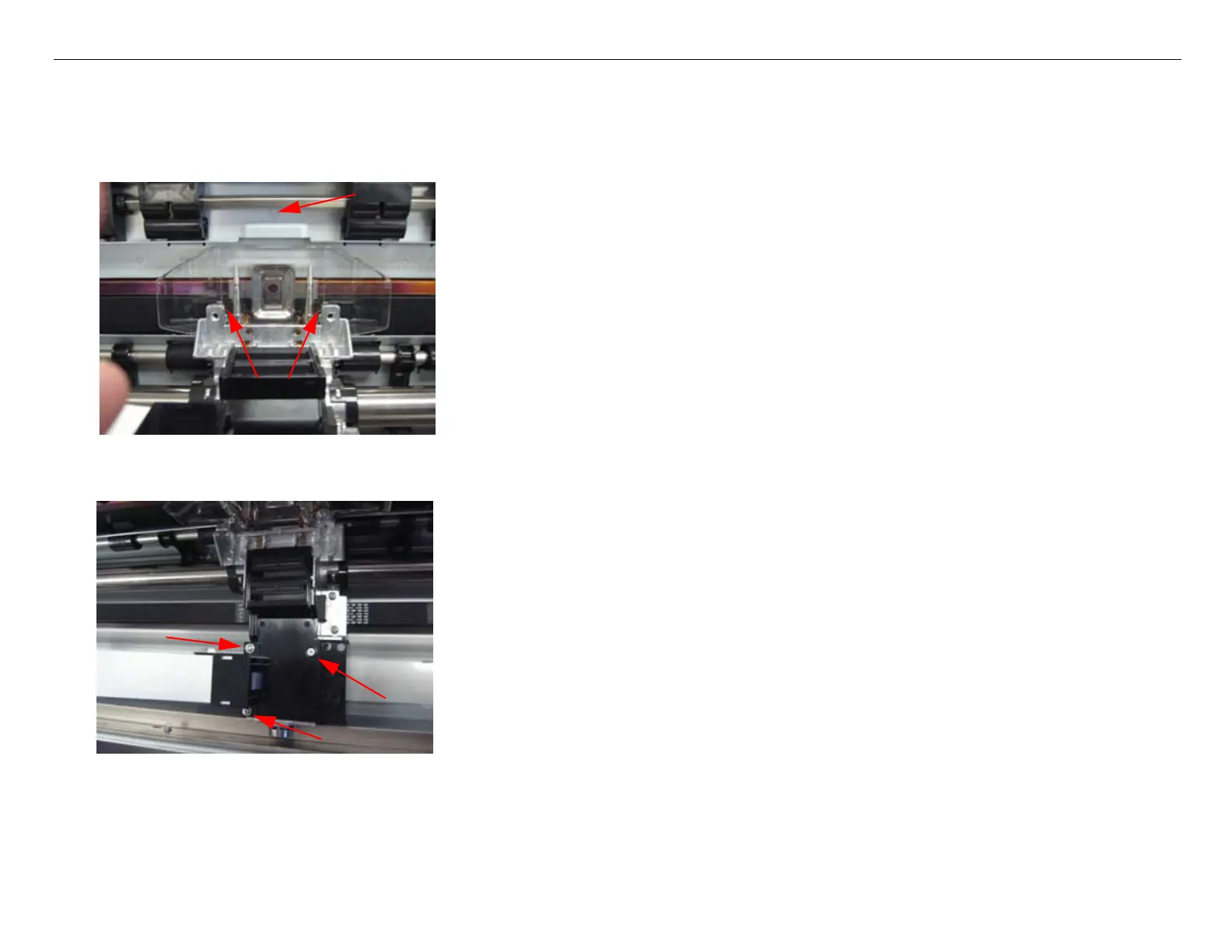

Ribbon Mask & Ribbon Mask Holder Removal
1. Move the Carriage to the “ribbon change position” (marked by the triangle) and remove the two screws that
secure the Ribbon Mask in place.
2. Remove the three screws that secure the black Carriage Holder and pull the Carriage Holder away from the
Carriage Assembly.
2 Screws
Triangle

Epson DFX-9000 Specifications

General

Color	No
Built-in barcodes	Code 39, POSTNET, UPC-A, UPC-E
Maximum resolution	240 x 144 DPI
Maximum print size	A4 (210 x 297 mm)
Standard interfaces	Serial
Dimensions (WxDxH)	700 x 378 x 363 mm
Power requirements	100-240V, 50-60Hz
Connectivity technology	Wired
Compatible operating systems	Microsoft Windows 95 / 98 / 2000 / Me / XP/ Windows NT 4.0
Sound pressure level (printing)	58 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Power consumption (standby)	1.85 W
Power consumption (typical)	7.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
