Epson EB-520 User Manual

Button Function
OK Performs the same operation as the [Enter] button on
the remote control.
s "Remote Control" p.16
Menu Displays and closes the Configuration menu.
Auto If clicked while projecting analog RGB signals from
Computer1 port or Computer2 port, automatically
optimizes the image by adjusting the Tracking, Sync.,
and Position.
Search Switches to the image from the input port where video
signals are being input.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.43
Esc Performs the same operation as the [Esc] button on the
remote control.
s "Remote Control" p.16
E
You can perform the following operations when you click the tabs.
Tab Function
Contact IT Help Displays the Help Desk window. Used to send messages
to, and receive messages from, the administrator using
Crestron RoomView
®
Express.
Info Displays information on the projector that is currently
connected.
Tools Changes settings in the projector that is currently
connected. See the next section.
Using the Tools Window

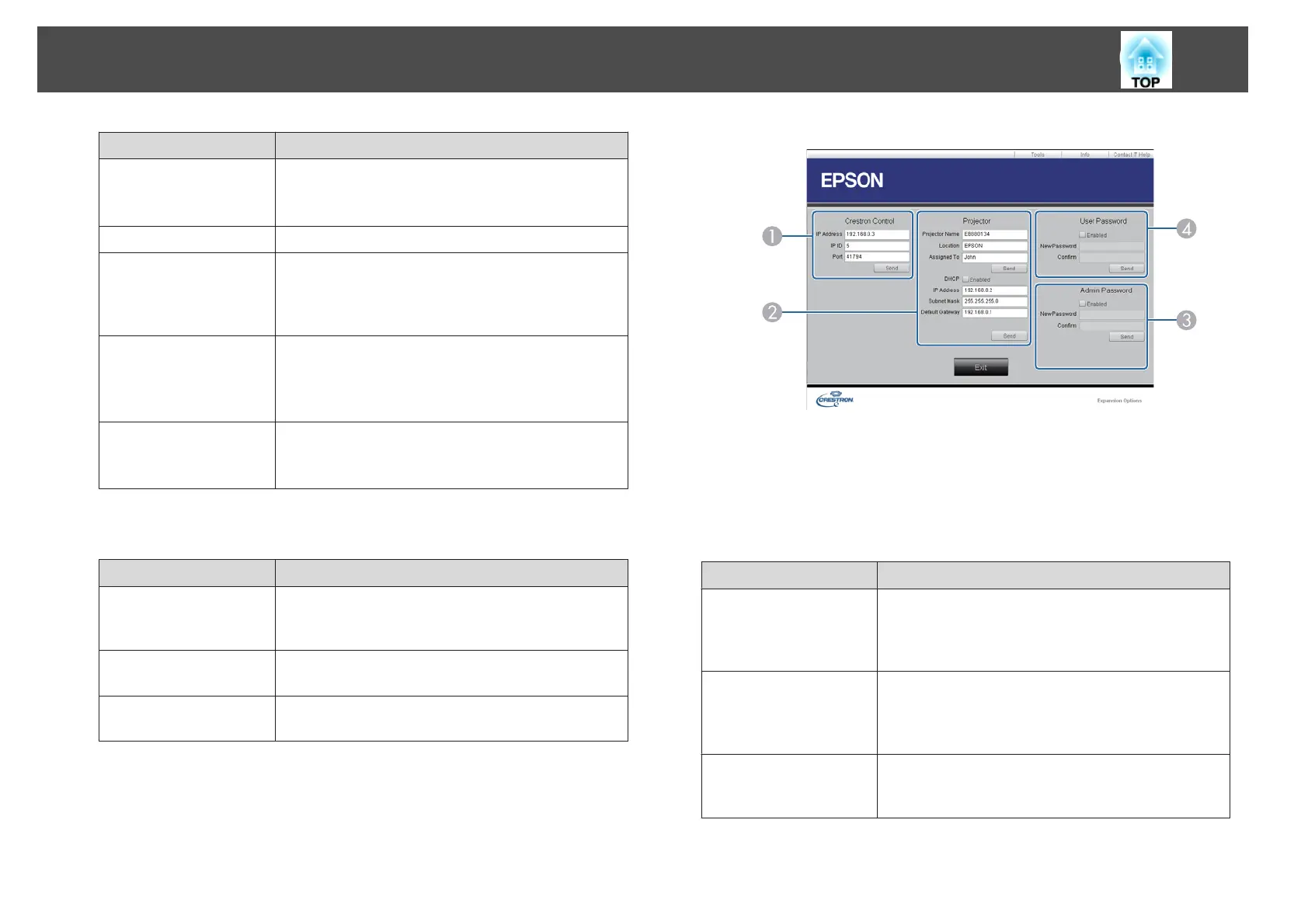

The following window is displayed when you click the Tools tab on the
operation window. You can use this window to change settings in the
projector that is currently connected.
A
Crestron Control
Make settings for Crestron
®
central controllers.
B
Projector
The following items can be set.
Item Function
Projector Name Enter a name to differentiate the projector that is
currently connected from other projectors on the
network. (The name can contain up to 15 single-byte
alphanumeric characters.)
Location Enter an installation location name for the projector
that is currently connected on the network. (The name
can contain up to 32 single-byte alphanumeric
characters and symbols.)
Assigned To Enter a user name for the projector. (The name can
contain up to 32 single-byte alphanumeric characters
and symbols.)
Monitoring and Controlling
110

Epson EB-520 Specifications

General

Matrix size	0.55 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.5 - 1.3 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	50 - 108 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	15 °
Projector brightness (economic mode)	1600 ANSI lumens
Focus	Manual
Throw ratio	0.55:1
Focal length range	0 - 6.4 mm
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Microphone in	Yes
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	0
Noise level	35 dB
Country of origin	China
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	278 W
Power consumption (PowerSave)	219 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	490 mm
Package width	385 mm
Package height	210 mm
Package weight	5860 g
