Name Function
T
[Esc] button
 Stops the current function.
 If pressed when the Configuration menu is displayed, it
moves to the previous level.
s "Using the Configuration Menu" p.113
 Acts as a mouse's right button when using the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.93
U
[Pen Mode] button
(Only available in EB-536Wi)
Changes between operating the computer or drawing
using the interactive pen.
s "Using the Interactive Features (EB-536Wi only)"
p.58
V
[Color Mode] button
Each time the button is pressed, the color mode changes.
s "Selecting the Projection Quality (Selecting Color
Mode)" p.53
W
[MHL Menu] button
Not available on this device.
X
[LAN] button
Switches to the image from the network connected device.
Y
[USB] button
Each time the button is pressed, it cycles through the
following images:
 USB Display
 Images from the device connected to the USB-A port
Z
[Source Search]
button
Switches to the image from the input port where video
signals are being input.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.43
a
Remote control light-
emitting area
Outputs remote control signals.

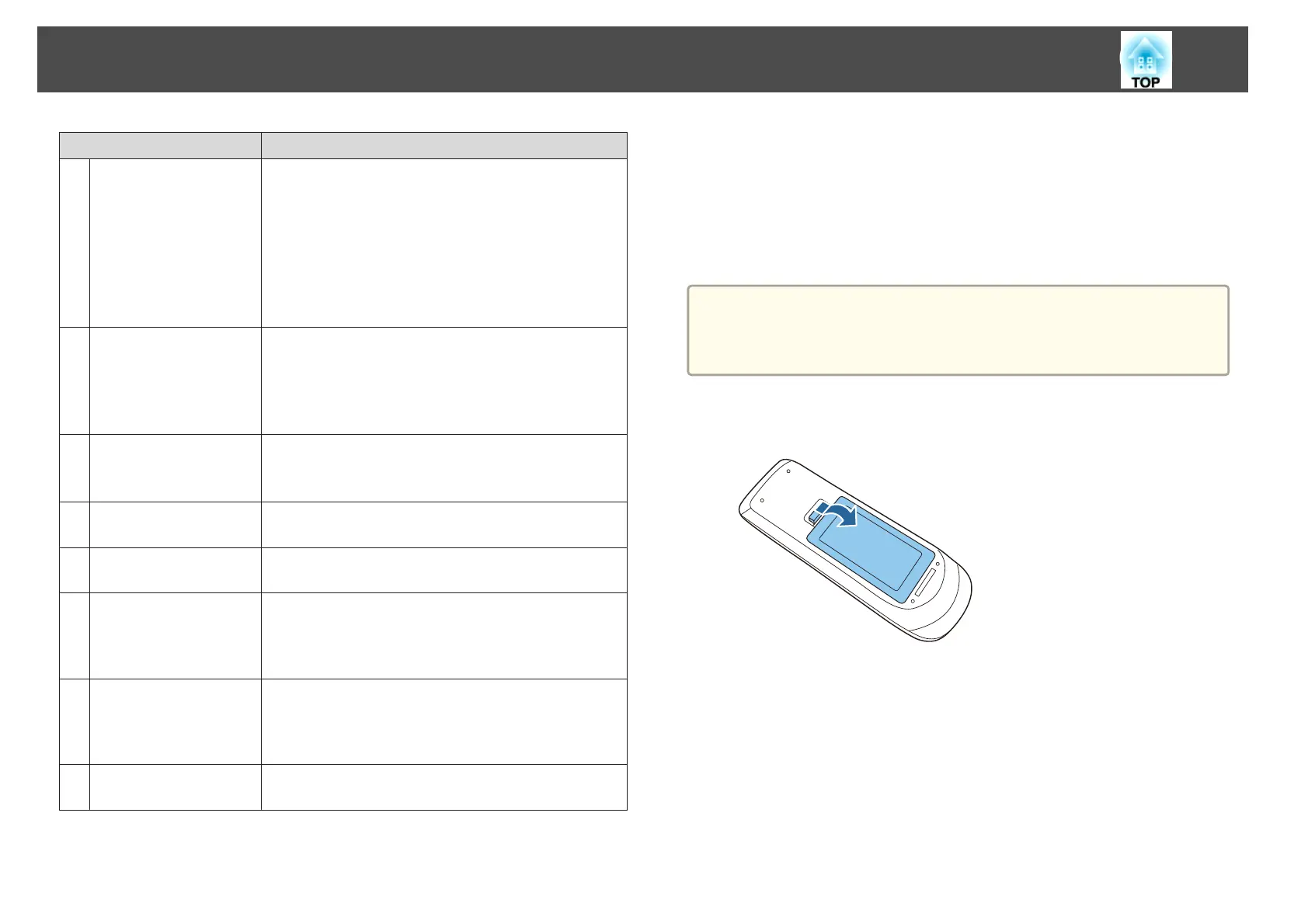

Replacing the Remote Control Batteries
If the remote control becomes unresponsive or inoperable after it has been
used for some time, the batteries may have reached the end of their service
life. When this happens, replace them with new batteries. Obtain two AA
size manganese or alkaline batteries. You cannot use other batteries except
for the AA size manganese or alkaline.
Attention
Make sure you read the following manual before handling the batteries.
s Safety Instructions
a
Remove the battery cover.
While pushing the battery cover catch, lift the cover up.
b
Replace the old battery with a new battery.
Slide the batteries in negative side first.
Part Names and Functions
18

Epson EB-520 Specifications

General

Matrix size	0.55 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.5 - 1.3 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	50 - 108 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	15 °
Projector brightness (economic mode)	1600 ANSI lumens
Focus	Manual
Throw ratio	0.55:1
Focal length range	0 - 6.4 mm
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Microphone in	Yes
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	0
Noise level	35 dB
Country of origin	China
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	278 W
Power consumption (PowerSave)	219 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	490 mm
Package width	385 mm
Package height	210 mm
Package weight	5860 g
