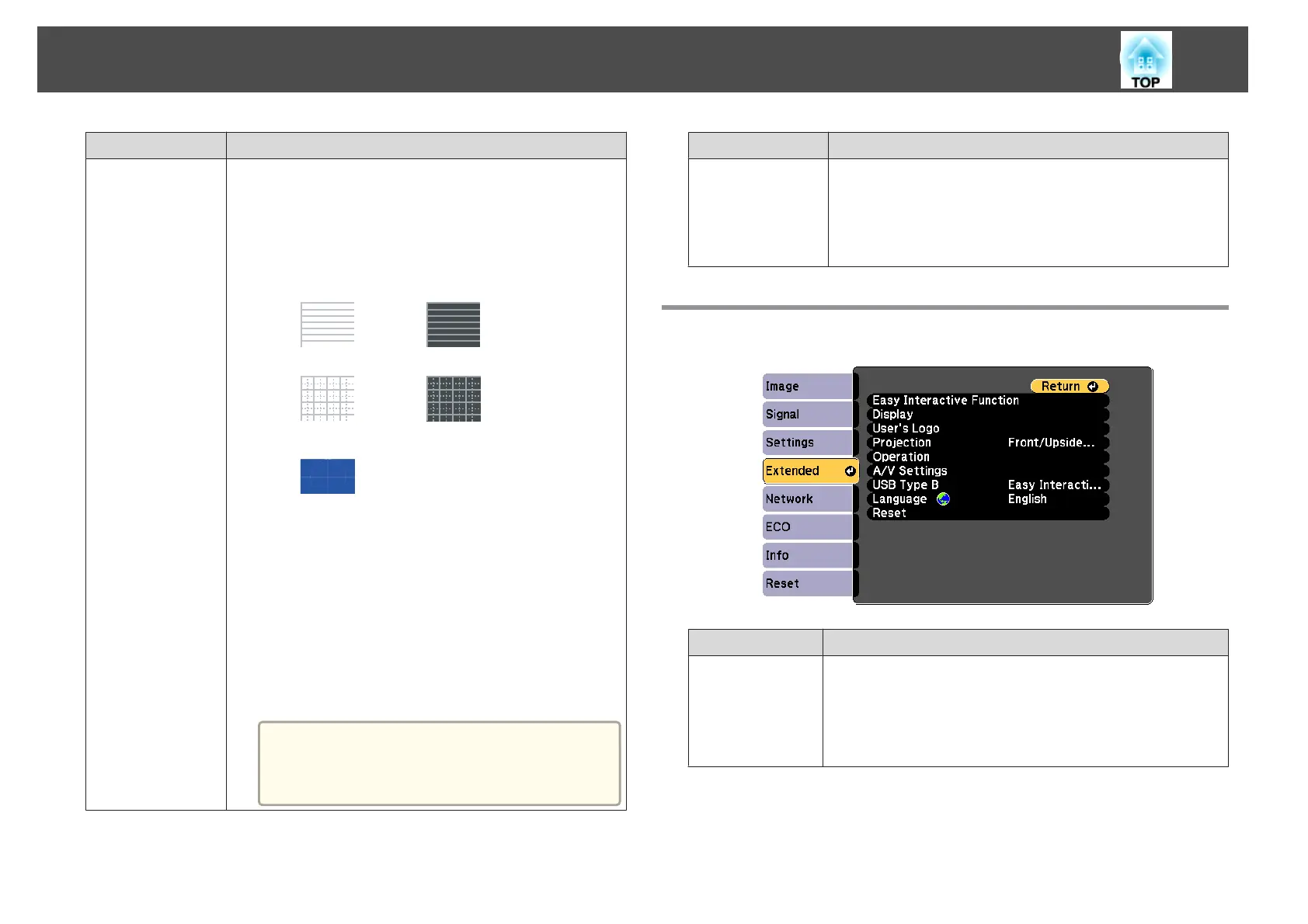

Submenu Function
Pattern
Pattern Display: Display a pattern.
Pattern Type: You can select from Patterns 1 to 5 or User
Pattern. Patterns 1 to 4 display projection lines such as ruled
lines or a grid. Pattern 5 displays a test pattern for 4:3 screens.
When adjusting the focus for an image projected on a screen
with an aspect ratio of 4:3 using EB-536Wi/EB-535W/
EB-525W, select Pattern 5.
Pattern 1:
Pattern 2:
Pattern 3:
Pattern 4:
Pattern 5:
User Pattern: Captures a user pattern.
s "Saving User Pattern" p.96
Test Pattern: Displays a test pattern to adjust the projected
status without connecting a device. While the test pattern is
displayed, zoom, focus adjustments, and keystone correction
can be performed. To cancel the test pattern, press the [Esc]
button on the remote control or the control panel.
When displaying a test pattern on a screen with an aspect ratio of
4:3 using EB-536Wi/EB-535W/EB-525W, set Pattern Type to
Pattern 5, and then select Pattern Display.
Attention
If a pattern is displayed for a long time, a residual
image may be visible in projected images.
Submenu Function
Reset
You can reset all adjustment values in the Settings menu to their
default settings, except for Zoom and User Button.
See the following to return all menu items to their default
settings.
s "Reset Menu" p.135
Extended Menu
Submenu Function
Easy Interactive
Function
(EB-536Wi only)
Allows you to use and set the interactive features.
s "Using the Interactive Features (EB-536Wi only)" p.58
See the following table for more details.
s
"Easy Interactive Function Setting Items (EB-536Wi
only)" p.123
List of Functions
120
To Next Page
