Epson EB-520 User Manual

Warning
 Do not look into the projector's lens during projection. Doing so could
damage your eyes. Take particular care when there are children present.
 During projection, do not block the light from the projector with the lens
cover or a book and so on. If the light from the projector is blocked, the area
on which the light shines becomes hot which could cause the lens cover to
melt, burn, or start a fire. Also, the lens may get hot due to the reflected light
which could cause the projector to malfunction. To stop projection, use the
A/V Mute function, or turn off the projector.
 A mercury lamp with high internal pressure is used as the projector's light
source. If the lamp is subjected to vibrations, shocks, or if it is used for an
overly extended length of time, the lamp may break or it may not turn on. If
the lamp explodes, gases may escape and small fragments of glass may be
scattered which could cause an injury. Be sure to observe the instructions
below.
- Do not disassemble or damage the lamp or subject it to any impacts.
- Do not bring your face close to the projector while it is in use.
- Particular care should be taken when the projector is installed to a ceiling,
as small pieces of glass may fall down when the lamp cover is removed.
(When cleaning the projector or replacing the lamp yourself, be very careful
not to allow such pieces of glass to get into the eyes or mouth.)
If the lamp breaks, ventilate the area immediately, and contact a doctor if any
fragments of broken glass are inhaled or get into the eyes or mouth.
a
 When Direct Power On is set to On from the Extended menu, the
projector turns on automatically when the power cord is connected.
When the power cord is plugged in, note that the projector turns on
automatically in cases such as a power outage being restored.
s Extended - Operation - Direct Power On p.120
 When Auto Power On is set to Computer1 in the Extended menu,
when an image signal is being input into the projector's Computer1
input port, the power turns on automatically. (Only when Standby
Mode is set to Communication On in the ECO menu.)
s Extended - Operation - Auto Power On p.120

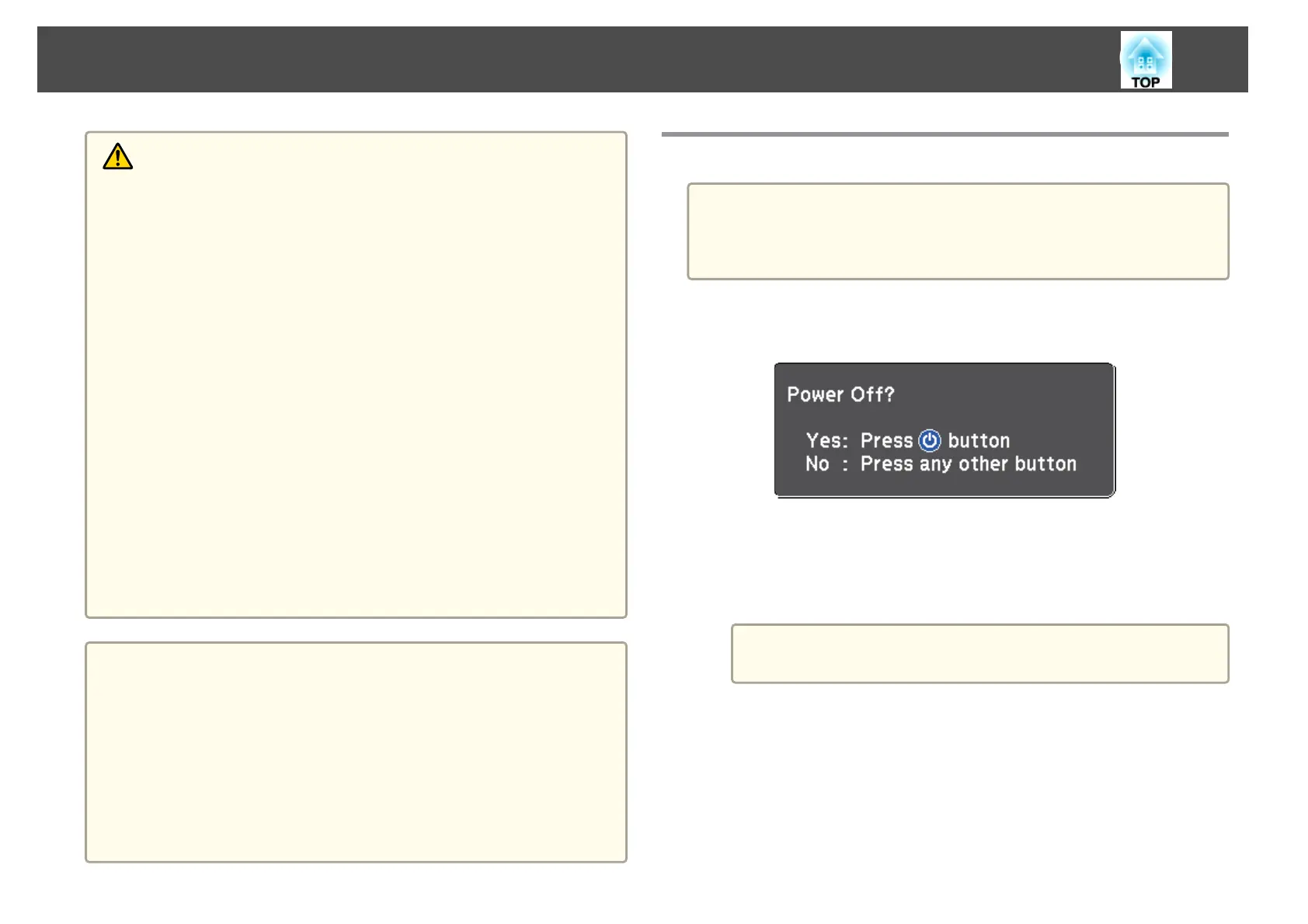

Turning Off the Projector
a
Turn off this product when it is not in use to prolong the life of the
projector. The lamp's operating life changes depending on the
Configuration menu settings, environmental conditions, and usage.
Brightness decreases over time.
a
Press the [
t
] button on the control panel or the remote control.
The shutdown confirmation screen is displayed.
b
Press the [t] power button again. (To leave it on, press any other
button.)
After the beep sounds twice, the projected image disappears and the
status indicator turns off.
a
Since this projector does not require a cool-down time, you can
put it away or move it immediately.
c
Unplug the power code.
Projecting Images
42

Epson EB-520 Specifications

General

Matrix size	0.55 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.5 - 1.3 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	50 - 108 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	15 °
Projector brightness (economic mode)	1600 ANSI lumens
Focus	Manual
Throw ratio	0.55:1
Focal length range	0 - 6.4 mm
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Microphone in	Yes
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	0
Noise level	35 dB
Country of origin	China
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	278 W
Power consumption (PowerSave)	219 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	490 mm
Package width	385 mm
Package height	210 mm
Package weight	5860 g
