Epson EB-520 User Manual

Base

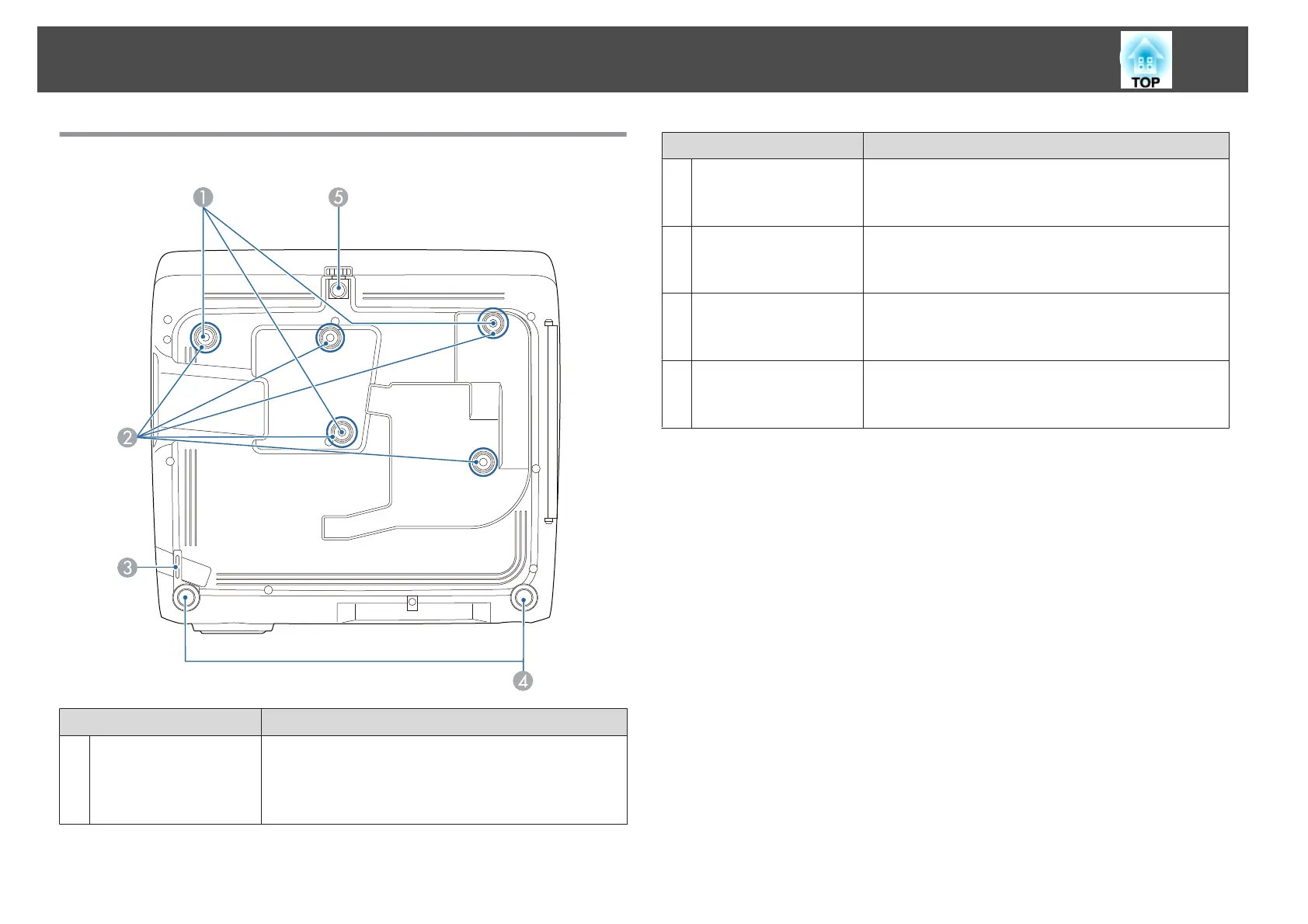

Name Function
A
Ceiling mount fixing
points (three points)
Attach the optional Ceiling mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.23
s "Optional Accessories" p.172
Name Function
B
Wall mount plate
fixing points (five
points)
When attaching to a wall, attach the optional wall mount
fixing plate.
s "Optional Accessories" p.172
C
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s "Installing the Wire Lock" p.101
D
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.52
E
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.52
Part Names and Functions
14

Epson EB-520 Specifications

General

Matrix size	0.55 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.5 - 1.3 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	50 - 108 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	15 °
Projector brightness (economic mode)	1600 ANSI lumens
Focus	Manual
Throw ratio	0.55:1
Focal length range	0 - 6.4 mm
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Microphone in	Yes
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	0
Noise level	35 dB
Country of origin	China
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	278 W
Power consumption (PowerSave)	219 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	490 mm
Package width	385 mm
Package height	210 mm
Package weight	5860 g
