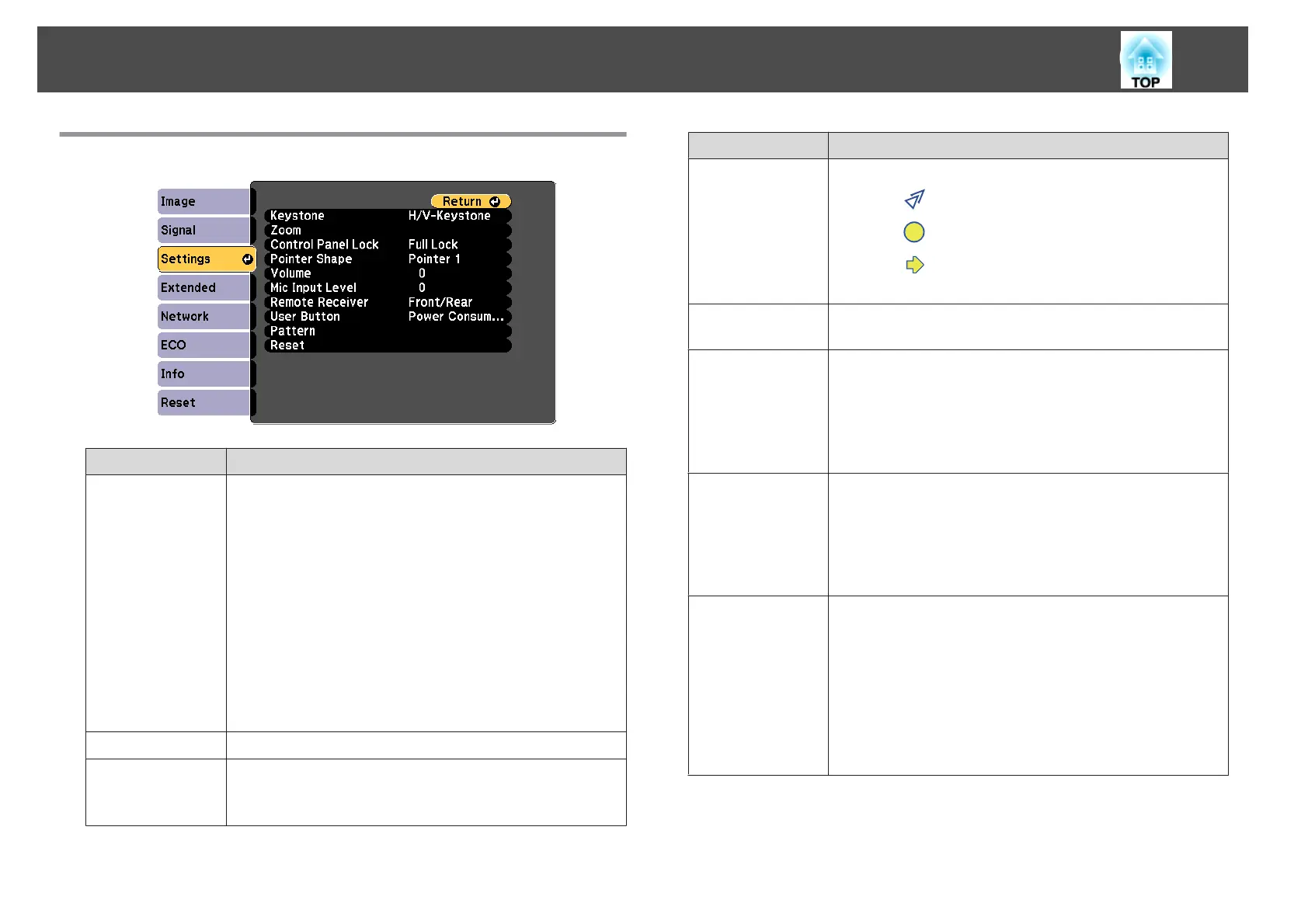

Epson EB-520 User Manual

Settings Menu
Submenu Function
Keystone
You can correct keystone distortion.
 When H/V-Keystone is selected:
Adjust V-Keystone and H-Keystone to correct horizontal
and vertical keystone distortion.
You can also set H-Keystone Adjuster and Auto V-
Keystone to On or Off (EB-536Wi only).
s "H/V-Keystone" p.49
s "Auto V-Keystone" p.52
s "H-Keystone Adjuster (EB-536Wi only)" p.51
 When Quick Corner is selected:
Select and correct the four corners of the projected
image.
s "Quick Corner" p.49
Zoom
Adjusts the projected image size.
Control Panel
Lock
You can use this to restrict operation of the projector's control
panel.
s "Restricting Operation (Control Panel Lock)" p.100
Submenu Function
Pointer Shape
You can select the shape of the pointer.
Pointer 1:
Pointer 2:
Pointer 3:
s "Pointer Function (Pointer)" p.91
Volume
You can adjust the volume. Setting values are saved for each
source.
Mic Input Level
Adjusts the volume from the microphone. When the Mic Input
Level is turned down to 0, no audio is output from the speaker.
When the microphone input level is raised, the audio from the
connected device becomes quieter. When the microphone
input level is lowered, the audio from the connected device
becomes louder.
Remote Receiver
You can limit the reception of the operation signal from the
remote control.
When set to Off, you cannot perform any operations from the
remote control. If you want to make operations from the remote
control, hold down the [Menu] button on the remote control for
at least 15 seconds to reset the setting to its default value.
User Button
You can select the item in the Configuration menu to be
assigned to the [User] button on the remote control. By pressing
the [User] button the assigned menu item selection/adjustment
screen is displayed, allowing you to make one-touch settings/
adjustments. You can assign one of the following items to
the [User] button.
Power Consumption, Info, Progressive, Test Pattern,
Resolution, Mic Input Level, Pattern Display, Auto
Calibration (EB-536Wi only), Flip Horizontal
List of Functions
119

Epson EB-520 Specifications

General

Matrix size	0.55 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.5 - 1.3 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	50 - 108 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	15 °
Projector brightness (economic mode)	1600 ANSI lumens
Focus	Manual
Throw ratio	0.55:1
Focal length range	0 - 6.4 mm
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Microphone in	Yes
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	0
Noise level	35 dB
Country of origin	China
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	278 W
Power consumption (PowerSave)	219 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	490 mm
Package width	385 mm
Package height	210 mm
Package weight	5860 g
