Epson EB-520 User Manual

Installation Methods

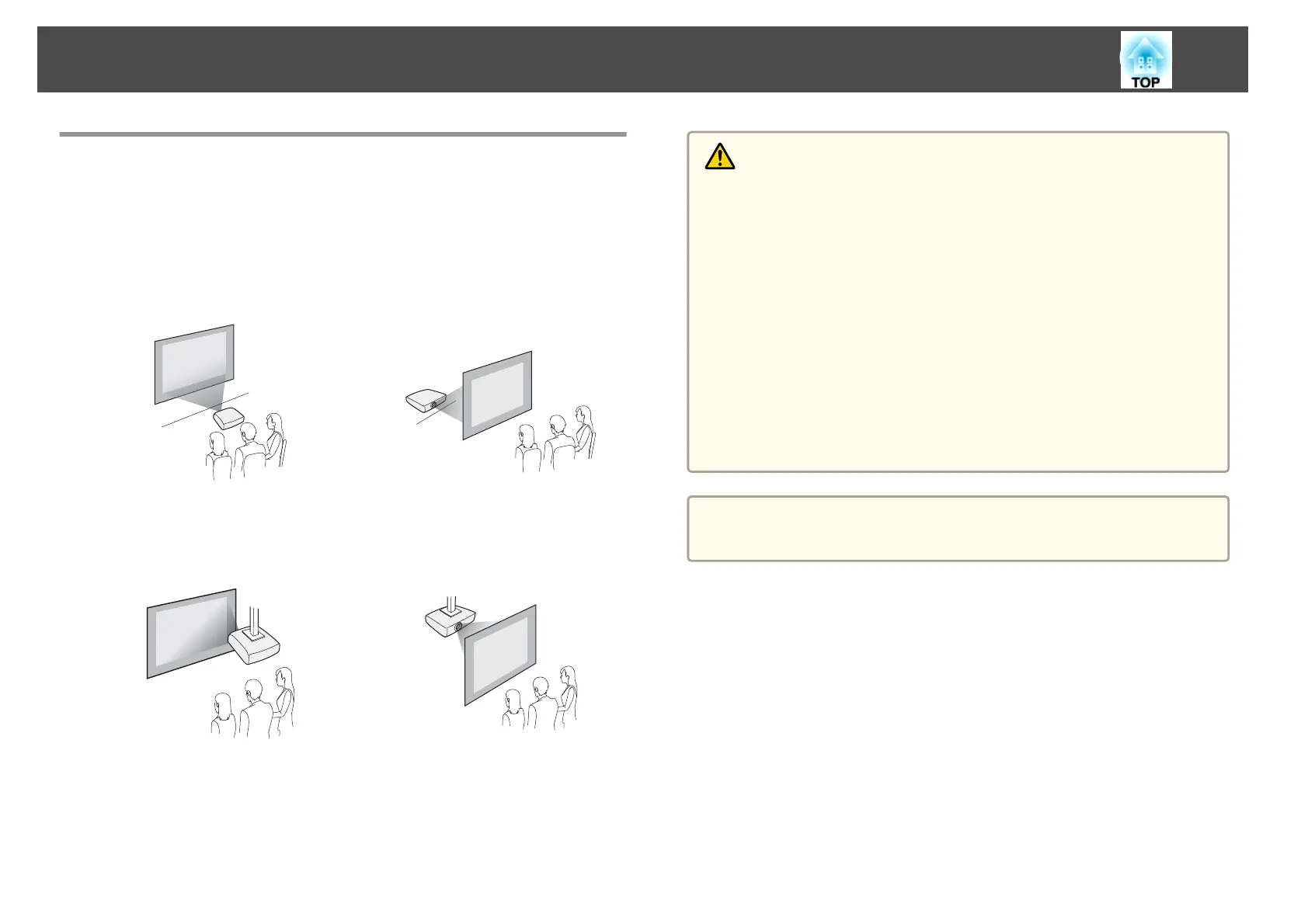

The projector supports the following four different projection methods.
Install the projector according to the conditions of the installation location.
Turn the projector off when installing the projector or changing the
installation method. Turn the power back on after completing installation.
 Project images from in front of
the screen. (Front projection)
 Project images from behind a
translucent screen. (Rear projec‐
tion)
 Suspend the projector from a
wall or ceiling and project im‐
ages from in front of a screen.
(Front/Ceiling projection)
 Suspend the projector from the
ceiling and project images from
behind a translucent screen.
(Rear/Ceiling projection)
Warning
 A special method of installation is required when suspending the projector
from a wall or ceiling. If it is not installed correctly, it could fall causing an
accident and injury.
 If you use adhesives on the wall mount plate fixing points or the ceiling
mount fixing points to prevent the screws from loosening, or if you use
things such as lubricants or oils on the projector, the projector case may
crack causing it to fall from its mount. This could cause serious injury to
anyone under the mount and could damage the projector.
When installing or adjusting the mount, do not use adhesives to prevent the
screws from loosening and do not use lubricant or oil and so on.
 Do not cover the projector's air intake vent or air exhaust vent. If either of
the vents are covered, the internal temperature could rise and cause a fire.
 Do not use the projector in a location subject to combustible or explosive gas.
The projector may catch fire due to the high internal temperature of the
lamp.
Attention
Do not use the projector on its side. This may cause malfunctions to occur.
Installing the Projector
23

Epson EB-520 Specifications

General

Matrix size	0.55 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	0.5 - 1.3 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	50 - 108 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	15 °
Projector brightness (economic mode)	1600 ANSI lumens
Focus	Manual
Throw ratio	0.55:1
Focal length range	0 - 6.4 mm
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Video processing	10 bit
Analog signal format system	-
Microphone in	Yes
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	0
Noise level	35 dB
Country of origin	China
Noise level (economic mode)	28 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	278 W
Power consumption (PowerSave)	219 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	6 pc(s)

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	490 mm
Package width	385 mm
Package height	210 mm
Package weight	5860 g
