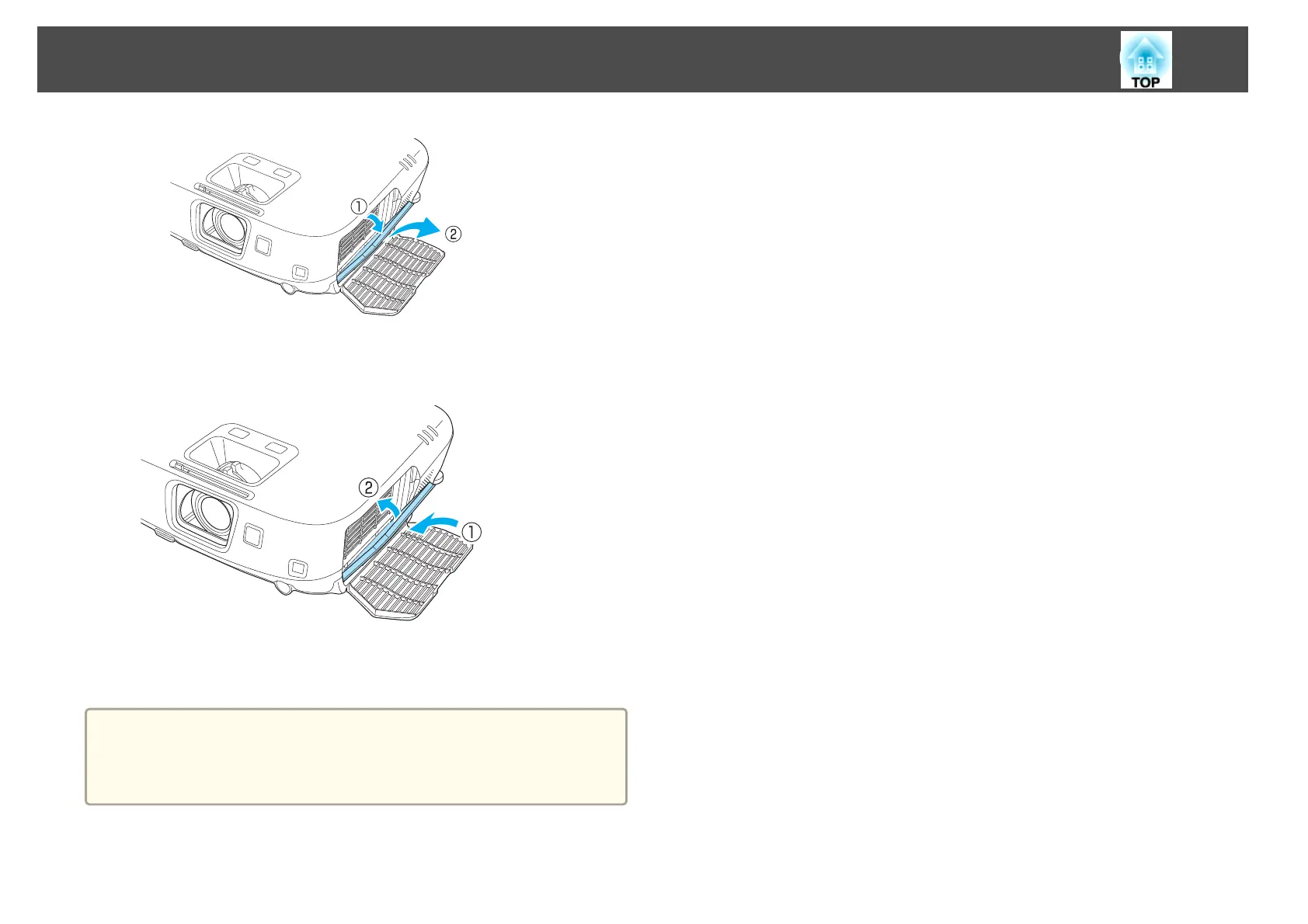

d
Install
the
new
air
filter.
Press
until
it
clicks
into
place.
e
Close
the
air
filter
cover.
a
Dispose
of
used
air
filters
proper
ly
in
accordance
with
your
local
regulations.
Material
of
the
frame
part:
ABS
resin
Material
of
the
filter
part:
Polyurethane
foam
Replacing Consumables
104
103
105
Table of Contents
Table of Contents
3
Notations Used in this Guide
2
Table of Contents
3
Introduction
6
Projector Features
7
Project Realistic 3D Images
7
Quick and Easy Set Up, Projection, and Storage
7
Connecting with a USB Cable and Projecting (USB Display)
7
Detecting Projector Movements and Automatically Correcting Image Distortion
7
Horizontal Keystone Adjuster (EH-TW550/EH-TW510 Only)
7
Focus Help (EB-W16 Only)
8
Automatically Adjust to Fit into the Screen Frame (Screen Fit) (EB-W16 Only)
8
Useful Functions for Projecting Images
8
Increasing Projection Content in Wide (WXGA) Screen
8
Making the most of the Remote Control
8
Enlarge and Project Your Files with the Document Camera
8
Connect a USB Storage Device and Project Movies and Images (PC Free)
9
Enhanced Security Functions
9
Part Names and Functions
10
Front/Top
10
Rear
11
Base
12
Control Panel
13
Part Names and Functions
14
Default Chapter
14
If Pressed When the Configuration Menu or the Help
14
Screen Is Displayed, These Buttons Select Menu Items and Setting Values
14
Remote Control
15
S "Using the Help
16
If Pressed When the Configuration Menu Is Displayed, It
16
S "Using the Configuration Menu
16
[B] Increases the Volume
16
[A] Decreases the Volume
16
S "Adjusting the Volume
16
Replacing the Remote Control Batteries
17
Remote Control Operating Range
18
Stops the Current Function
16
To Deal with Problems if They Occur
16
Preparing the Projector
19
Installing the Projector
20
Installation Methods
20
From a Ceiling
20
Screen Size and Approximate Projection Distance
21
Connecting Equipment
22
Connecting a Computer
22
Connecting Image Sources
23
Connecting USB Devices
25
Connecting External Equipment (EB-W16 Only)
26
Basic Usage
27
Projecting Images
28
From Installation to Projection
28
S "Correcting the Focus
28
Automatically Detect Input Signals and Change the Projected Image (Source Search)
29
Switching to the Target Image by Remote Control
30
Projecting with USB Display
30
System Requirements
30
Connecting for the First Time
31
Uninstalling
32
Adjusting Projected Images
34
Correcting Keystone Distortion
34
Correcting Automatically
34
Correcting Manually
35
Automatically Adjust to Fit into the Screen Frame (Screen Fit) (EB-W16 Only)
38
Adjusting the Image Size
40
Adjusting the Image Position
41
Adjusting the Horizontal Tilt
41
Correcting the Focus
41
Adjusting the Volume
42
Selecting the Projection Quality (Selecting Color Mode)
42
For EB-W16
42
For EH-TW550/EH-TW510
43
Setting Auto Iris
43
Changing the Aspect Ratio of the Projected Image
44
Changing Methods
44
Changing the Aspect Mode
45
Useful Functions
47
Projection Functions
48
Projecting 3D Images
48
Preparing to View 3D Images
48
Viewing 3D Images
49
Viewing Area for 3D Images
50
Warnings Regarding Viewing 3D Images
51
Projecting Without a Computer (PC Free)
53
Specifications for Files that Can be Projected Using PC Free
54
PC Free Examples
54
PC Free Operating Methods
54
Projecting the Selected Images or Movies
56
Projecting Image Files in a Folder in Sequence (Slideshow)
57
Image File Display Settings and Slideshow Operation Settings
58
Hiding the Image and Sound Temporarily (A/V Mute)
59
Freezing the Image (Freeze)
59
Pointer Function (Pointer)
60
Enlarging Part of the Image (E-Zoom)
61
Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)
62
Saving a User's Logo
63
Security Functions
65
Managing Users (Password Protect)
65
Kinds of Password Protect
65
Setting Password Protect
65
Entering the Password
66
Restricting Operation (Control Panel Lock)
67
Anti-Theft Lock
68
Installing the Wire Lock
68
Monitoring and Controlling
69
ESC/VP21 Commands (EB-W16 Only)
69
Before Getting Started
69
Command List
69
Communications Protocol
70
Configuration Menu
71
Using the Configuration Menu
72
List of Functions
73
Configuration Menu Table
73
Image Menu
74
Signal Menu
75
Settings Menu
77
Extended Menu
78
Info Menu (Display Only)
79
Reset Menu
80
Troubleshooting
81
Using the Help
82
Problem Solving
84
Reading the Indicators
84
Problem Solving
87
Default Chapter
87
When the Indicators Provide no Help
87
Problems Relating to Images
88
No Images Appear
88
No Images Appear S
88
Moving Images Are Not Displayed
89
Projection Stops Automatically
89
The Message Not Supported Is Displayed
89
The Message no Signal Is Displayed
89
Moving Images Are Not Displayed S
89
Projection Stops Automatically S
89
The Message "Not Supported" Is Displayed S
89
The Message "No Signal" Is Displayed S
89
Cannot View 3D Images
90
Cannot View 3D Images S
90
Images Are Fuzzy, out of Focus, or Distorted
91
Interference or Distortion Appear in Images
91
Images Are Fuzzy, out of Focus, or Distorted S
91
Interference or Distortion Appear in Images S
91
The Mouse Cursor Flickers (Only When Projecting USB Display)
92
The Image Is Truncated (Large) or Small, the Aspect Is Not Suitable, or the Image Has Been Reversed
92
Image Colors Are Not Right
93
Image Colors Are Not Right S
93
Images Appear Dark
94
Problems When Projection Starts
94
The Projector Does Not Turn on
94
Images Appear Dark S
94
The Projector Does Not Turn on S
94
Other Problems
95
No Sound Can be Heard or the Sound Is Faint
95
No Sound Can be Heard or the Sound Is Faint S
95
The Remote Control Does Not Work
96
I Want to Change the Language for Messages and Menus
96
The Remote Control Does Not Work S
96
I Want to Change the Language for Messages and Menus S
96
Maintenance
97
Cleaning
98
Cleaning the Projector's Surface
98
Cleaning the Lens
98
Cleaning the 3D Glasses
98
Cleaning the Air Filter
98
Replacing Consumables
100
Replacing the Lamp
100
Lamp Replacement Period
100
How to Replace the Lamp
100
Resetting the Lamp Hours
103
Replacing the Air Filter
103
Air Filter Replacement Period
103
How to Replace the Air Filter
103
Appendix
105
Optional Accessories and Consumables
106
Optional Accessories
106
Consumables
107
Screen Size and Projection Distance
108
Projection Distance for EB-W16/EH-TW550/EH-TW510
108
Supported Monitor Displays
110
Supported Resolutions
110
Computer Signals (Analog RGB)
110
Component Video
110
Composite Video
110
Input Signal from the HDMI Port
110
3D Input Signal
111
Specifications
112
Projector General Specifications
112
Appearance
117
Glossary
118
General Notes
120
About Notations
120
Trademarks and Copyrights
120
Index
122
