Name Function
E
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.59
F
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.41
G
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.40
H
Remote receiver
Receives signals from the remote control.
I
Sensor (EB-W16 only)
Sensor for detecting the screen frame.
J
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.98
K
Air filter cover section
Place your finger to open the air filter cover.
s "Replacing the Air Filter" p.103
L
Speaker
Outputs audio.
M
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.68
N
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.84
O
Control panel
Operates the projector.
s "Control Panel" p.13
P
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.100
Q
Horizontal keystone
adjuster (EH-TW550/
EH-TW510 only)
Corrects horizontal distortion in the projected image.
s "Correcting manually" p.35

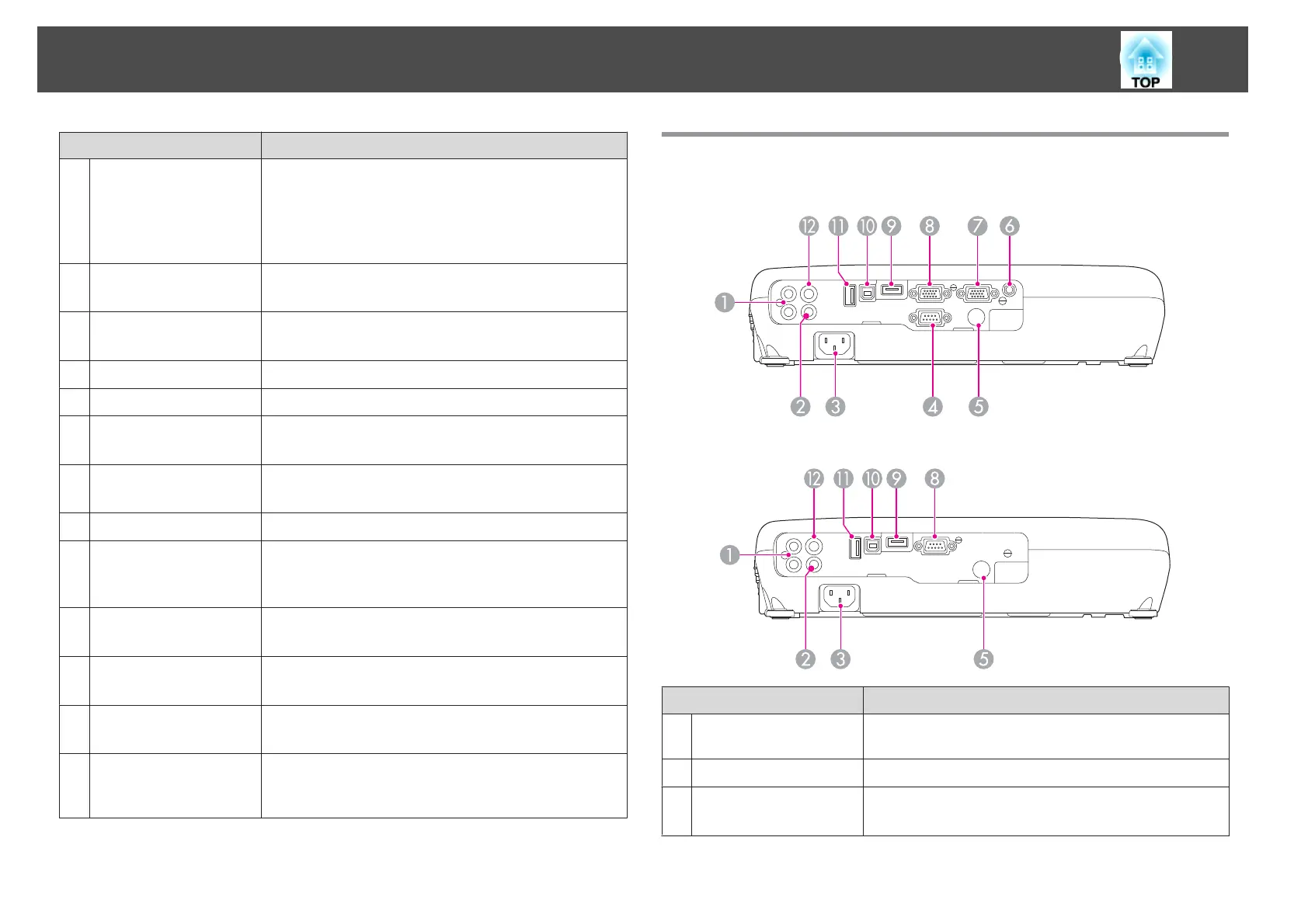

Rear
EB-W16
EH-TW550/EH-TW510
Name Function
A
Audio-L/R port
Inputs audio from equipment connected to the Computer
port, the S-Video port, or the Video port.
B
Video port
Inputs composite video signals from video sources.
C
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.28
Part Names and Functions
11
