The illustrations are for EB-W16.
The port name, location, and connector orientation differ depending on the source being connected.

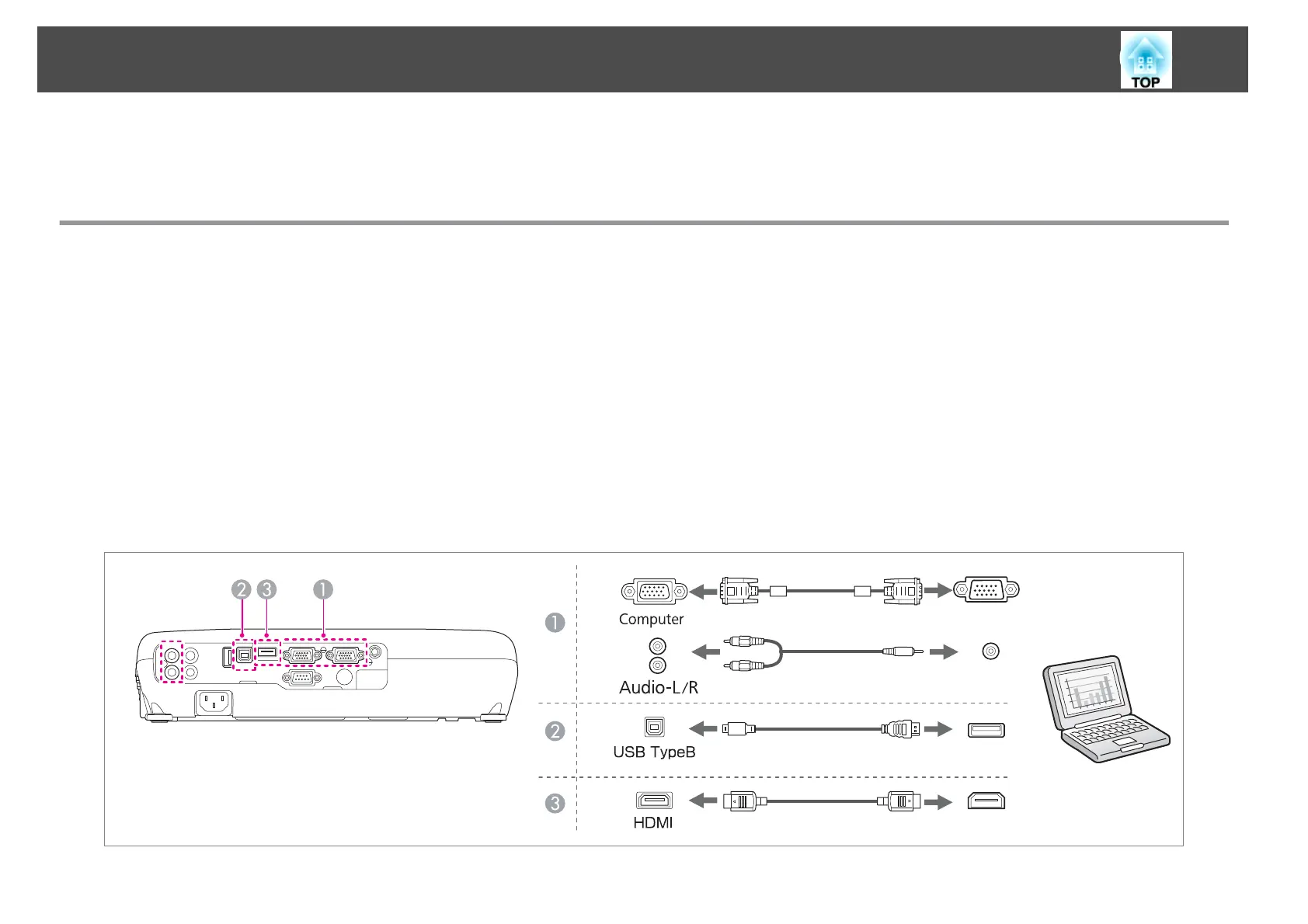

Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
A
When using the supplied or commercially available computer cable
Connect the computer's display output port to the projector's Computer port.
You can output audio from the projector's speaker by connecting the audio output port on the computer to the projector's Audio-L/R port using a commercially available audio
cable.
B
When using the supplied or commercially available USB cable
Connect the computer's USB port to the projector's USB(TypeB) port.
You can send the computer's audio with the projected image.
C
When using a commercially available HDMI cable
Connect the computer's HDMI port to the projector's HDMI port.
You can send the computer's audio with the projected image.
Connecting Equipment
22
