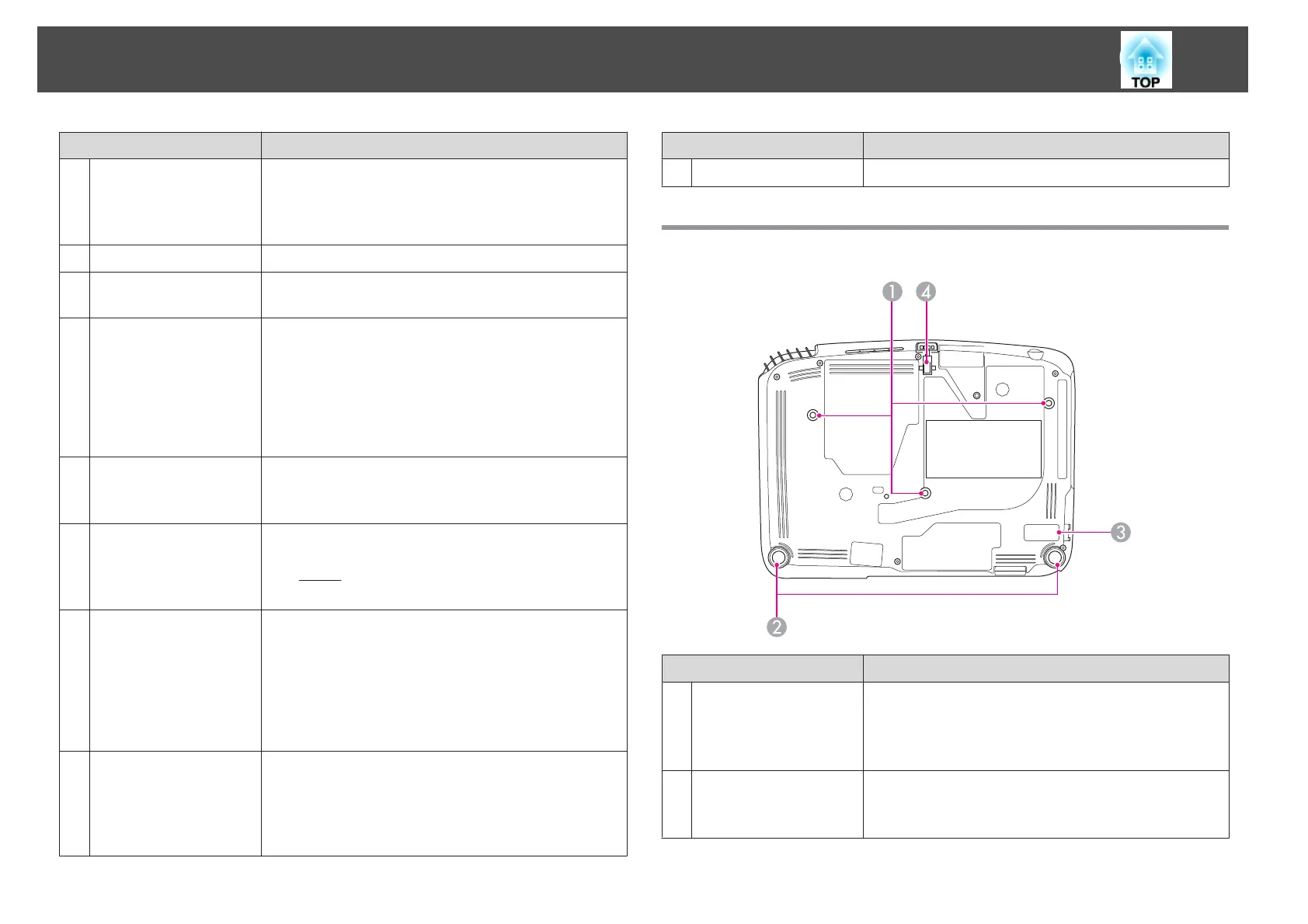

Epson EB-W16 User Manual

Name Function
D
RS-232C port (EB-W16
only)
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands (EB-W16 only)" p.69
E
Remote receiver
Receives signals from the remote control.
F
Audio Out port (EB-
W16 only)
Outputs audio from the currently projected image to an
external speaker.
G
Monitor
Out/Computer2 port
(EB-W16 only)
• Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
• When Monitor Out Port is set to Computer2 from the
Configuration menu, image signals from a computer
and component video signals from other video sources
are input.
H
Computer1 or
Computer port
Inputs image signals from a computer and component
video signals from other video sources.
I
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.22
J
USB(TypeB) port
• Connects the projector to a computer using a USB cable,
and projects the images on the computer.
s "Projecting with USB Display" p.30
• Connects the projector to a computer using a USB cable
to use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.62
K
USB(TypeA) port
• Connects a USB memory device or a digital camera and
projects movies or images using PC Free.
s "Projecting Without a Computer (PC Free)"
p.53
• Connects the optional Document Camera.
Name Function
L
S-Video port
Inputs S-Video signals from video sources.
Base
Name Function
A
Ceiling mount fixing
points (three points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.20
s "Optional Accessories" p.106
B
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.41
Part Names and Functions
12
