Maintenance 14. Calibration
G3 Rev.14 171

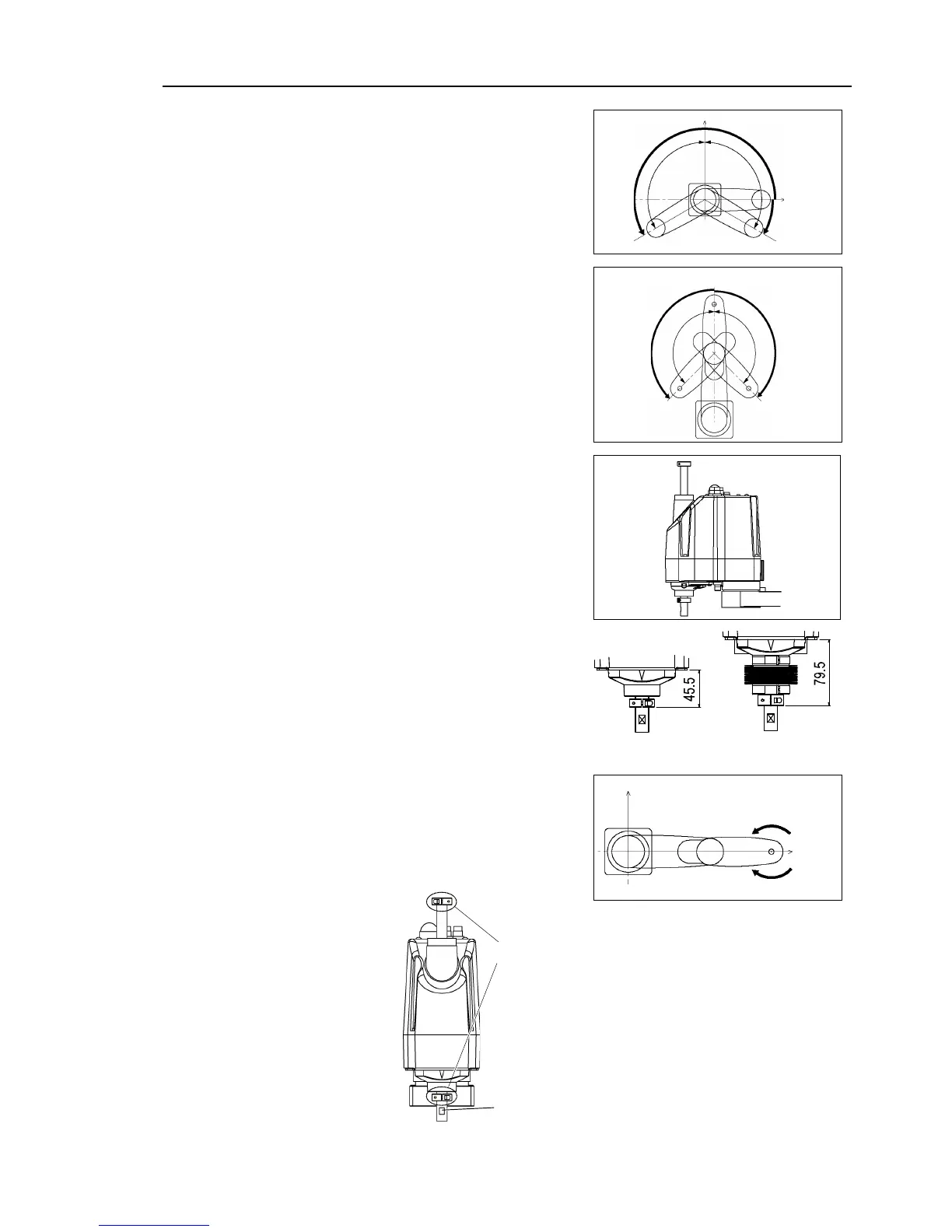

0 pulse position of Joint #1:
position aligned with X-axis in
Robot coordinate system
0 pulse position of Joint #2:
position where Arms #1
and #2 are in a straight line
(Regardless of the Joint #1
direction.)
0 pulse position of Joint #3:
upper limit position in
motion range
The height of Joint #3
depends on manipulator
model.
Standard model Cleanroom model
0 pulse position of Joint #4:
position where the flat surface
(or groove in the up/down
mechanical stop) on the shaft
faces toward the tip of Arm #2
To Next Page
