Maintenance 14. Calibration
182 G3 Rev.14

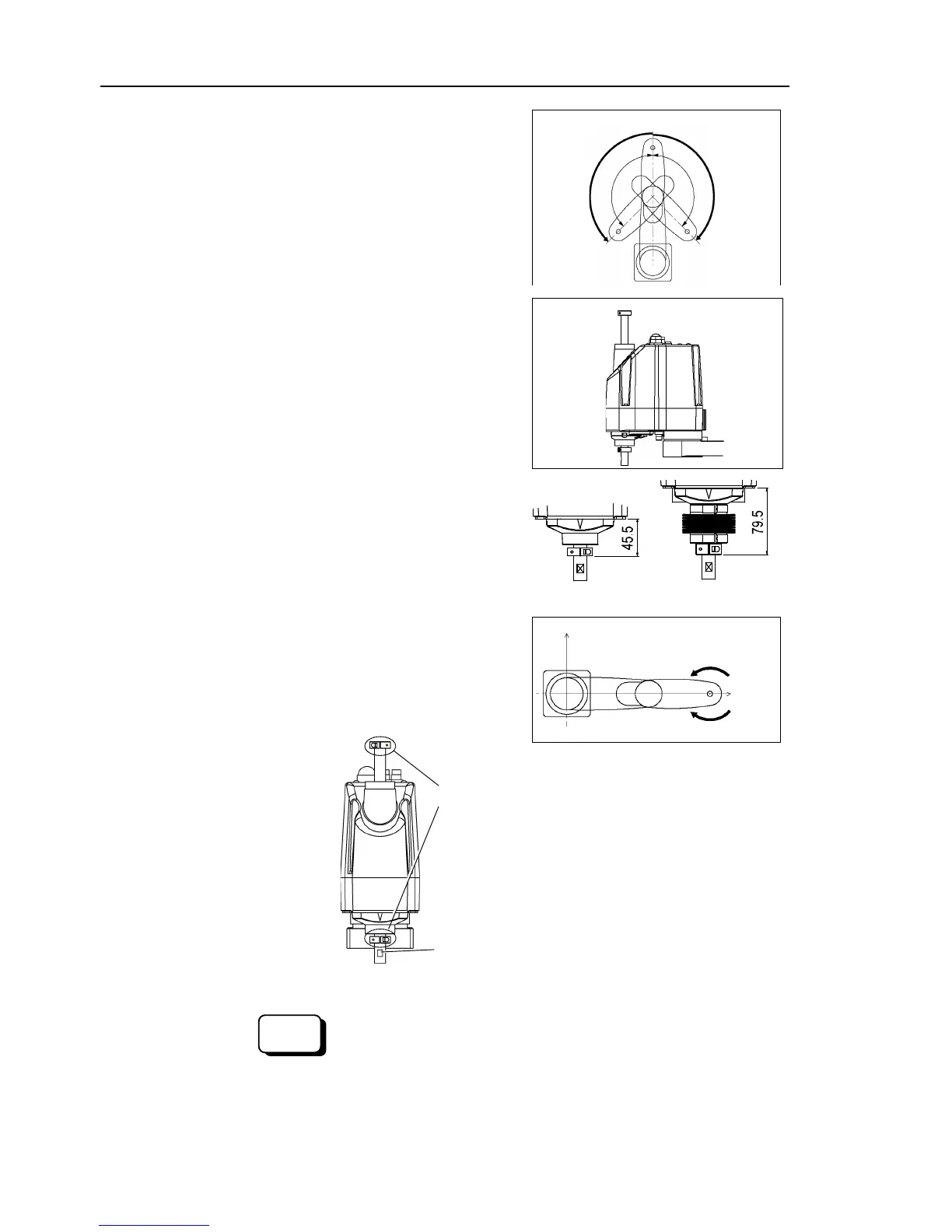

0 pulse position of Joint #2:
position where Arms #1 and
#2 are in a straight line
(Regardless of the Joint #1
direction.)
0 pulse
0 pulse position of Joint #3:
upper limit position in
motion range
The height of Joint #3
depends on manipulator
model.
Standard model
Cleanroom model
0 pulse position of Joint #4:
position where the flat surface
(or groove in the up/down
mechanical stop) on the shaft
faces toward the tip of Arm #2
Groove
Flat surface
0 pulse
(3)
-3 Connect EPSON RC+ to the Controller.
Select the robot to be calibrated. Input as below in the [Command
Window] and execute.
(This example uses “robot 1”.)
> robot 1
EPSON
RC+ 7.0
