Maintenance 4. Cable
82 LS Rev.10
(15)
Remove
the nut that secures the cable duct fittings to the User Plate and pull out the
cables from the User Plate.

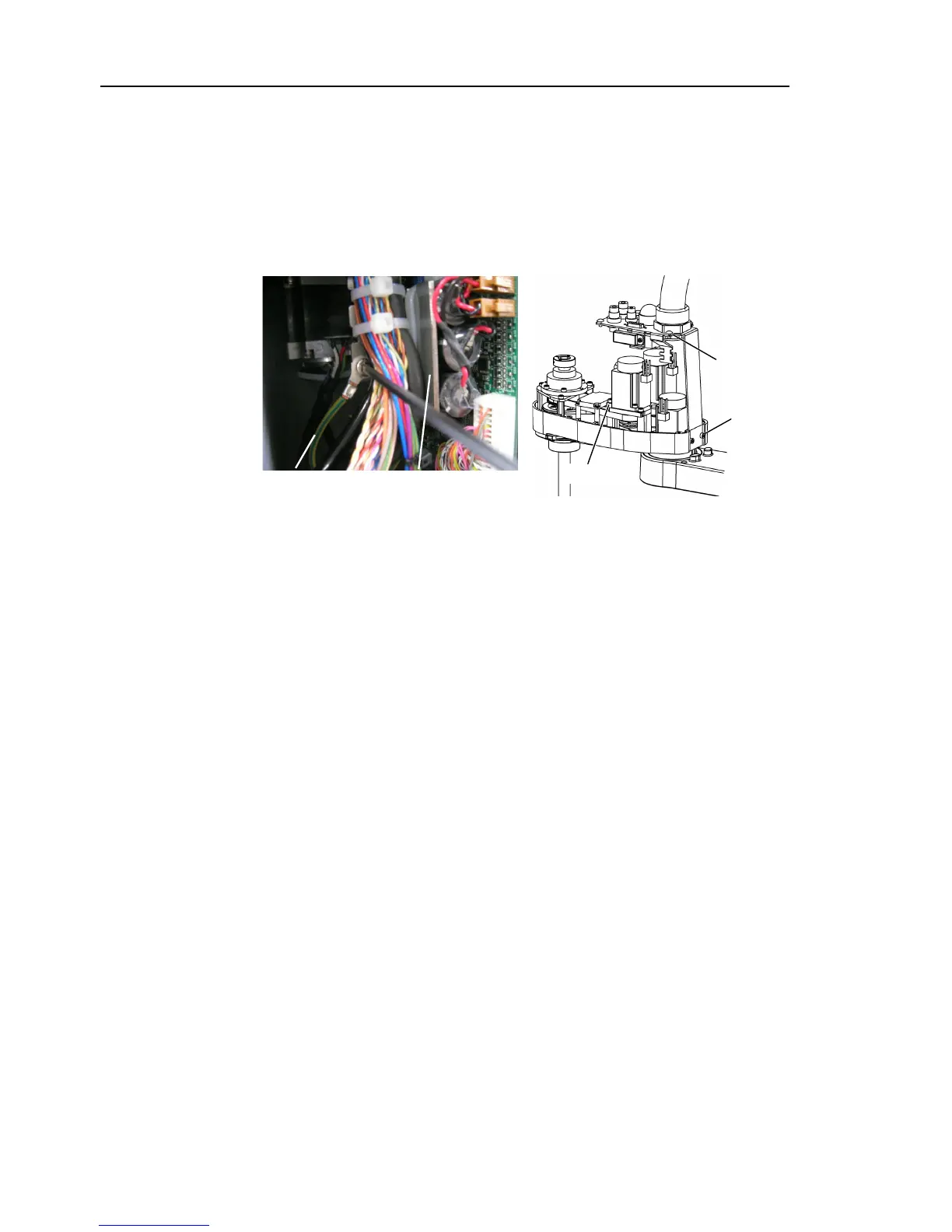

(16)
Remove the nut that secures the cable duct fittings to the Base.
Remove the signal connector X20 connected to the resolver
board (at the back side)
and pull out the cables from the Base.
Base side
Ground Wire
Cable Mounting Plate
Arm #2 side
Nut
2-M4×10
Ground wire
