7-8

7.2.4

Removing the ASF Cassette

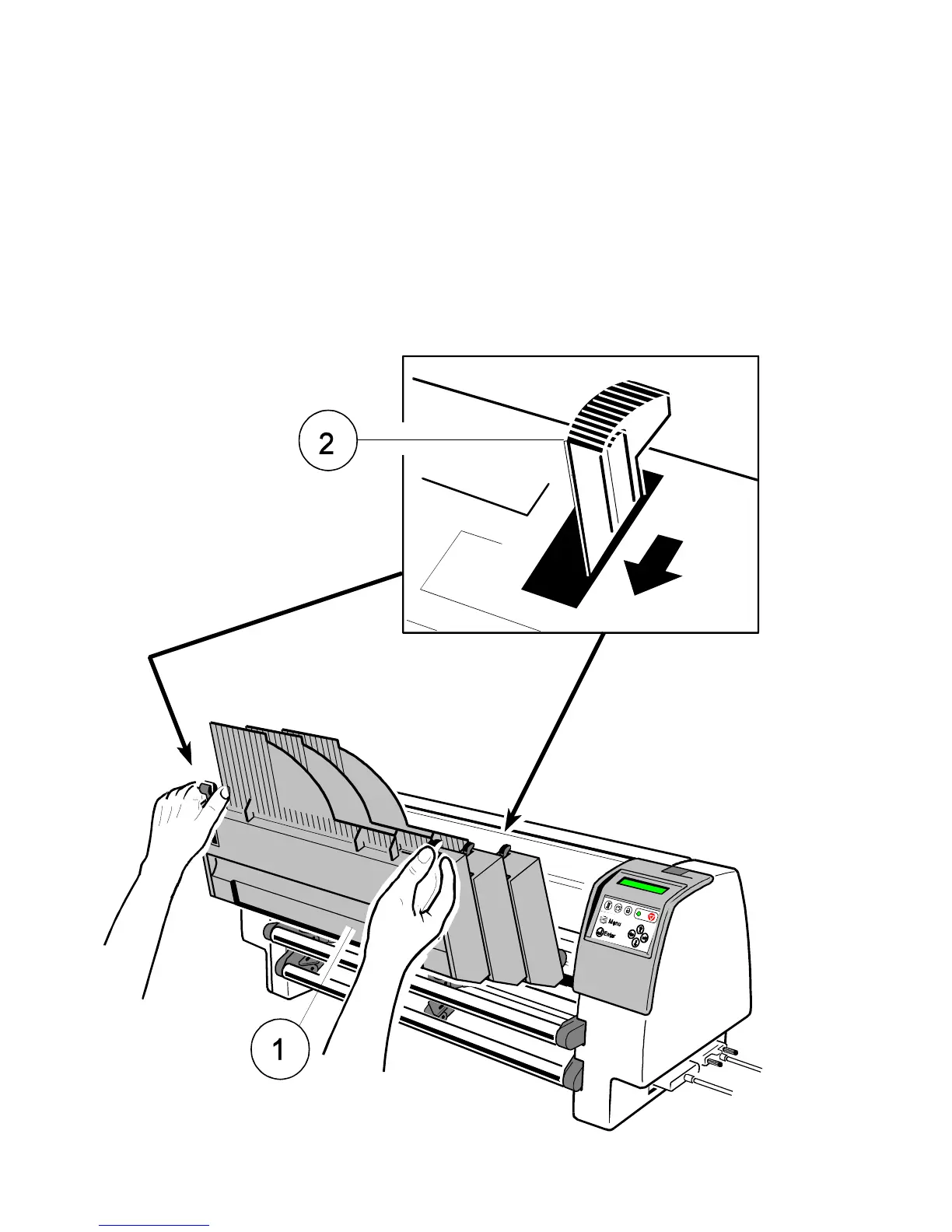

Remove the ASF cassette (1) from the printer by drawing back both release

levers (2).

Note:

To remove all AFS cassettes together release only the ASF cassette in

position 1. If the ASF cassettes shall be removed individually start the

removal procedure with the last mounted ASF cassette.

Default Chapter7
