Appendix A System Interface Description
A-7
1.2.3
Serial Interface with RS-422
This interface typ requires the signal lines.
$
Pin
1
Protective Ground (PG)
$
3
Receive Data (RDA)
$
9
Send Data (SDA)
$
10
Not Send Data (SDB)
$
18
Not Receive Data (RDB)

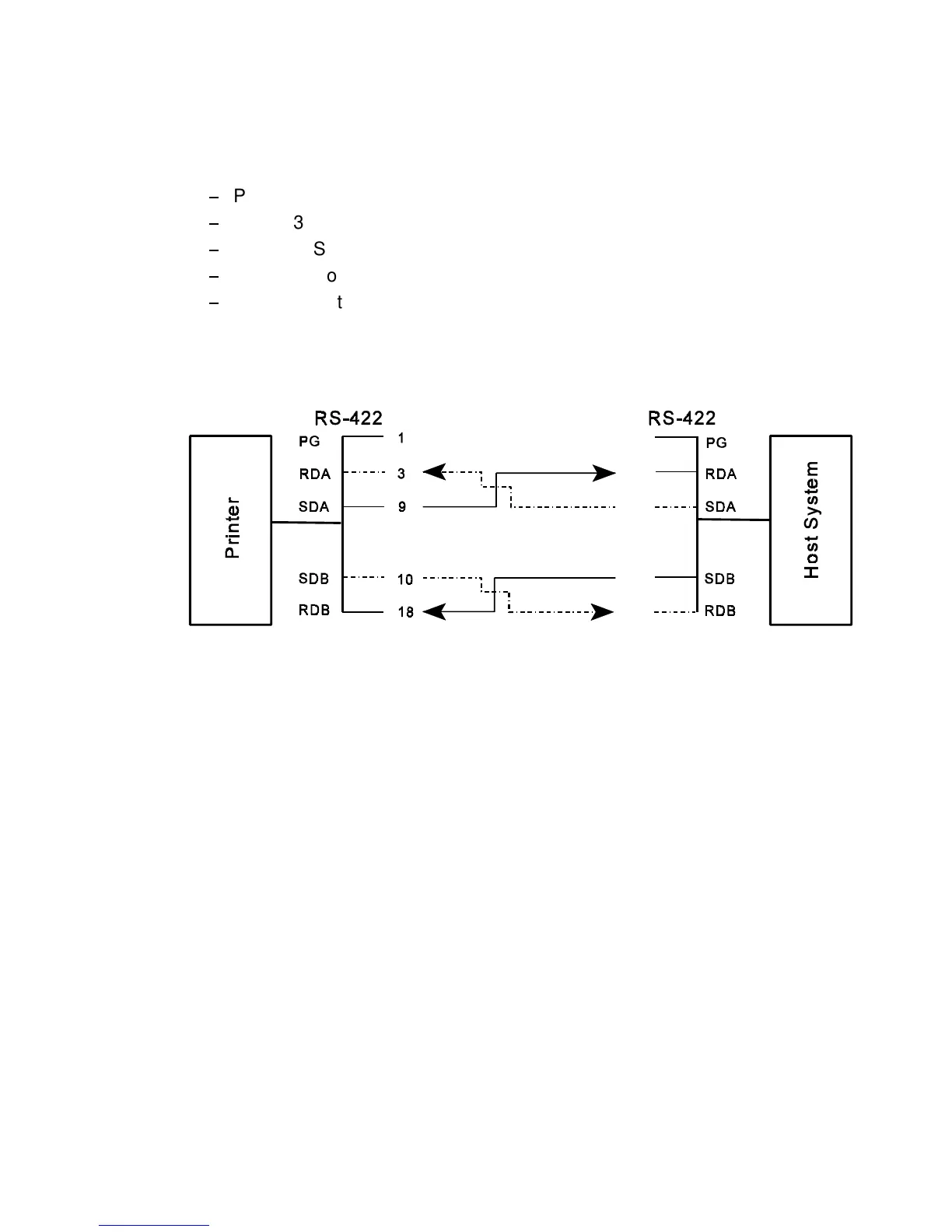

Standard Connection
Note:
Protective ground (PG) connected either to host
or
printer
159
161
Table of Contents
Default Chapter
7
Table of Contents
7
Preface
14
About this Manual
14
Getting Started
17
Unpacking
17
Delivery Contents Printer PP 803
19
Delivery Contents Printer PP 806
20
Delivery Contents Printer PP 809
21
Requirements to the Location of the Printer
22
Environment Conditions
22
Preconditions for Installation
22
Power Requiremens
22
Remove Transport Lock
23
Re-Packing Information
24
Installing Thepersonality Module (PM)
24
Mains Connection and Power on
25
Ribbon Installation
26
Replacing the Ribbon Cassette
27
Paper Loading
28
Paper Source Selection
28
Fanfold Paper Feeding
29
Manual Sheet Feeding
33
Sample: PRINT MENU PP 803
34
Sample: PRINT MENU PP 806
34
Sample:configuration
38
Sample: PRINT LETTER
39
Sample: PRINT LINES
40
Connecting to the System
41
Parallel/Serial Interface
41
Installing the Printer Drivers
41
Emulation Selection
42
Printer Operation
43
Operator Panel
43
Function Keys
44
Ready Mode
44
Local Mode
44
Liquid Crystal Display (LCD)
48
Menu Mode
50
To Activate the Menu
51
Paper Source
52
To Confirm Selection
53
How to Save Settings
54
Configuring the Printer
55
Standard Configuration
57
For Printer PP 803
57
For Printer PP 806
58
For Printer PP 809
59
Explanation of the Printout
60
Menu Structure
61
Menu Tree PP 803
61
Menu Tree PP 806
62
Menu Tree PP 809
63
Menu Item Description
64
Test Modes
64
Select Macro
64
Paper Source
65
Paper Exit
65
Print Position Adjustment
66
Page Length
67
Print Quality
67
Font
67
Pitch
68
Line
68
Emulation
68
Character Set
69
Left Margin
70
Right Margin
71
Line Mode
71
Perforation Skip
71
Tear off / Cut Mode
72
Interface
72
Cut Device (Option)
73
Cutter Vertical Position Adjustment
74
AGC Position
74
Language
74
Recall Factory
75
Program Update
75
Menu Access
75
Save Menu
76
Explanatiion of the Individual Menu Items
76
Main Functions
76
Test Modes
76
Define Macro
76
Installation
76
Test Modes
77
Define Macro
78
Select Macro
78
Paper Source
78
Paper Exit
78
Print Pos. Adj
79
Print Quality
80
Font
80
Pitch
81
Line
81
Emulation
81
Character Set
81
Left Margin
82
Right Margin
82
Line Mode
82
Perf. Skip
83
Tear off Mode / Cut Mode
83
Intallation
85
Interface
85
I/F Type
85
Word Length
85
Baud Rate
85
Parity Bit
85
Protocol
85
I/F Buffer
86
Dsr / Cts Mode
86
Agc Position
87
Language
88
Recall Factory
88
Program Update
88
Menu Access
88
Maintenance
89
Preferred Materials
89
Configuration
90
Cleaning Procedure
91
Open the Front Cover of the Printer
92
User Replaceable Parts
93
Print Head Exchange
93
Troubleshooting and Diagnostics
100
How to Use this Section
100
Power-Related Problems
101
Error Messages
101
No Printout
106
Operation-Related Problems
107
Print-Related Problems
108
Ribbon or Carriage-Related Problems
110
Print Tests
110
Diagrams for Failure Analysis
111
Locking Procedure
111
Ribbon Unfasten Procedure
112
Ribbon Error
113
Remove Paper
114
Paper Jam TRF
115
Paper Jam ASF or Manual
116
Gap Error
117
Options
118
Printer Stand
118
Stacker Option
120
Automatic Sheet Feeder Cassettes (ASF) (Only Printer PP 806)
121
Prepare the ASF Cassette
122
Installing the ASF Cassette
123
Removing the ASF Cassette
125
Replacement of the ASF Pick-Up Rollers (Only Printer PP 806)
128
To Remove the ASF Pick-Up Rollers
128
To Install the Pick-Up Rollers
129
Cut Sheet Tray (Only Printer PP 803 / PP 806 )
130
Installing the Cut Sheet Tray
130
Manual Sheet Feeder (Only Printer PP 803 )
131
Technical Data
133
Performance
135
Tractor Feed
136
Tractor Cassette (Only Printer PP 803 )
137
Paper Cutter (Only Printer PP 803 )
138
Printer Specification
139
Performance
141
Options
144
Printer Stand
144
Automatic Sheet Feeder Cassette a (Only PP 806 )
144
Cut Sheet Tray
146
V-Stacker Support
146
Printer Specification
147
Performance
149
Paper Handling
150
Tractor Feed
150
Options
151
Printer Stand
151
V-Stacker Support
151
8.1 Pp 803
141
Connectivity
152
Appendix F Barcode Quick Reference
153
Appendices
154
Appendix A System Interface Descriptions
154
Serial Interface RS 232C
155
Interface Characteristics
155
Transmission Protocols and Connection Diagrams
156
DTR - Ready/Busy
156
Serial Interface with
160
Parallel Centronics Interface
161
Interface Characteristics - Connector Pin Assignment
161
Transmission Protocol Description
162
Timing Diagram
163
Shared Operation
164
Appendix B Print Samples of Resident Fonts
165
Appendix C Character Set Tables
176
Appendix C Character Set Tables
177
Appendix Dibm Proprinter Quick Reference
215
Appendix E EPSON LQ 2550 / ESC/P2 / Barcodes Quick Reference
284
Appendix G
284
Information for the System Manager
284
