Replacement of the ASF Pick-up Rollers
(only printer
PP 806
)
The ASF pick-up rollers (1) have an expected life time of approximately
200,000 pages.
7.3.1
To Remove the ASF Pick-up Rollers (1)
$
Remove the ASF cassette (see
7.2.4 Removing the ASF Cassette
).
$

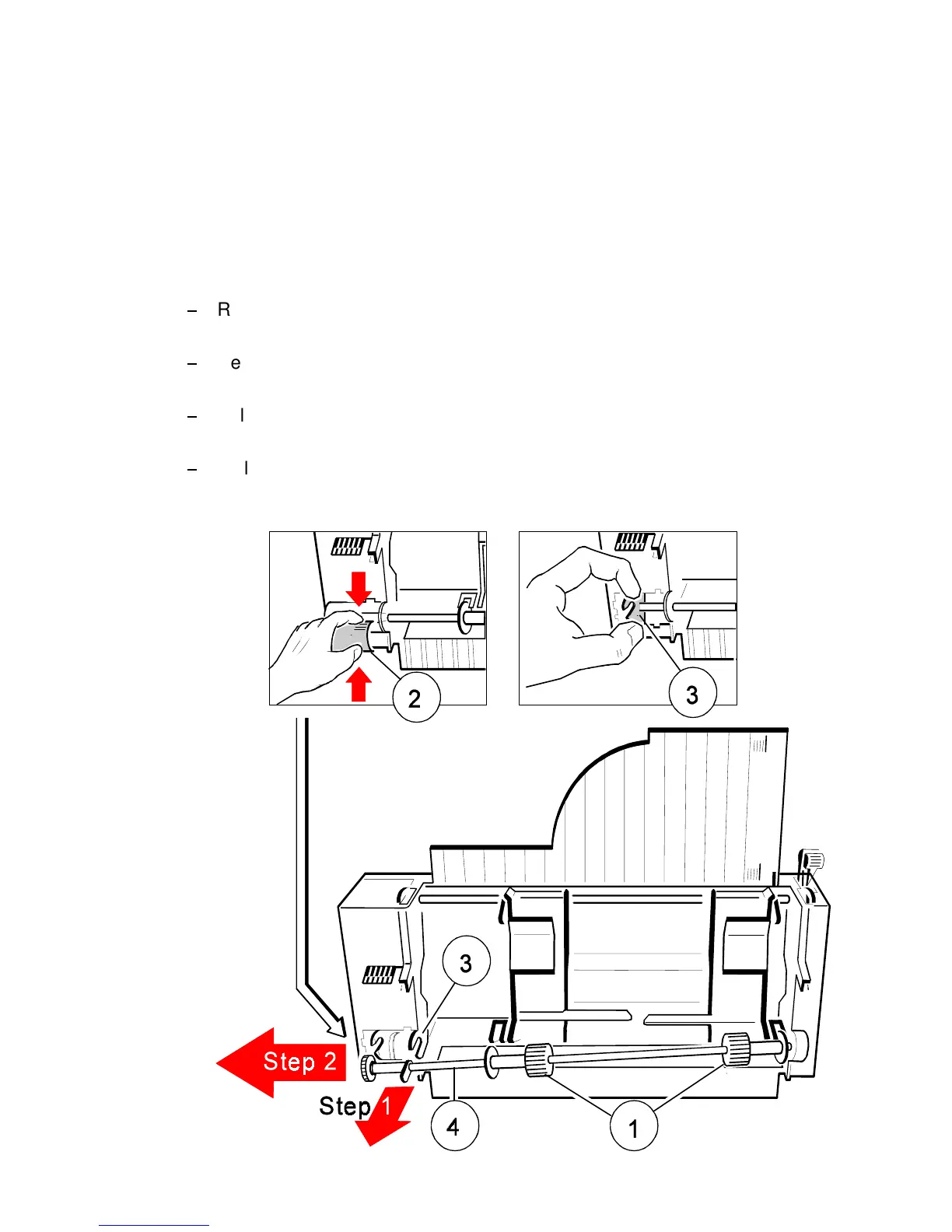

Remove the small access cover (2) by squeezing it as shown.
$
Pull back the retainers (3) as shown and lift the shaft (4) (step 1).
$
Pull the shaft (4) out of the cassette (step 2) and slide the pick-up rollers (1)
off the shaft (4).
