Appendix A System Interface Description
A-5
1.2.2 XON / XOFF

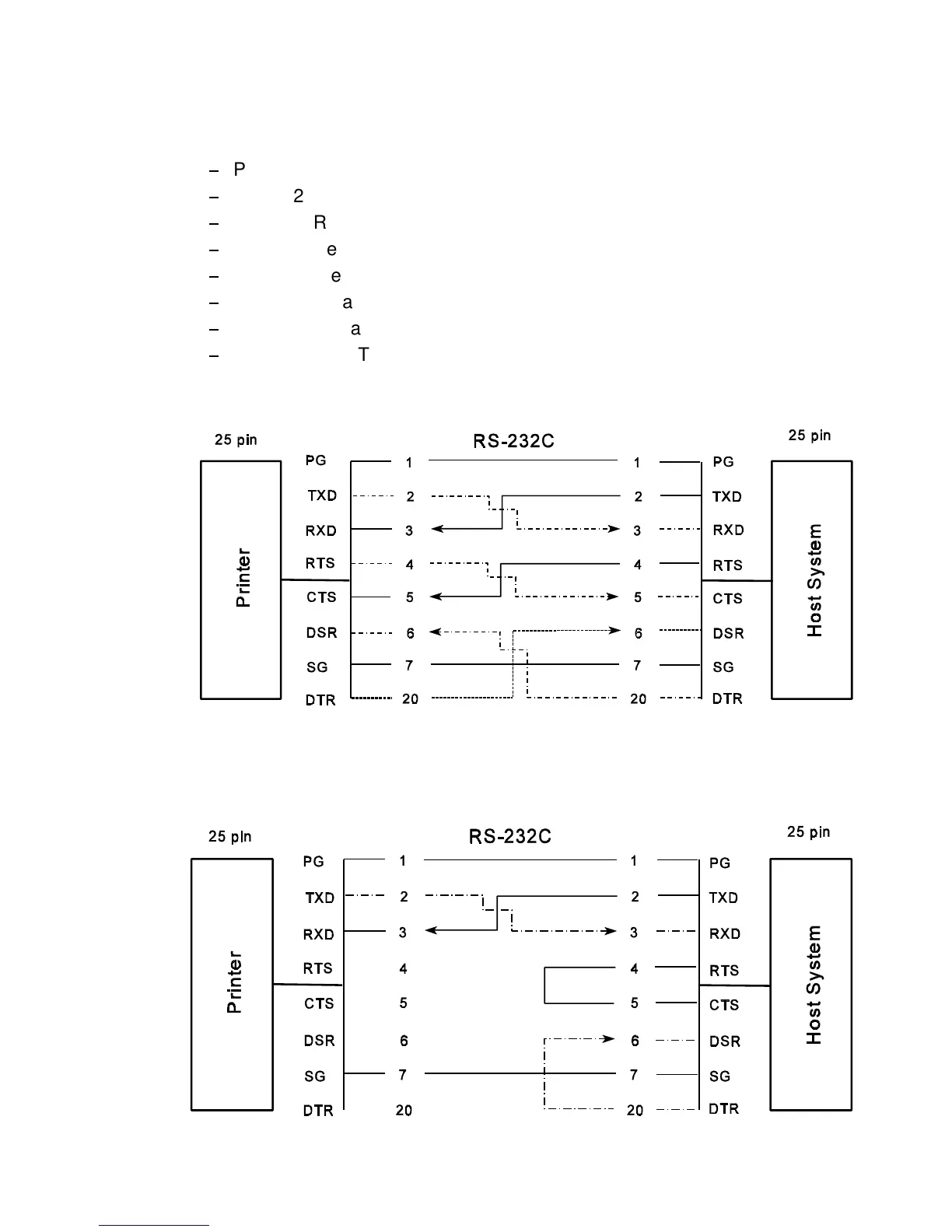

This protocol requires all signal lines.
$
Pin 1 Protective Ground (PG)
$
2 Transmit Data (TXD)
$
3 Receive Data (RXD)
$
4 Request to Send (RTS)
$
5 Clear to Send (CTS)
$
6 Data Set Ready (DSR)
$
7 Signal Ground (SG)
$
20 Data Terminal Ready (DTR)
Standard Connection
For local connections
RTS
with
CTS
can be connected and likewise
DTR
with
DSR
.
