Step 1:

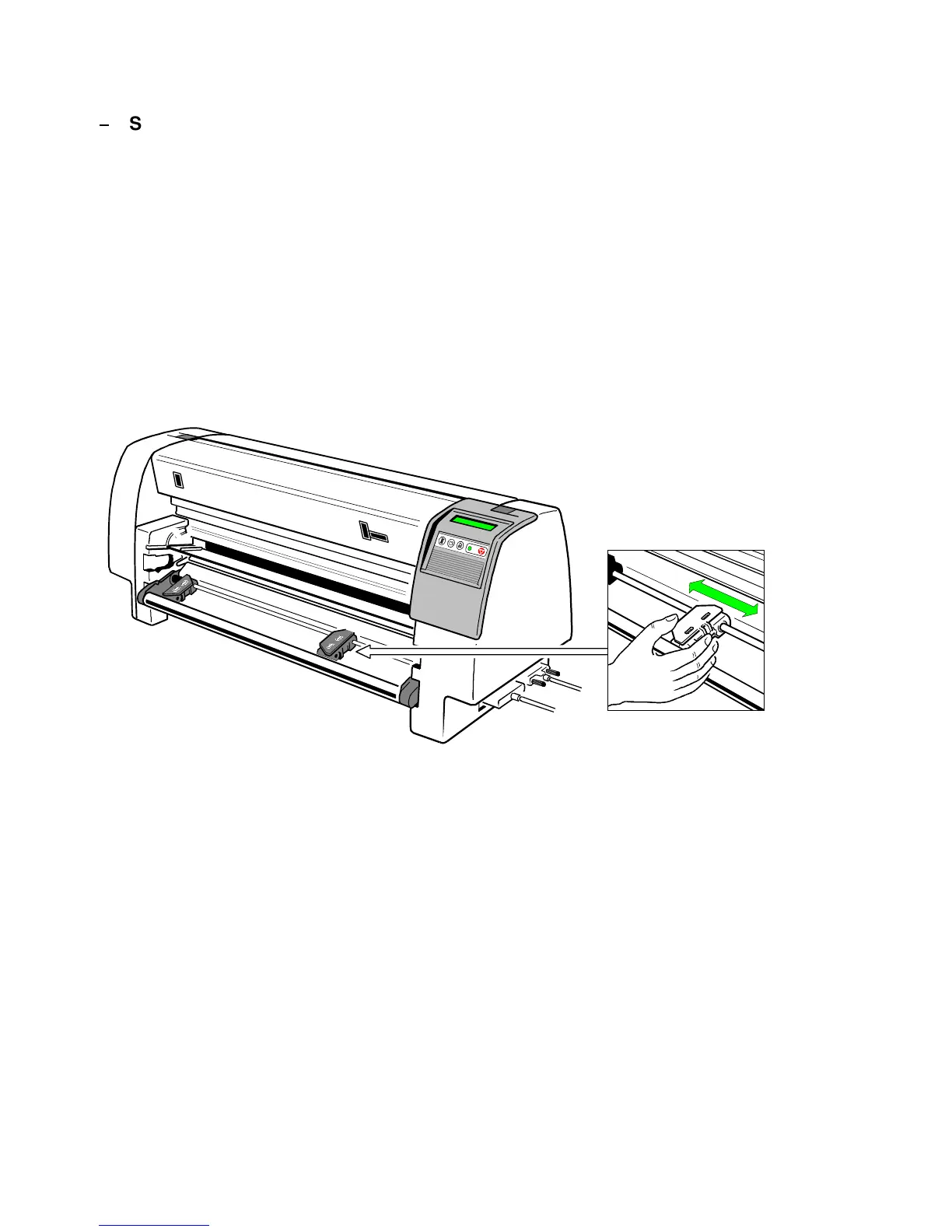

The paper width will be adjust with the right tractor. The left

tractor is fix. Adjust the right tractor as shown in the picture below

roughly to the paper width.

Note:

Don´t move the tractor with open tractor cover because it may

break off!
