Installing a Security Cable

Transporting the Projector

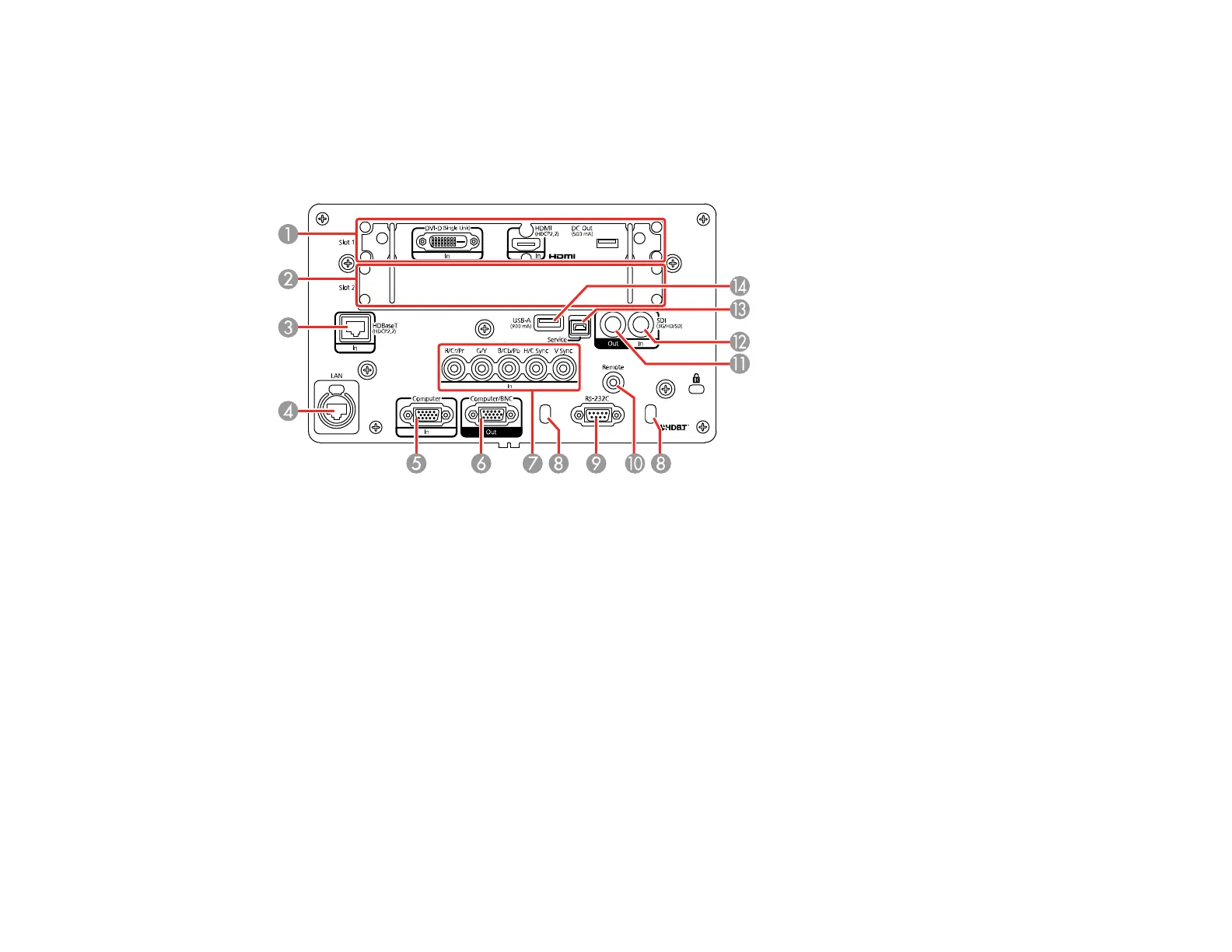

Projector Parts - Interface Ports

1 Slot 1 for installing an interface board (HDMI/DVI-D interface board described below)

2 Slot 2 for installing an optional DisplayPort interface board (described below)

3 HDBaseT port

4 Network LAN port

5 Computer In port

6 Computer/BNC Out port

7 BNC In ports

8 Cable clip slot

9 RS-232C port

10 Remote port

11 SDI Out port

12 SDI In port
