5. External Dimensions / Marking Layout
RX8130CE Jump to Top / Bottom
ETM50E-07 Seiko Epson Corporation 9
5. External Dimensions / Marking Layout
5.1. External Dimensions
RX8130CE
 External dimensions  Recommended soldering
pattern
Unit : mm
3.2  0.2 (Typ.3.24)
"CE"PKGRev.04
2.5±0.2 (Typ.2.54)

1.0Max.
0.7
0.3
0.62
0.42
0.2Min.
0.4
0.35
0.7
0.4
0.9
1.1
0.3
0.7
0.4
0.9
1.1
Type.1 (for small mounting area)
Type.2

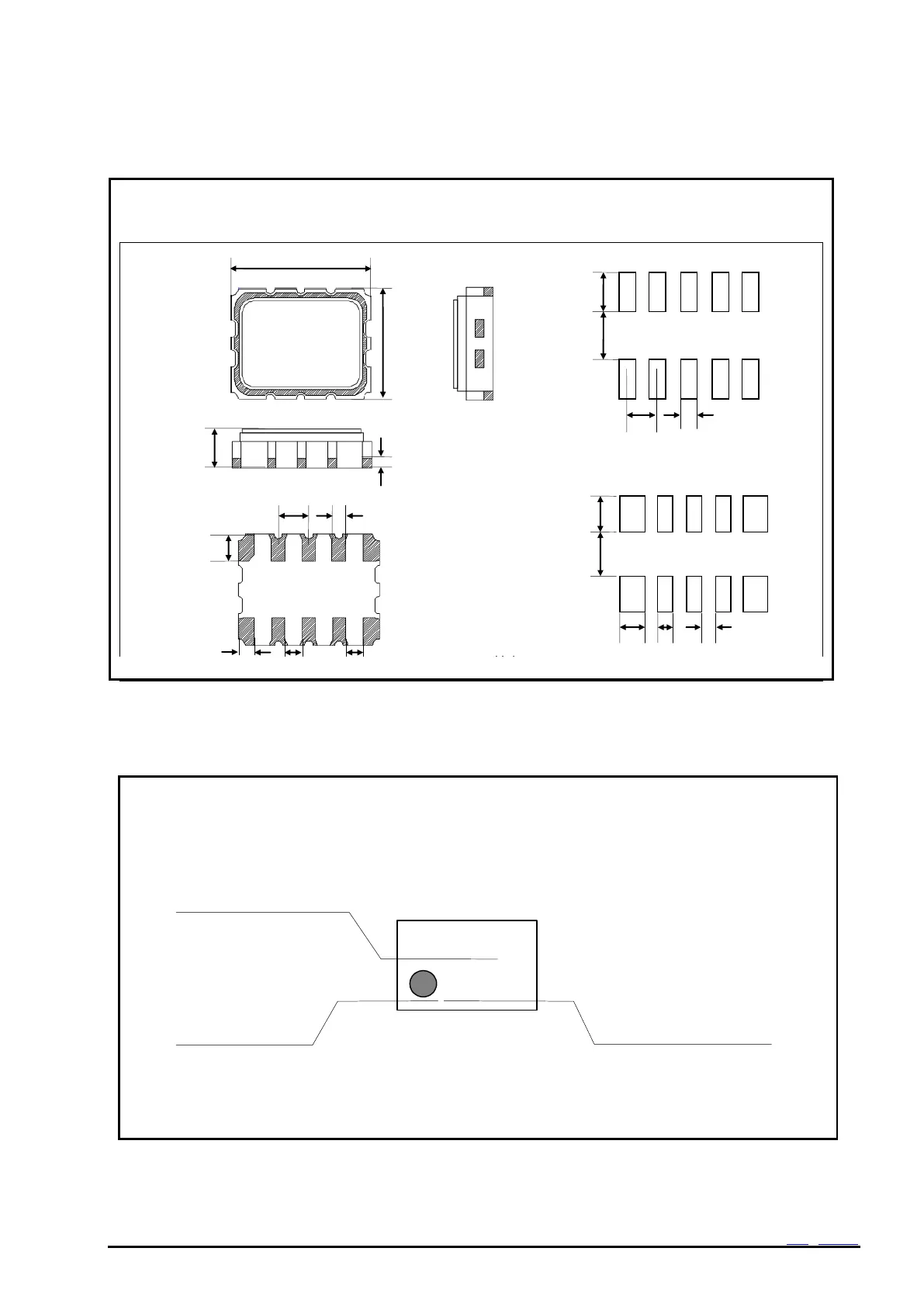

Figure 7 External Dimension and Soldering pattern
5.2. Marking Layout
RX8130CE
#1 Pin Mark
Model
Production lot
R8130

A123B
Contents displayed indicate the general markings and display, but are not the standards for the fonts, sizes and positioning.
Figure 8 Marking Layout
