15 Battery backup switchover function
RX8130CE Jump to Top / Bottom
ETM50E-07 Seiko Epson Corporation 47
15.7. Power supply control
By setting battery backup registers (INIEN, CHGEN), the RX8130CE operates like following either in re-
chargeable battery or non-re-chargeable battery operation.

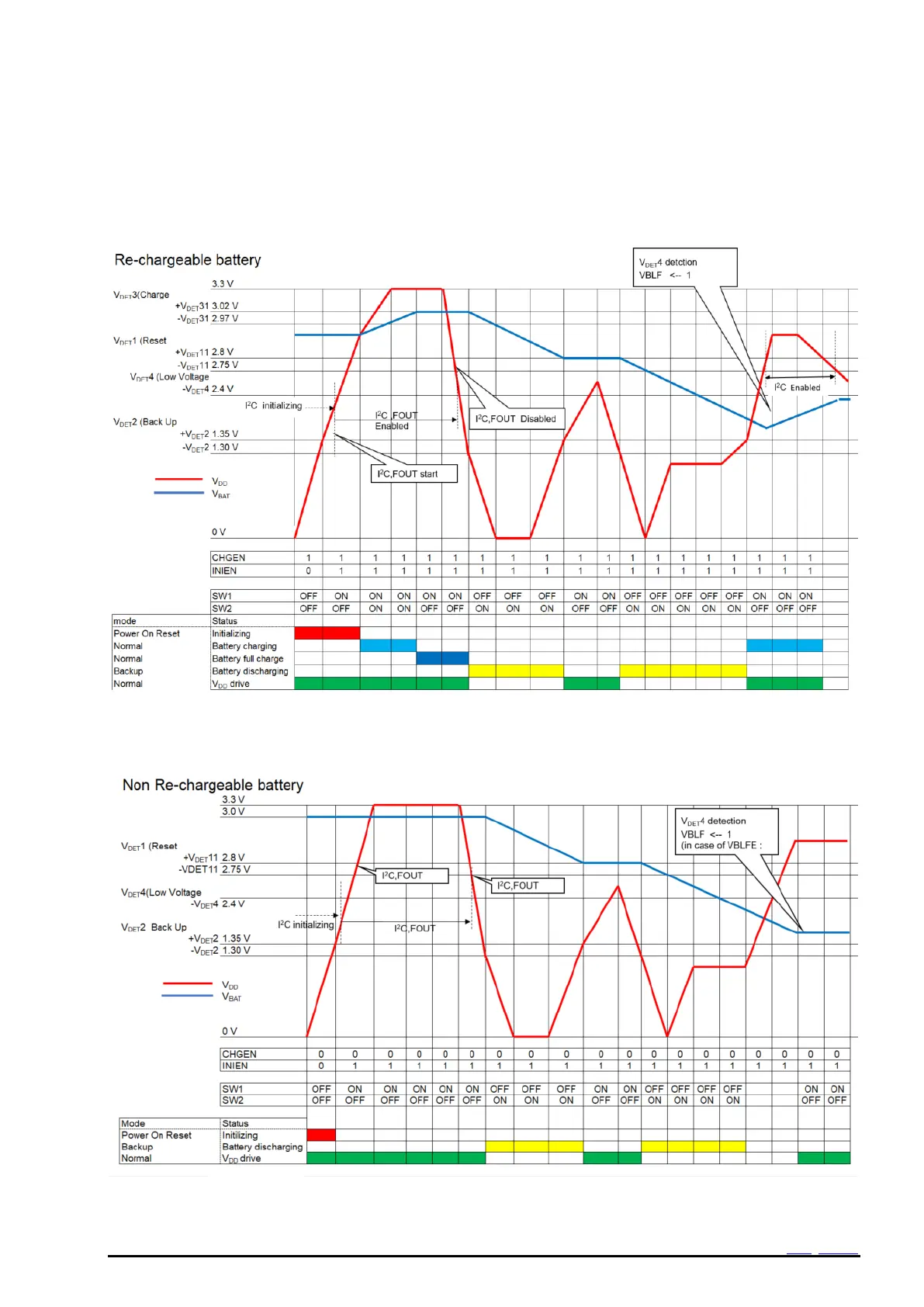

Figure 35 Re-chargeable battery operation
Figure 36 Non re-chargeable battery operation
