20 Circuit Diagram connection

RX8130CE Jump to Top / Bottom

ETM50E-07 Seiko Epson Corporation 63

20 Circuit Diagram connection

20.1 Typical MCU connection

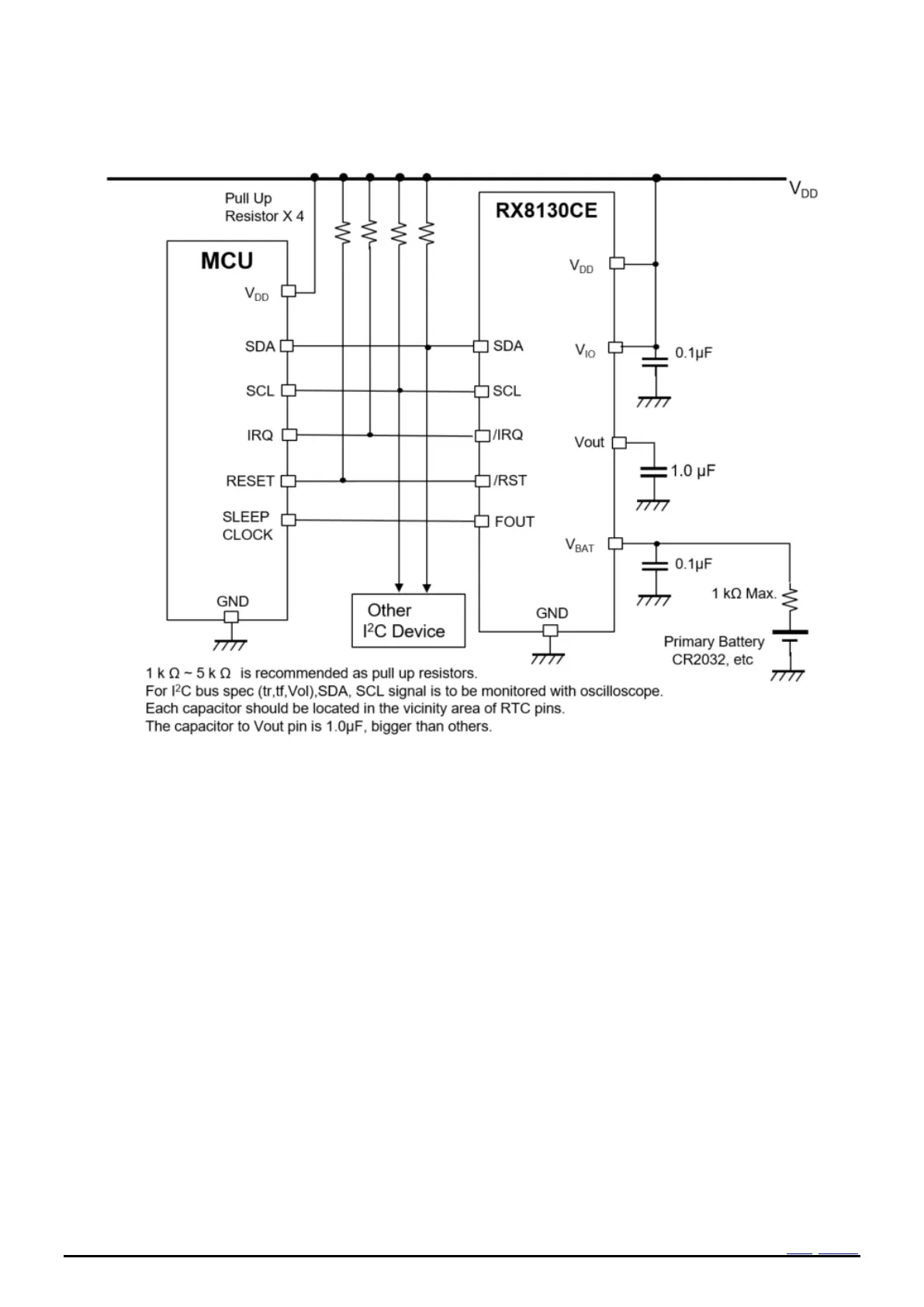

Figure 49 Typical MCU connection
