EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 121
10. Remove the Ink system unit (Cap unit and Pump unit) carefully.
.
11. Remove four gears (Combination gear 16.32, Spur gear 25.6 with the Change
lever, Spur gear 27.2, Combination gear 18.28) and the Pump pulley, and get out
of the ink tube from the Ink system frame.
12. Remove the Waste drain ink pad under the Cap unit from the Lower housing.
CAUTION

When removing the Ink system unit, be careful so that the gears
do not come off from each shaft of the Ink system frame.
CHECK
PO INT

When getting out of the ink tube, check the marking on the ink
tube in advance.

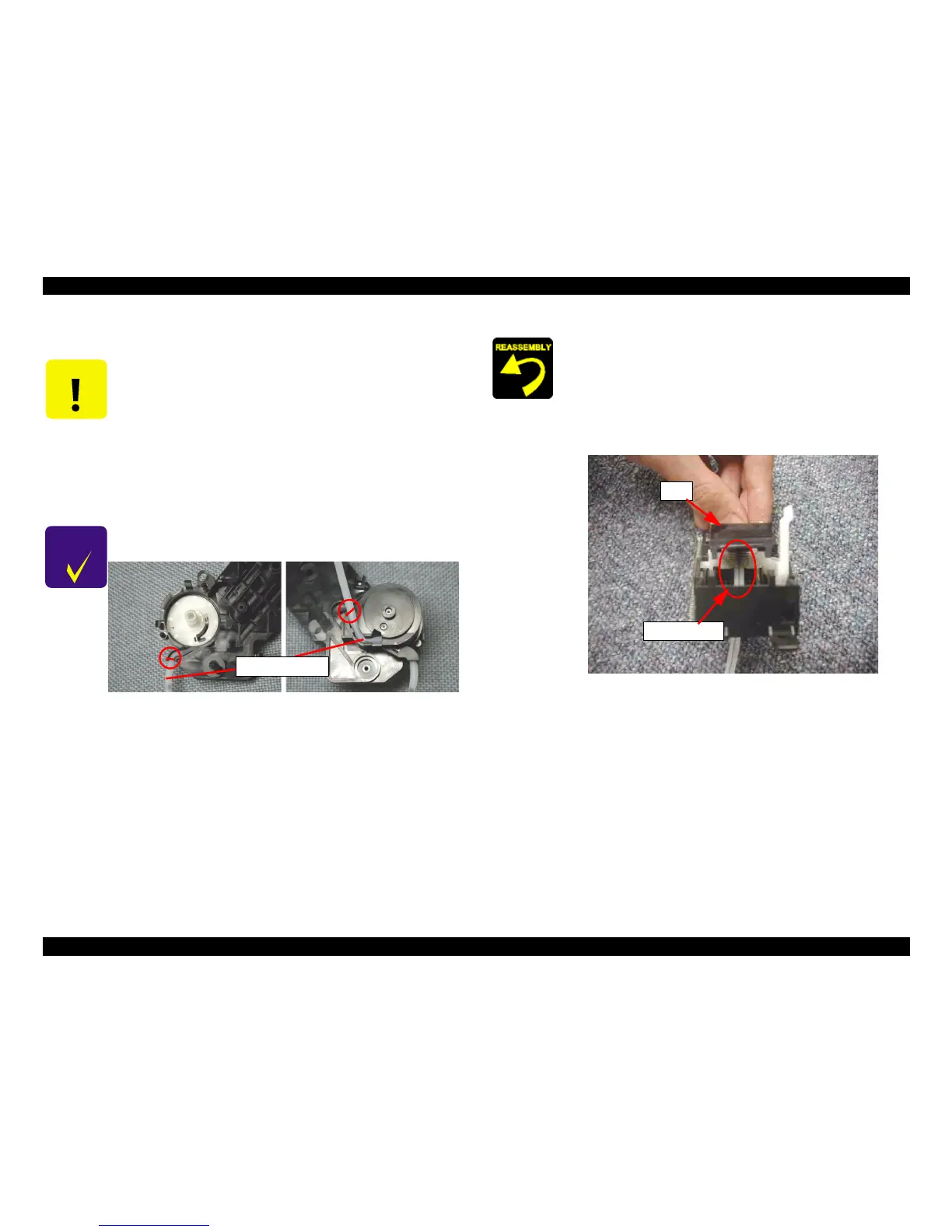

Figure 4-64. Marking position on the Ink tube
Ink tube

When assembling as the Cap unit,

Do not touch the sealing rubber portion and the Cleaner
head of the Cap unit.

Be careful not to crash or leave any stress on the Ink tube.

Make sure to set the marking position of the ink tube as
shown figure below.
Figure 4-65. Pump tube setting position
Wiper
Marking position

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
