EPSON Stylus C50/C60/C61/C62 Revision C
Troubleshooting Unit Level Troubleshooting 70
Power on
Anywhere
When turning on the power, the paper
feeding sequence is performed without
loading a paper in the paper loading
sequence.
ASF unit
1. Check if the Paper return plate operates correctly in the
paper loading sequence.
1. Reassemble the Tension spring 29.1 between
the ASF frame and the Paper return plate.
Holder shaft unit
1. Check if the Torsion spring 0.22 comes off on the both
HP sensor lever and PE sensor lever.
2. The HP/PE sensor is defective.
3. Check if the HP/PE sensor cable comes off.
4. Check if the HP/PE sensor cable is damaged.
5. Check if the HP/PE sensor cable is correctly placed on the
LD shaft holder.
1. Set the Torsion spring 0.22 to the suitable
position of the both levers.
2. Replace the Holder shaft unit with new one.
3. Replace the Holder shaft unit with new one.
4. Replace the Holder shaft unit with new one.
5. Replace the Holder shaft unit with new one.
Operation
Outside HP
When turning on the power, the CR unit
move to the home position correctly.
But, the paper feeding sequence is
performed without loading a paper in the
paper loading sequence.
Holder shaft unit *
1. Check if the Torsion spring 0.22 for the HP sensor lever
comes off.
2. Check if the HP/PE sensor cable is correctly placed on the
LD shaft holder.
1. Set the Torsion spring 0.22 to the suitable
position of the HP sensor lever.
2. .Place the HP/PE sensor cable correctly.

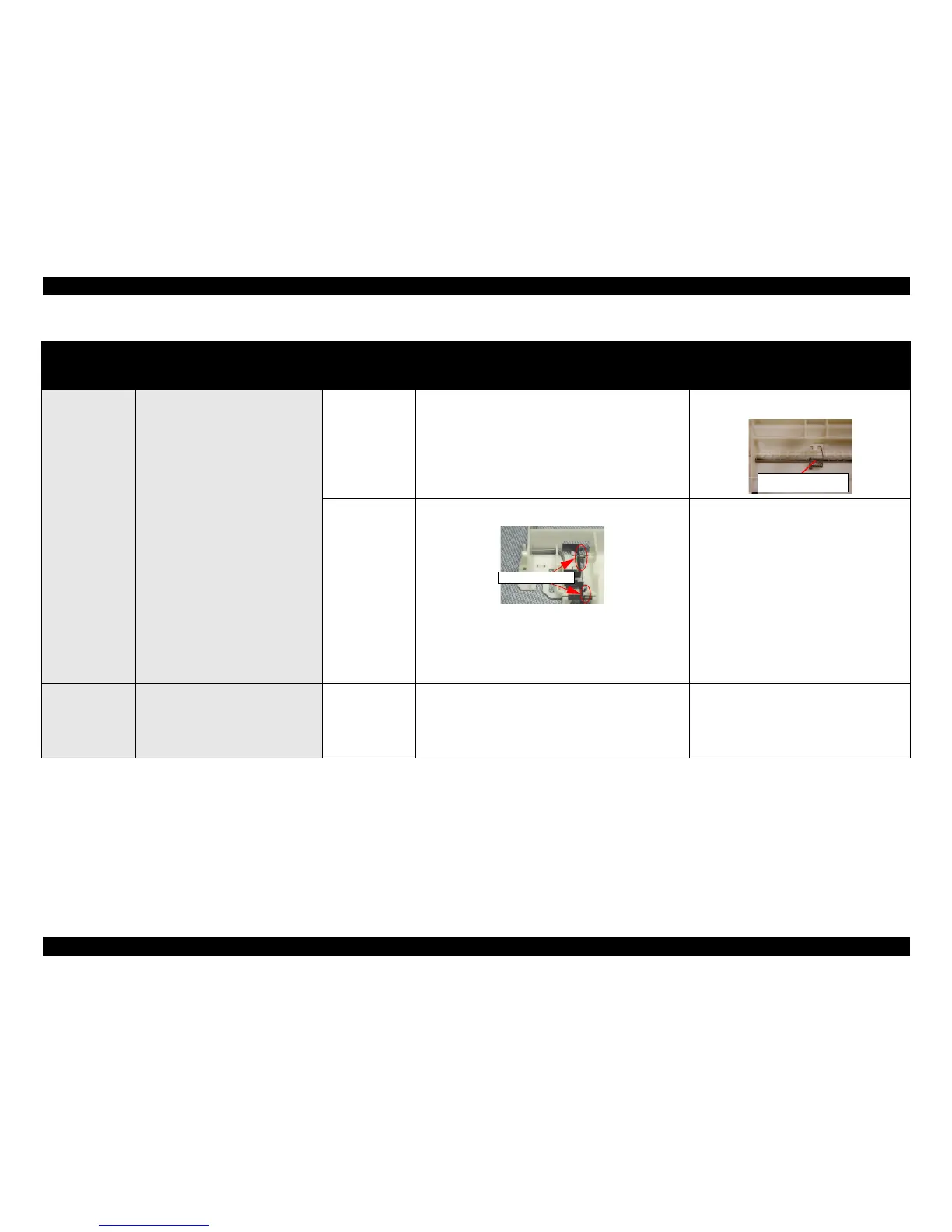

Table 3-7. Check point for the paper jam error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
Torsion spring 29.1
Torsion sprig 0.22

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
