1.5.2.2 Printable Area
The print head consists of 8 print solenoids (A, B, C, D, E, F, G, and H) arranged in a horizontal
line. The print head moves from the left (from the standby position) to the right, printing at 30
positions as each print solenoid is energized, so that one dot line is formed. The total number of
dots per dot line is 240 (30 positions
×
8 solenoids).

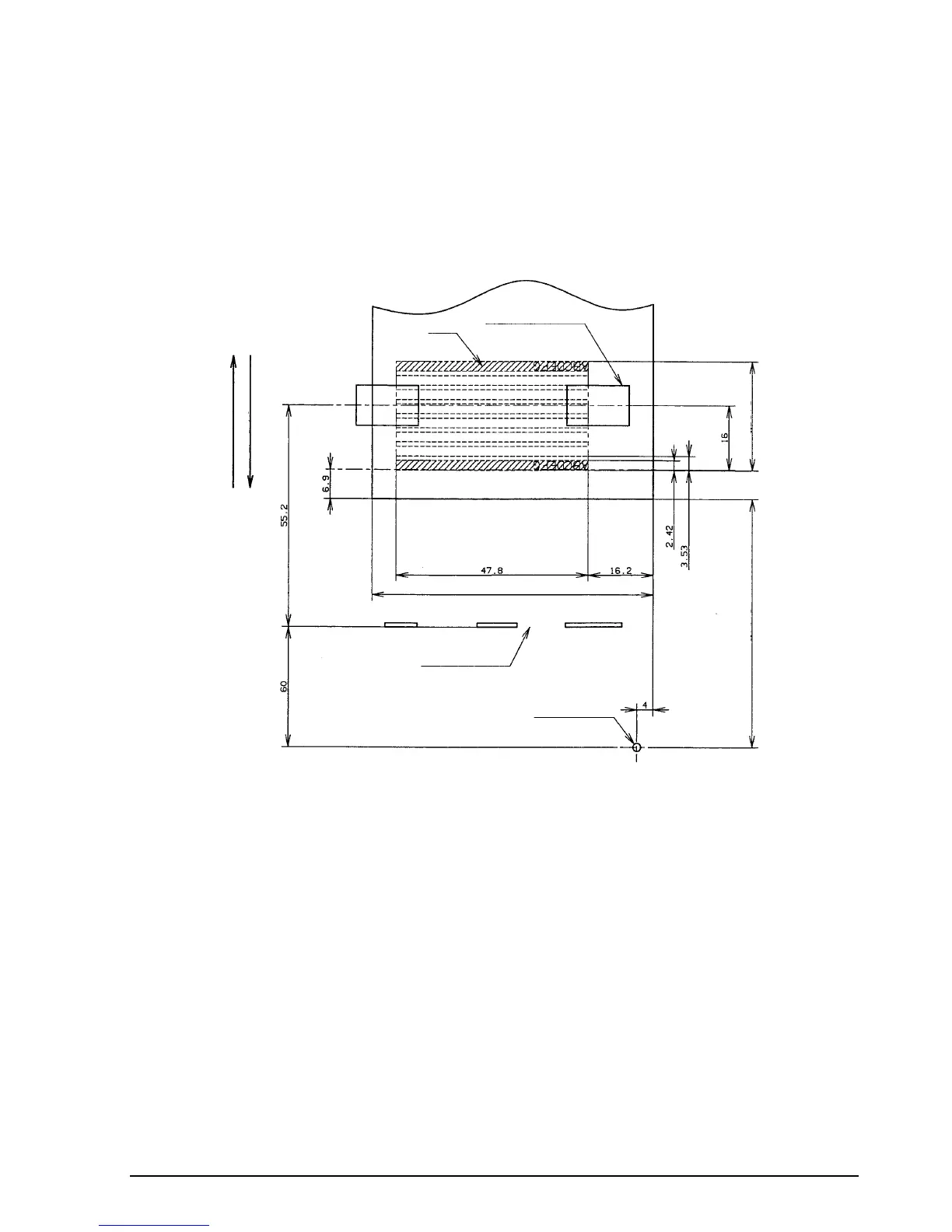

E/P printable area (for endorsement printing)
1.5.2.3 Ribbon Cassette
Exclusive ribbon cassette for E/P
Type: ERC-41 (P)
Color: Purple
Ribbon life:
1,000,000 characters (at 25 °C (77 °F), continuous printing)
BOF sensor position
Form sto
pp
er
p
osition
MIN. 70
Forward paper feed direction
Reverse paper feed direction
Endorsement printing
Slip paper feeding
roller
p
osition
A
pp
rox. 92.3
(
523 ste
p
s
)
(
20 ste
p
s
)
A
pp
rox. 26.8
(
152 ste
p
s
)
