1.5.4.4 Printable Area
The printable area of a paper roll with a width of 79.5
±
0.5 mm (3.13"
±
0.02") is 72.2
±
0.2 mm
(2.84"
±
0.008") (512 dots), and the space on the right and left sides are approximately 3.7
±
2mm (0.15"
±
0.079").

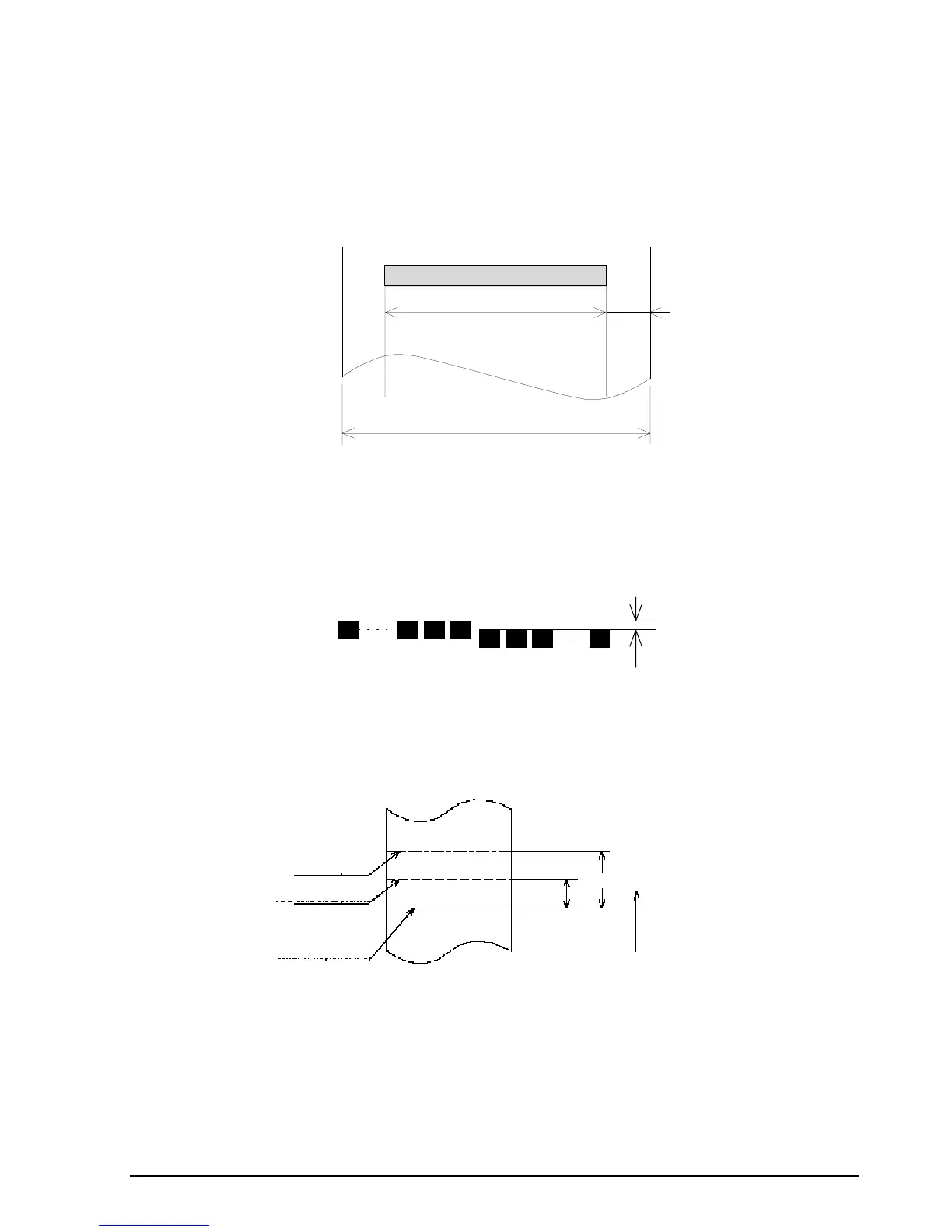

Printable area for paper roll
NOTE:The print position in the printable area of thermal elements for dots 257 to 512 is shifted approximately 0.07 mm
(.003”) in the paper feed direction from the position for dots 1 to 256. Be sure not to print a ladder bar code
across both printable areas, as this can cause variations in printing that are difficult to read.
Shifting of the print position
1.5.4.5 Printing and Cutting Positions
Printing and cutting positions
NOTE:Numeric values used here are typical values; the values may vary slightly as a result of paper slack or
variations in the paper. Take this into account when setting the cutting position of the autocutter.
79.5 ± 0.5
3.7±2
72.2
