Epson TM-S1000 Technical Reference Guide

34

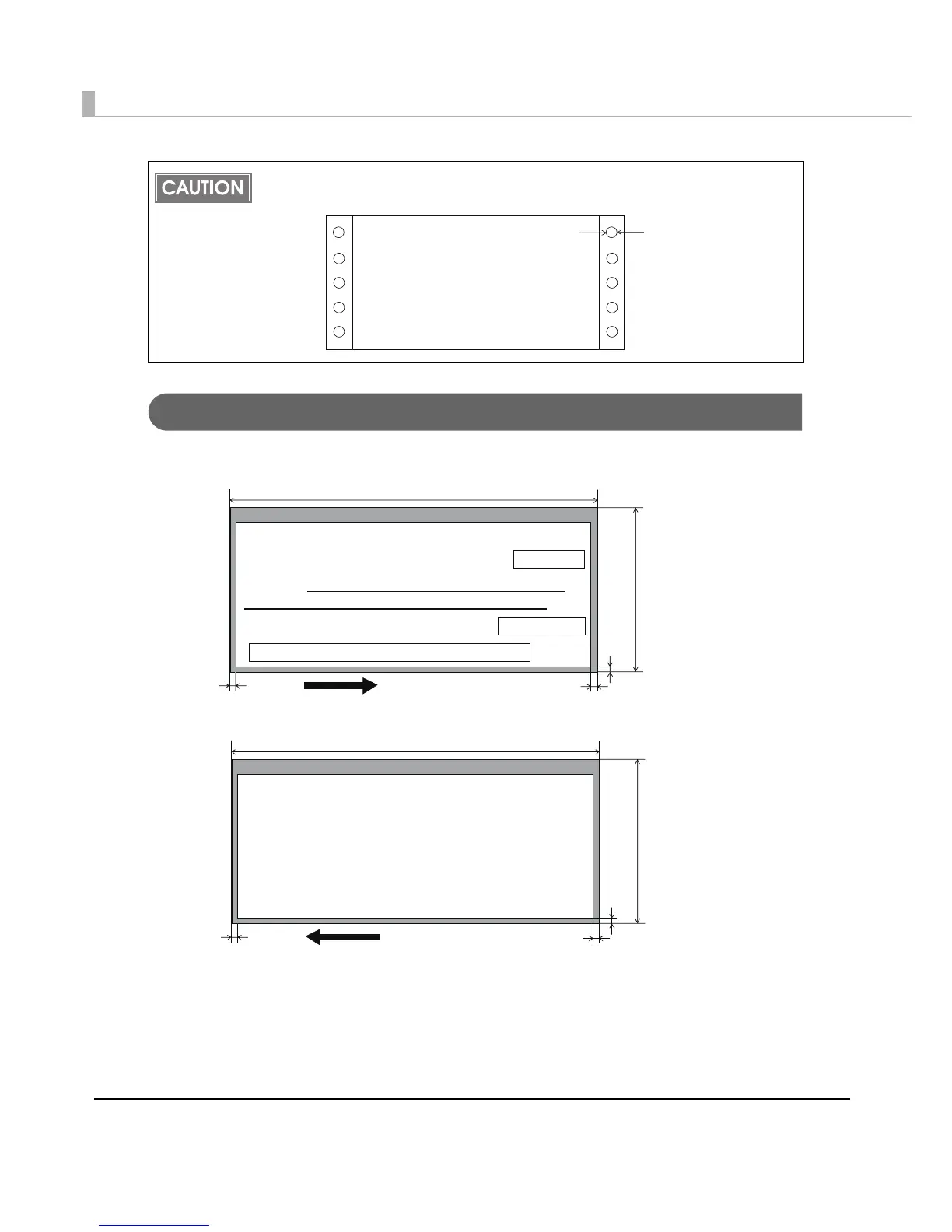

Scannable Area
Image scanning may not be possible in the area a, b, and c in the figures below.
• The paper sensors ignore the range indicated in the figure below for the guide holes in
fan-folded paper.
Diameter: 6 mm or less
$
No. 12345
pay to
the order of
Dollars
MICR character
Image height: Max.102.6
Image length: Max.269.5
c=3.0
a=10.0b=10.0
Paper inserting direction
[Units: mm]
Image length: Max.269.5
Image height: Max.102.6
c=3.0
a=10.0
Paper inserting direction
b=10.0
Note: Values are typical.
<
Front>
<Back>

Epson TM-S1000 Specifications

General

Film scanning	No
Grayscale levels	256
Input color depth	- bit
Maximum scan size	120 x 235 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
Scan media weight	60 - 120 g/m²
Dimensions (WxDxH)	160 x 355 x 176 mm
Standard media sizes	Length: 120 mm - 235 mm (approx 4.8 in - 9 in), Height: 68mm - 120 mm (approx 2.7 in - 4.8 in), Thickness: 0.075 x 0.2 mm (approx 0.003 in - 0.008 in), Weight: 60 - 120 g/m2 (approx 16lb - 32lb)

Weight and Dimensions

Depth	355 mm
Width	160 mm
Height	176 mm
Weight	4000 g
