Epson TM-S1000 Technical Reference Guide

Chapter 1 Handling
51
4
Processing Documents
The TM-S1000 is capable of performing the following four actions on a document in a single
pass: scanning the image of both the face and the back, reading magnetic characters, and
franking.

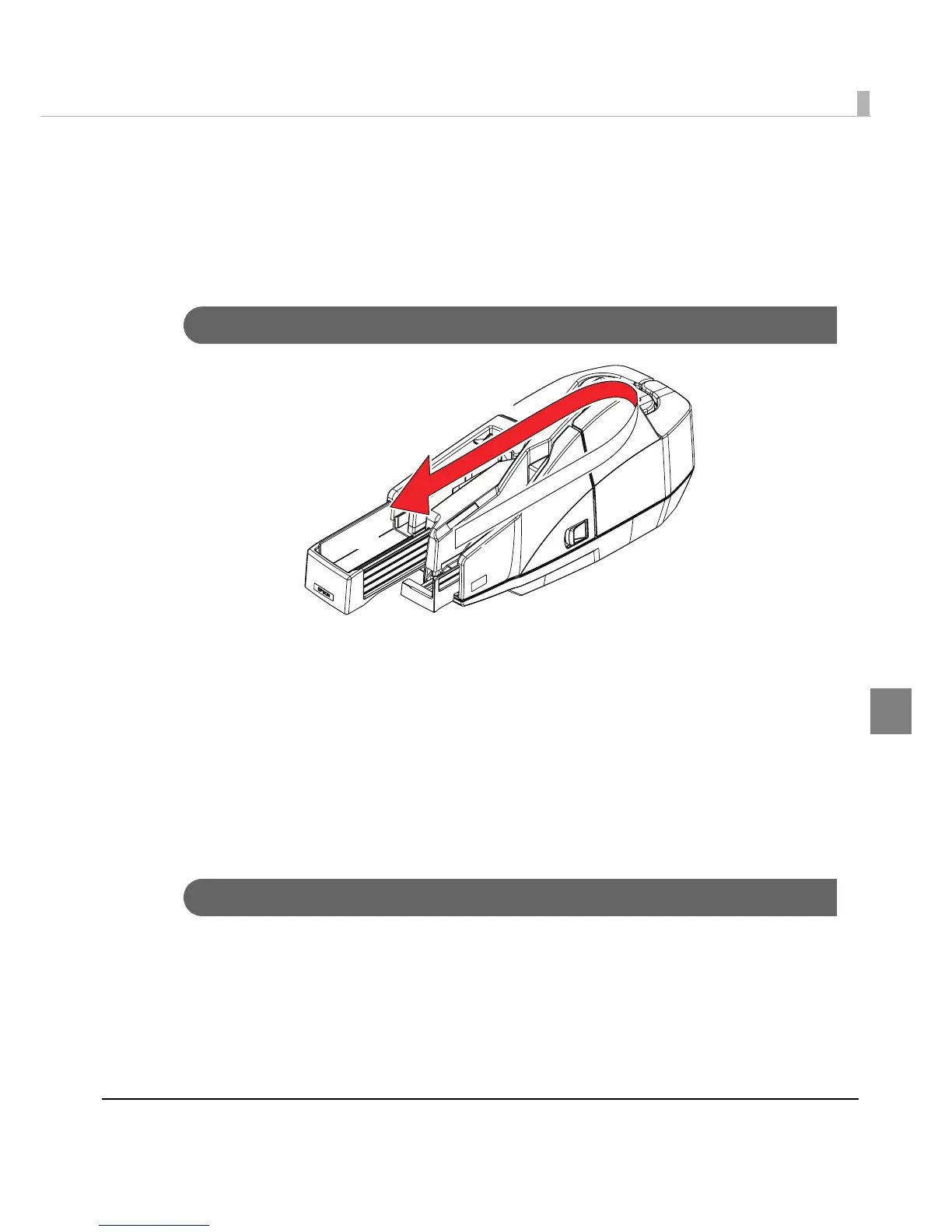

Flow of Single Pass Processing
1
Insert a document into the feeder section. (See "Inserting Checks" on page 52.)
2
The scanner scans the images of the face and back.
3
The scanner reads the magnetic characters on the document.
4
The franking section prints a pattern.
5
The document is fed to the outlet. (See "Ejecting Checks" on page 54.)
Important Notes on Processing Documents
• Use paper that meets the scanner specification. (See "Paper Specifications" on page 33.)
•Do not use copy paper or other multi-ply paper.
•Make sure that the documents have no curl, bending (especially on the corners), warpage, or
wrinkles.
•Do not use checks with paper clips, staples, adhesive tape, or other foreign materials attached.
•Do not open the covers while processing is in progress.
3
4
5
1
2

Epson TM-S1000 Specifications

General

Film scanning	No
Grayscale levels	256
Input color depth	- bit
Maximum scan size	120 x 235 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
Scan media weight	60 - 120 g/m²
Dimensions (WxDxH)	160 x 355 x 176 mm
Standard media sizes	Length: 120 mm - 235 mm (approx 4.8 in - 9 in), Height: 68mm - 120 mm (approx 2.7 in - 4.8 in), Thickness: 0.075 x 0.2 mm (approx 0.003 in - 0.008 in), Weight: 60 - 120 g/m2 (approx 16lb - 32lb)

Weight and Dimensions

Depth	355 mm
Width	160 mm
Height	176 mm
Weight	4000 g
