Epson TM-T82X Technical Reference Guide

23
Chapter 2 Setup
Connecting the Cash Drawer
Cash Drawer Requirements
Specifications of drawers differ depending on makers or models. When you use a drawer other than specified,
make sure its specification meets the following conditions.
Otherwise, devices may be damaged.
• The load, such as a drawer kick solenoid, must be connected between pins 4 and 2 or pins 4 and 5 of the
drawer kick connector.
• When the drawer open/close signal is used, a switch must be provided between drawer kick connector pins 3
and 6.
• The resistance of the load, such as a drawer kick solenoid, must be 24 ohms or more or the input current
must be 1A or less.
• Be sure to use the 24V power output on drawer kick connector pin 4 for driving the equipment.

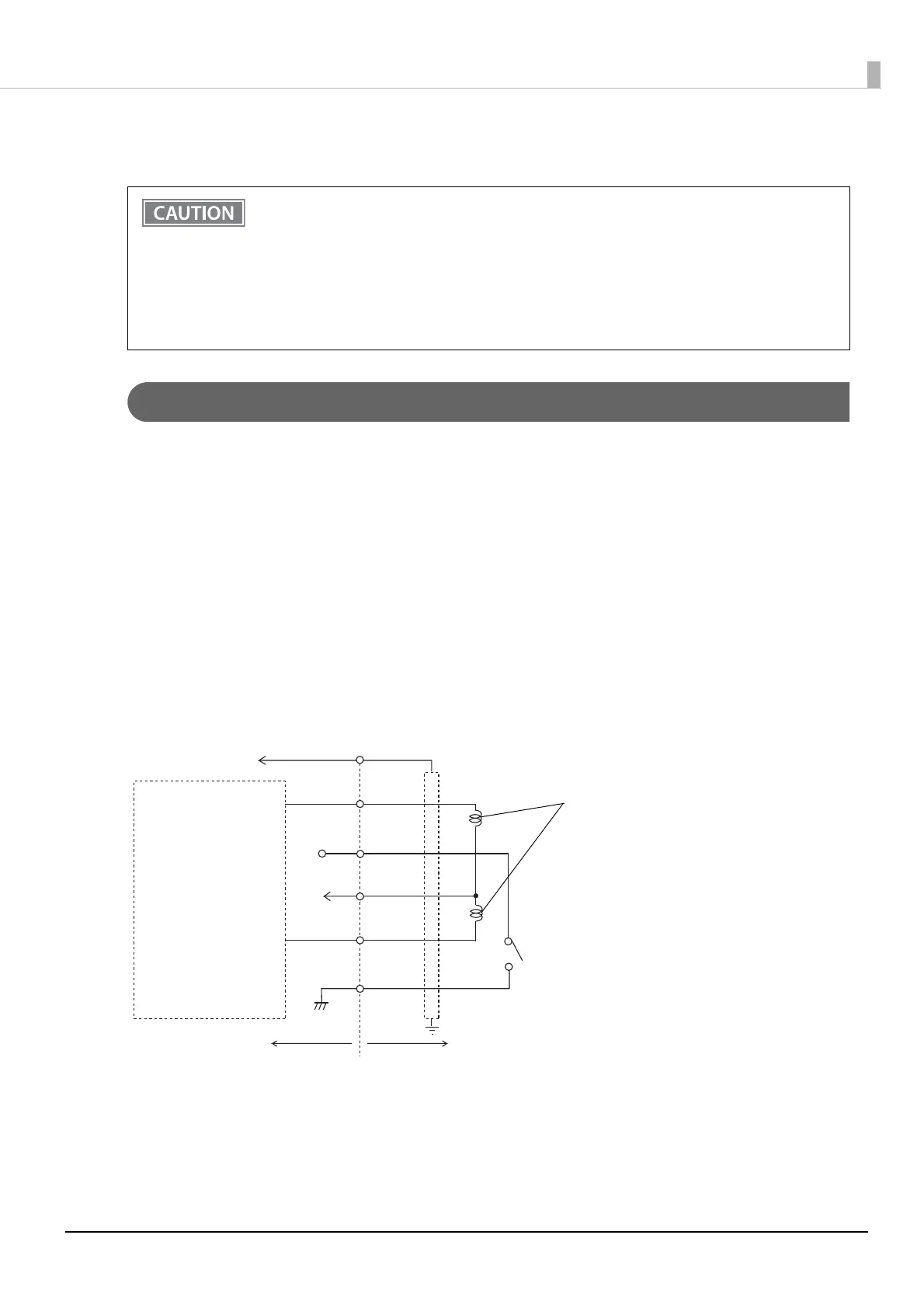

Drawer Connection Diagram
Adaptable Connector
Modular connector RJ12
• The optional external buzzer and the cash drawer cannot be used simultaneously. Do not
connect both the optional external buzzer and the cash drawer to the printer at the same time
by using a branched connector.
• The cash drawer cannot be used If the enable/disable setting for the optional external buzzer is
set to “enable”. When using the cash drawer, be sure to set it to “disable” using the Epson TM-
T82X Utility.
• Two driver transistors cannot be energized simultaneously.
• Leave intervals longer than 4 times the drawer driving pulse when sending it continuously.
F.G
+24V
With shielded
Drawer kick connector
Printer side
User side [Drawer kick side]
Drawer open/ close switch
Drawer kick solenoid
1
2
3
4
5
6

Epson TM-T82X Specifications

General

Print Method	Thermal line printing
Paper Width	80 mm
Autocutter	Yes
Power Supply	AC 100-240V, 50/60 Hz
Paper Roll Diameter	83 mm
Interface	USB, Ethernet
Dimensions	140 x 199 x 146 mm
Resolution	203 dpi x 203 dpi
