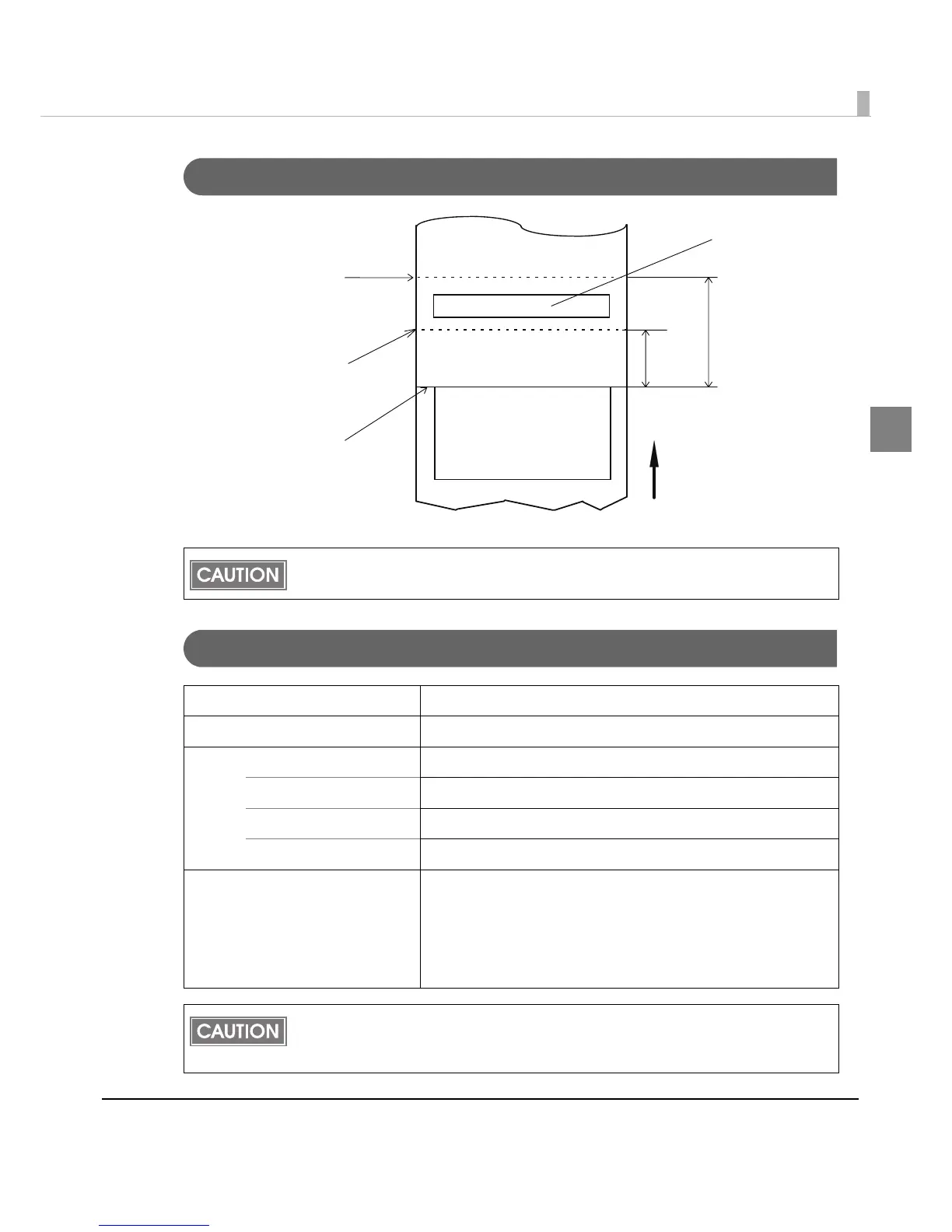

Printing and Cutting Positions
Paper Specifications
The values above may vary slightly as a result of paper slack or variations in the paper.
Take the notice into account when setting the cutting position of the autocutter.
Paper type Specified thermal paper
Form Roll paper
Size Roll paper diameter 83 mm {3.27"} maximum
Roll paper spool Inside: 12 mm {0.47"}, Outside: 18 mm {0.71"}
Take-up roll paper width 80 + 0.5/-1.0 mm
Paper width 79.5 ± 0.5 mm
Specified roll paper type NTP080-80
In U.S.A.: Nakagawa Mfg. (USA) Inc.
In Europe: Nakagawa Mfg. (Europe) GmbH
In Southeast Asia: N.A.K. Mfg. (Malaysia) SDN BHD
(Original paper: TF50KS-E Nippon Paper Industries Co., Ltd.Åj
• Paper must not be pasted to the roll paper spool.
• The remaining amount of the roll paper when a roll paper near-end is detected differs
depending on the spool type.
Autocutter blade position
Approx. 29
Approx. 15
Manual-cutter position
Center of the print dotline
[units: mm (All the numeric values are typical.)]
Paper feed direction
Printable area
Last line of
a previous receipt
